• Two-vessel Brewhouse

Two-vessel Brewhouse
Two-vessel brewhouse Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle but is equipped with a tangential fitting for whirlpooling.
Tel: +8618660395833
E-mail:info@tonsenbrew.com
Contact us

- Product Description -

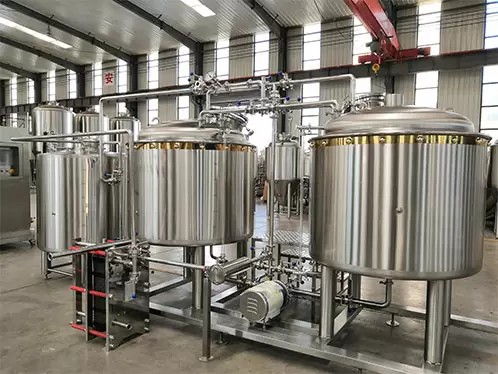

A typical two-vessel:

Mash and Lauter
Brew Kettle & Whirlpool
Hot liquor tank
Plate heat exchanger
Platform
Pump
Wort aeration
Wort thermometer
Wort Grant
Titanium stick
Yeast dosing tank
Hops filter

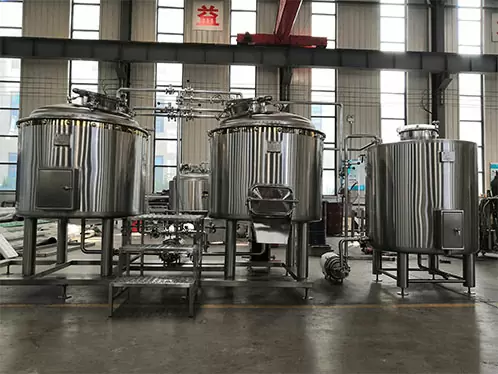

Two-vessel Brewhouse1.jpg

Two-vessel brewhouse Combination Mash Lauter Tuns are the first combination vessel in these smaller brewhouses line ups. This vessel should be sized to favor the Lauter operation, and have the mechanics for mixing mash and graining out.
Next inline is the combination of the Kettle and Whirlpool tanks. This combination vessel is designed and sized for being primarily a kettle but is equipped with a tangential fitting for whirlpooling.


Tonsen Brewhouse System

Heating Methods: Electric, Steam, Gas fired
Vessels: 2/3/4/5 Vessels;
Regular: MLT+BKW+HLT


Plate Heat Exchanger
Motor: CE/UL Listed
Pumps: CE/UL Listed


Oxygenator
Working Platform
Brewhouse Pipelines and Valves


Optional:
Grist Case
Wort Buffer Tank
Hop Back
Platform with Sink
Flowmeter

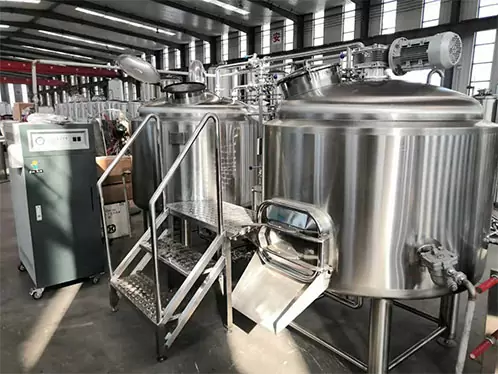

Two-vessel Brewhouse2.jpg


Specification


Brewery Equipment RequestComponents
Milling systemMalt Miller
Brewhouse SystemMash/Lauter/Boiler/Whirlpool Tank/Hot water tank
Wort pump
Heat exchanger
Steam boiler (optional)
Platform and Other accessories are matched
Fermenting systemFermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers
Cooling systemChiller and Glycol water tank (Ice water tank, cold water tank)
CIP SystemSterilization tank & Alkali liquor tank & CIP pump
Control systemPID or PLC (SIEMENS program) as option
Packing systemBottling/canning/kegging machine
Trade TermEXW, FOB, CRF, CIF
Payment TermT/T in advance
Output/Brew5HL8HL10HL15HL20HL25HL30HL35HL50HL
Brew/Week2~6
Output/Week10~30HL16~48HL20~60HL30~90HL40~120HL150~300HL180~360HL210~420HL240~360HL
Area Request<45㎡<60㎡<70㎡<90㎡<120㎡<140㎡<150㎡<180㎡<150㎡
Brew master111-21-22-32-33-53-53-5
MaterialInterior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper
HeatingElectric/Steam/Direct fire for optional
Voltage3 phase/380(220, 415,440...)v/50 (60)Hz

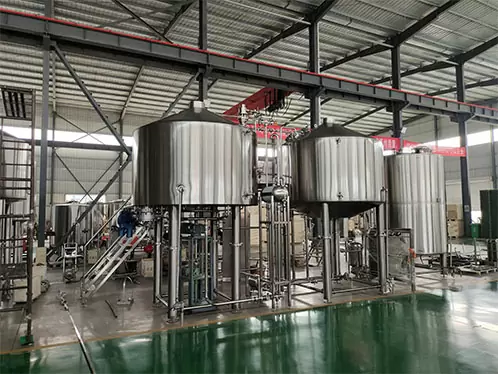

Two-vessel Brewhouse3.jpg
