Craft Beer Equipment – Complete Brewing Solutions for Small and Medium Breweries

Core Features of Our Craft Brewery Equipment

• Modular brewhouse systems: Available in 100L–5000L sizes, with 2/3/4-vessel configurations

• Fermentation tanks: Cylindroconical fermenters with glycol jackets, PRVs, CIP spray balls

• Brite beer tanks: Carbonation-ready, with sampling valves and pressure gauges

• Cooling systems: Chillers, glycol loops, and insulated pipelines for fermentation temperature control

• CIP unit: Integrated cleaning system with acid/alkali tanks and circulation pump

• Control panel: Semi-automatic or PLC touch screen for brewhouse and fermentation

All components are made from food-grade SUS304 stainless steel, polished to sanitary finish, and welded with argon protection.

FAQ – Craft Brewing System

Q: Can I customize the size and layout?
A: Yes. We offer 100L–5000L systems, and custom brewhouse design based on your space and output goals.

Q: Do you offer CE or UL certification?
A: All systems can be certified to CE, UL, CSA, and ISO standards as required.

Q: How long is production?
A: 25–45 working days depending on size and configuration.

Q: Can this system support canning or kegging?
A: Yes. Output tanks are compatible with filling machines, and we offer turnkey packaging solutions.

What’s Included

• Brewhouse (2–4 vessels depending on size)

• Fermentation unit (fermenters & brite tanks with fittings)

• Cooling system (chiller, buffer tank, glycol piping)

• Control cabinet (PLC or semi-automatic)

• CIP cleaning unit

• All pipes, pumps, valves, clamps, platform

Customized system layouts, colors, voltage options, and branding (OEM/ODM) are also available.

1.Milling System

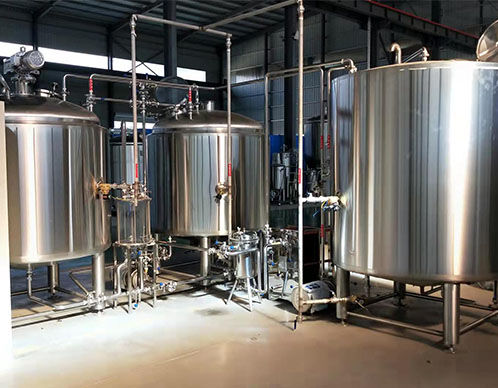

2.Brewhouse System

Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT

Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed

Oxygenator

Working Platform

Brewhouse Pipelines and Valves

*Optional:
Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter

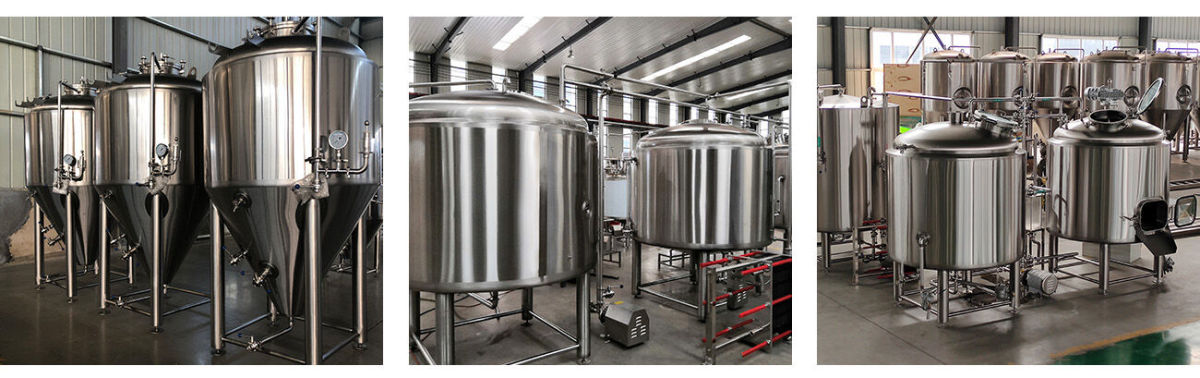

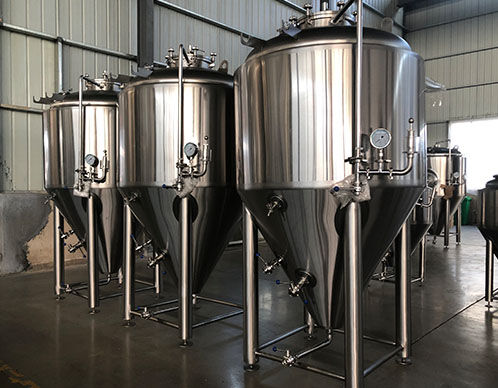

3.Fermenting system

10BBL or 20BBL Fermenters

Cooling Jacketed Conical

Insulated PU 80~ 100mm

Working Pressure: 0.15-0.2Mpa

*Optional
Carbonation Stone

Level meter

Side Manway

Red copper Layer

Dry Hop Dose Device

Others

4.Beer Bright Tank

Standard stainless steel tank for beer maturation and serving.

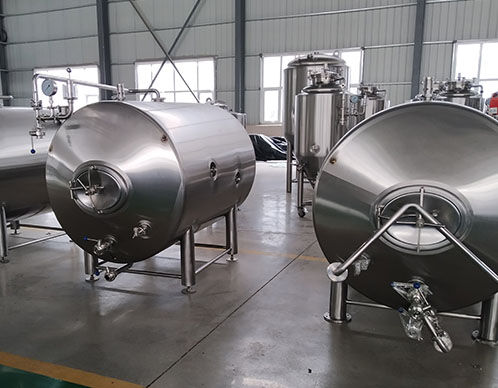

Single layer type, Horizontal type, stacked type are available.
Our Brite Tank available from 1HL to 100HL with an average 10% Head Space. All tank have a Dish top & bottom, Cylinder body. Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.  All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.

We can custom fabricate any tank to meet your brewery’s space and height restrictions.

Standard Features:

•   Dish Cover at top & bottom, with an average of 10% head space

•   Dimple plate jacket for glycol cooling

•   Interior shell: 304 stainless steel, thickness 3mm /11 gauge

•   Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge

•   Exterior shell: 304 stainless steel, thickness 2mm /14 gauge

•   2” Polyurethane insulation

•   Interior surface to finish pickled and passivated

•   Exterior surface to brushed, #4 finish Or Interior surface to polished to RA≤0.22μm Exterior surface adapts satin polish.

•   Side manway, shadowless

•   Accessories:Sample Valve x1;Pressure relief/vacuum valve x1; Temp. sensor / thermometer x1;Carbonation Stone x1; Bottom outlet with butterfly valve x1;Spraying Ball with down tube x1;Stainless pipe legs with adjustable foot pads x4.

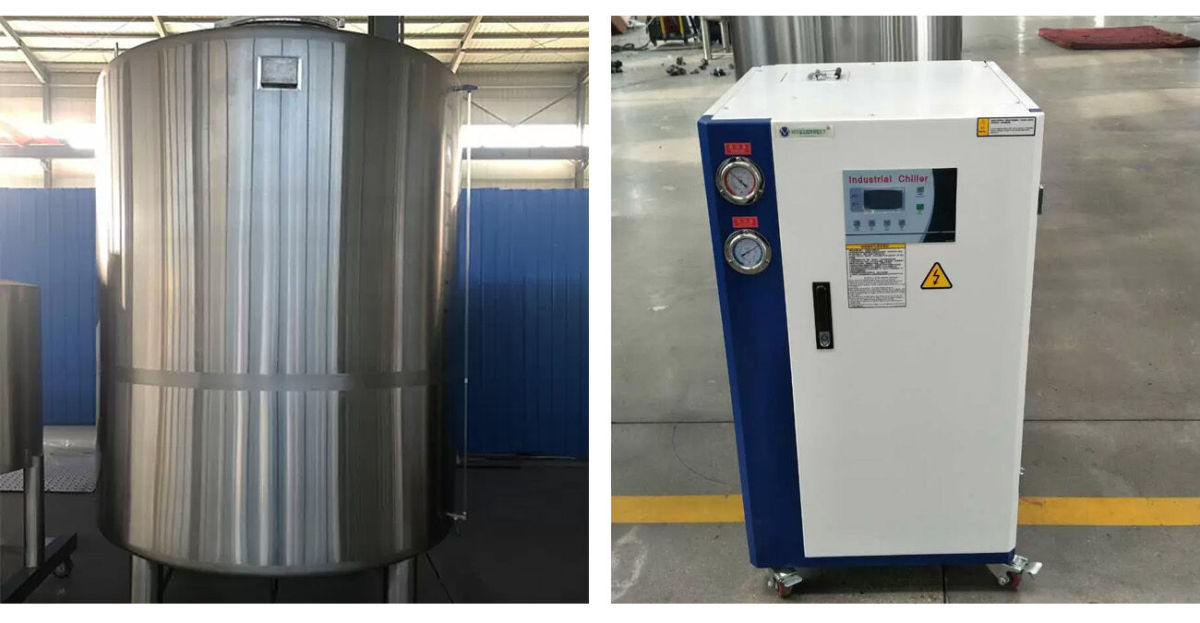

5. Cooling system

Glycol Water Tank 30BBL
Insulated with PT-100Chiller
Cooling Pump, CE/UL Listed

6.Brewery CIP Station

Alkali Tank

Sterilization Tank

Interior Finish Polish: 0.4~0.6μm

pipelines and Valves

CIP PumpCE/UL Listed

CIP Hose

*Optional
Heating Element

Controller

7.Controlling system

PID Type: Digital Display

PLC Type: With Siemens Touch Screen

Basic:

MLT Temperature Setting

BKW Temperature Setting

HLT Temperature Setting

Fermentor Temperature Setting

Gly Water Tank Temperature Setting

Pump Speed Control by VFD, DANFOSS

Agitator Speed Control by VFD, DANFOSS

*Others

Pneumatic Valves Controller

Flowmeter
