Fermentation Tanks

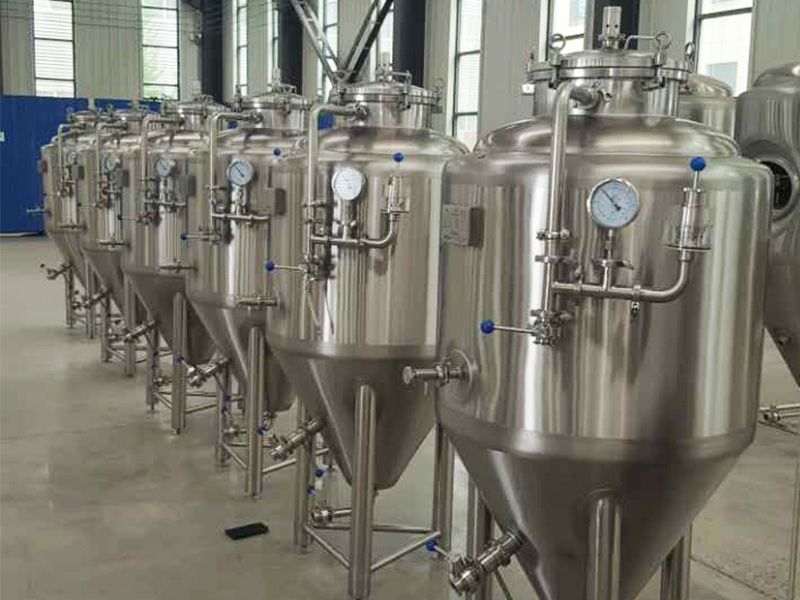

Fermenter is also called CCT (Cylindrical Conical Tank), FV (Fermentation Vessel), primary fermenter or unitank as they are used both for fermenting and storage. TONSEN stainless steel fermenter can be individually temperature controlled through glycol jackets and are fully equipped with accessories such as pressure relief valve, CIP cleaning ball, sample valve, manhole,etc Fermenting is the process during which the yeast transforms the wort into beer. Bright beer takes place after fermenting and mainly function is to make the beer more clear and store a longer time. The fermenter can be top manhole or side manhole according to different client requirement for lager or ale beer brewing.

Introduction of fermenting equipment

1. Product name: 1HL to 100HL beer fermentation tank fermentation vessel.

2. Volume: 1HL to 100HL

3. Material: SUS304 or SUS316L, as per customer's requirement

4. Thickness: 3.00-4.00mm for inner tank, 1.5mm for dimple jacket, 2.00mm for outer shell, as per customer's requirement.

5. Construction: dish top, cylinder body and 60 degree cone bottom; single-layer or jacketed.

If jacketed, it has dimple jacket and PU insulation, insulation thickness 50.00-100.00mm as per customer's requirement.

6. Polishing treatment: inner tank mirror polished, outer shell can be either mirror polished or matt polished.

7. Accessories: manway on side, yeast inlet, CIP spraying ball, CIP pipe, themowell, sample valve, spunding valve, pressure gauge, lifting ear, jacket inlet /outlet, outlet, brace for legs, adjustable feet.

Total capacity: +25% Head space minimum

Effective capacity : 200L

Material: SUS304

Exterior shell: 2mm

Interior shell: 3mm

Insulation material:PU

Insulation TH: 80mm

Top type: Dished head

Manhole Type: Top / Side

Inner cone: 60 degree

CIP ball: 360º Rotating spray ball

Temperature sense: PT100 sensor

Inner Polishing: 0.2-0.4micron

Design pressure: 0.3Mpa

Cooling type: Dimple cooling jacket

Cooling jacket inlet : NPT/thread

Cooling jacket outlet: NPT1/thread

Pressure control: Mechanical pressure relief valve

Pressure gauge,Rotating Racking arm,Sample port , Drain outlet, Dry hops port, Safety valve, Balance port etc.

*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.

Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT

Plate Heat Exchanger

Motor: CE/UL Listed
Pumps: CE/UL Listed

Oxygenator
Working Platform

Brewhouse Pipelines and Valves

Optional:
Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter

*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.

Advantage:

1. Highly Competitive Price, More Than 10 Years Production And Manufacturing Experience

2. Iso9001, Ce (2014/68 / Eu) Ped Certification

3. Strictly Quality Control, Meet The European Quality Standard, Take 3 Times Water Pressure Test During Production.

4. Accept Customized, Professional Engineers Will Provide Design Solutions For You

5.Use High-Quality 304 Stainless Steel, Ensure The Thickness Of The Material

6. Dimple Plate Cooling Jacket, Better Cooling Effect And Longer Service Life

7. Equipped With Safety Valve, Water-Sealed Pressure Valve, To Ensure The Safe Operation Of The Fermentation Tank
