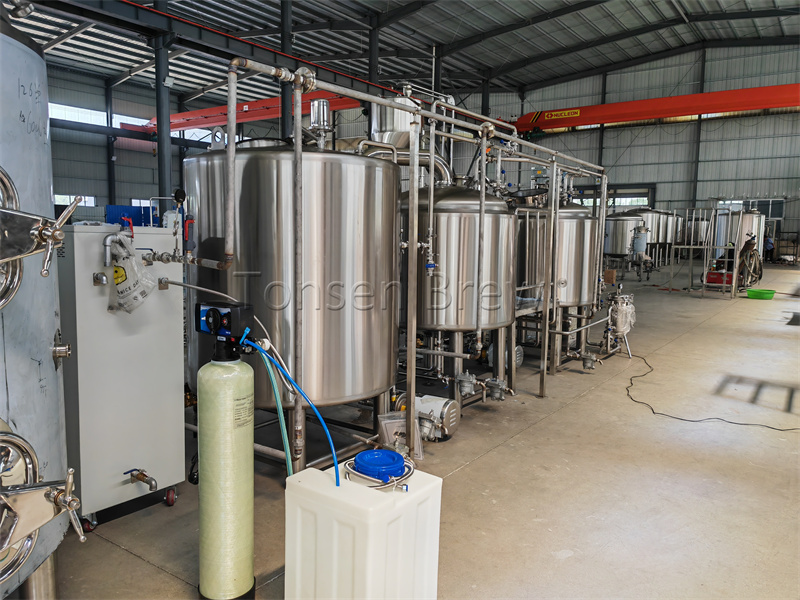

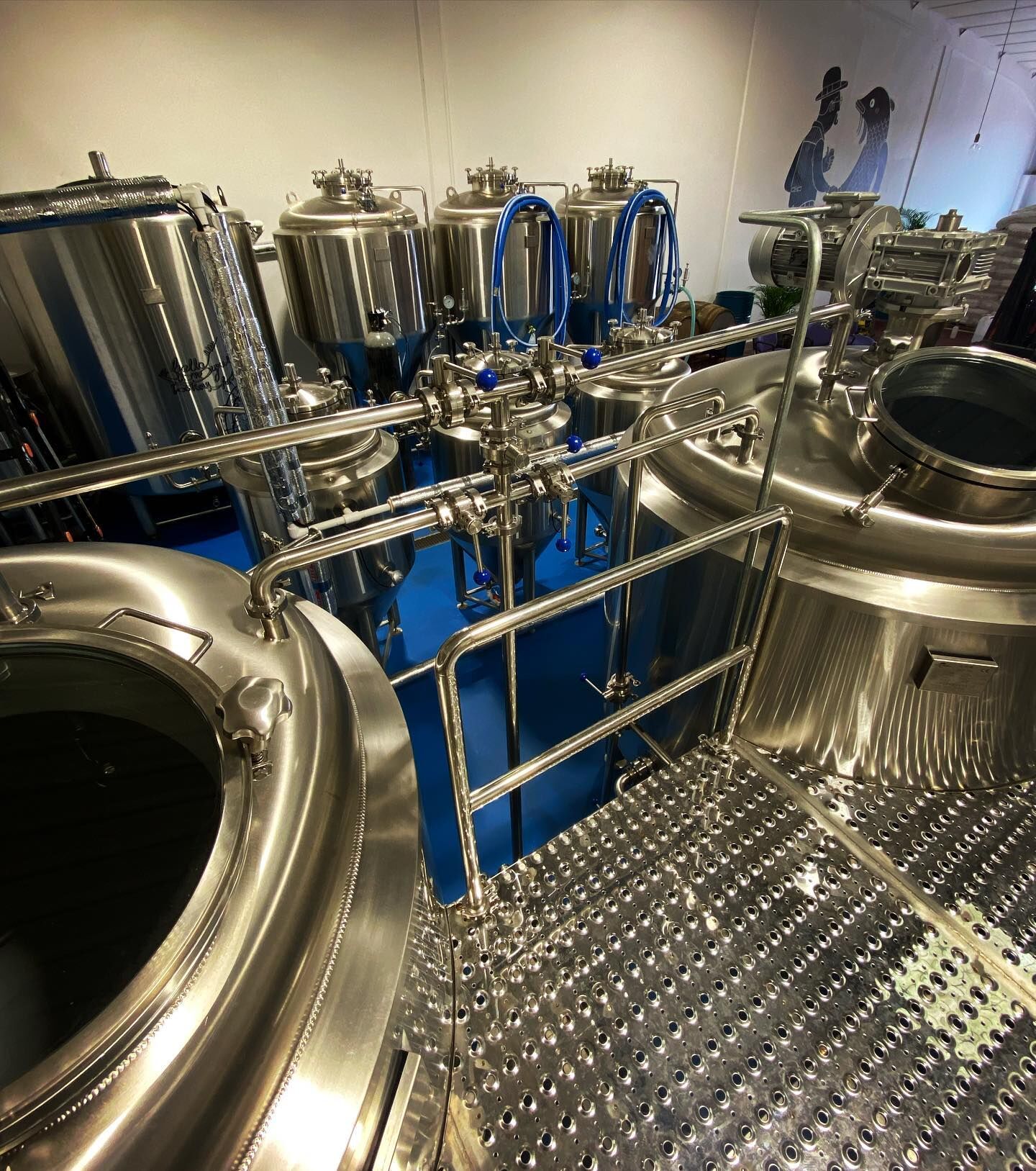

Soda water brewing equipment system

Soda water brewing equipment

This series of equipment is used in the production of gas-containing beverages, such as Cola,  , Soda Water,Kvass,Beer,Energy Drinks,etc.

Soda water production equipment consists of: water treatment system, automatic bottle blowing machine, power conveying line, cap feeding and sterilizing machine, cap cleaning machine, cap pulling machine, barrel external brushing machine, internal brushing machine, bottle washing - filling - capping A complete set of filling and packaging production lines including main machine, steam shrinking machine, inkjet printer, bucket bagging machine, palletizer, solid bottle conveying system, electrical control system, etc. Optional equipment: sleeve labeling machine, semi-automatic cap removing and barrel brushing machine, etc. Production capacity: Our company has formed a complete series of product lines, with supply capacity ranging from 100-2400 barrels/hour. Linear perfusion is generally used for speeds below 1,000 barrels/hour; rotary perfusion is generally used for speeds above 1,000 barrels/hour.

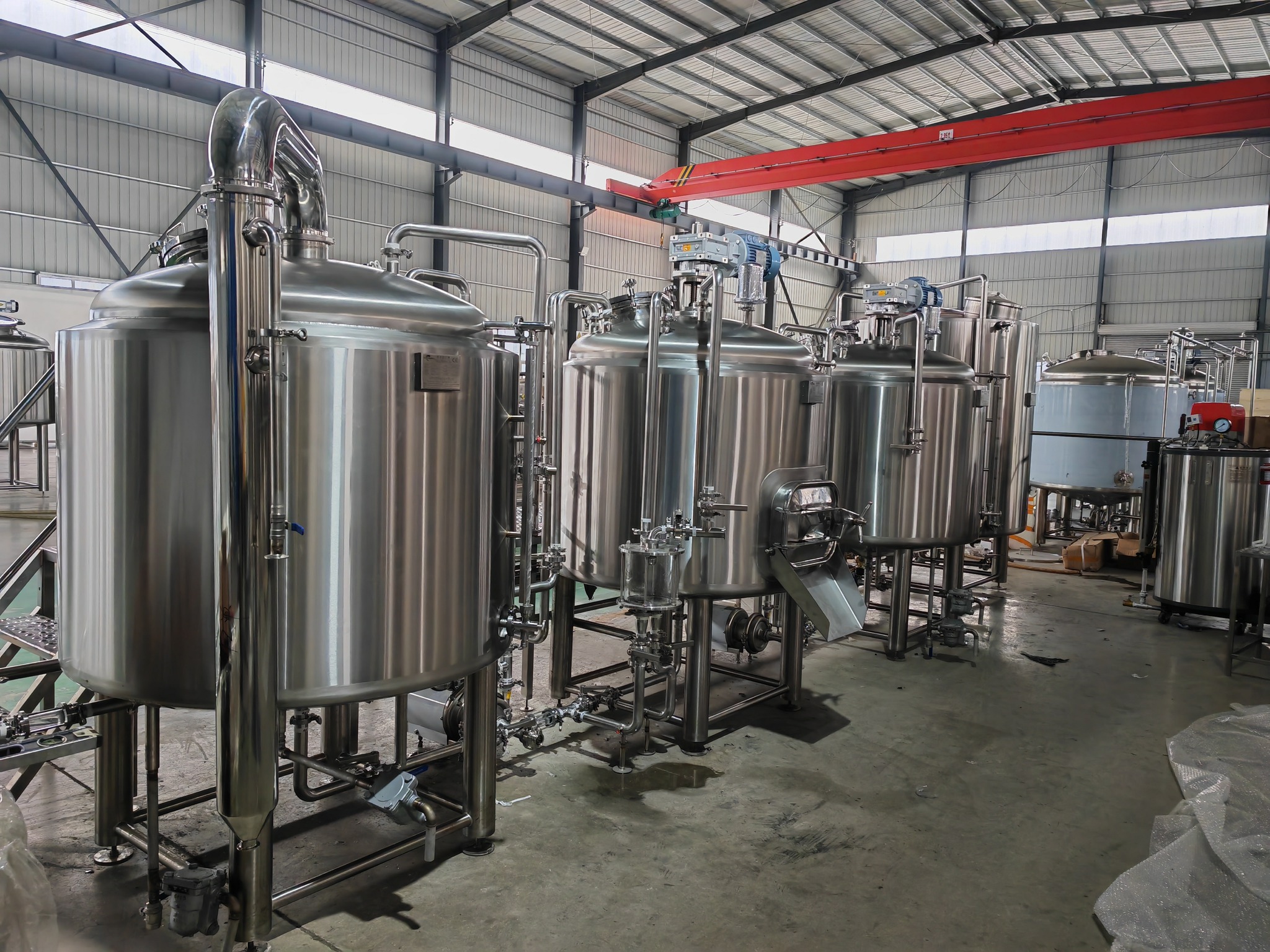

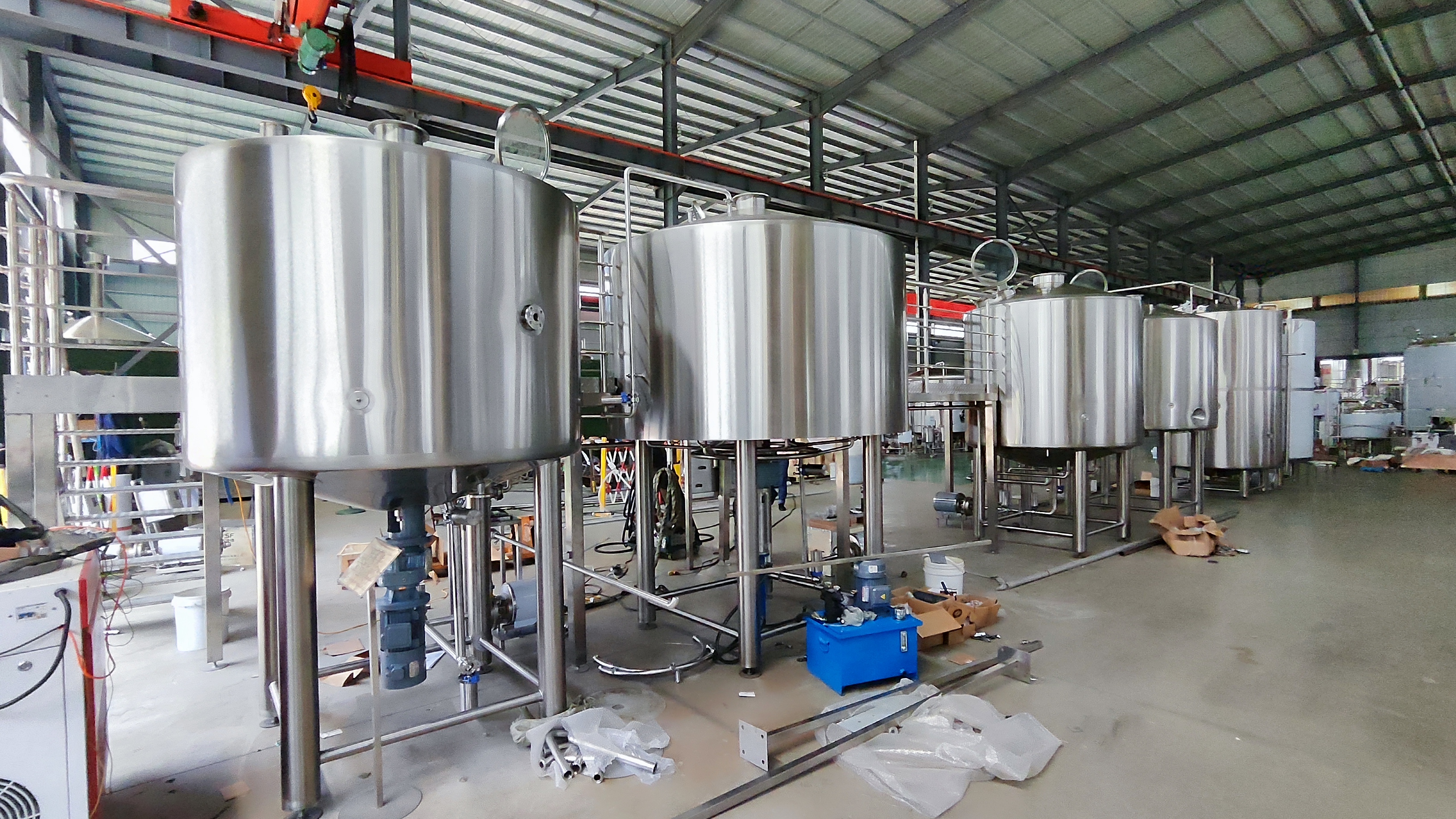

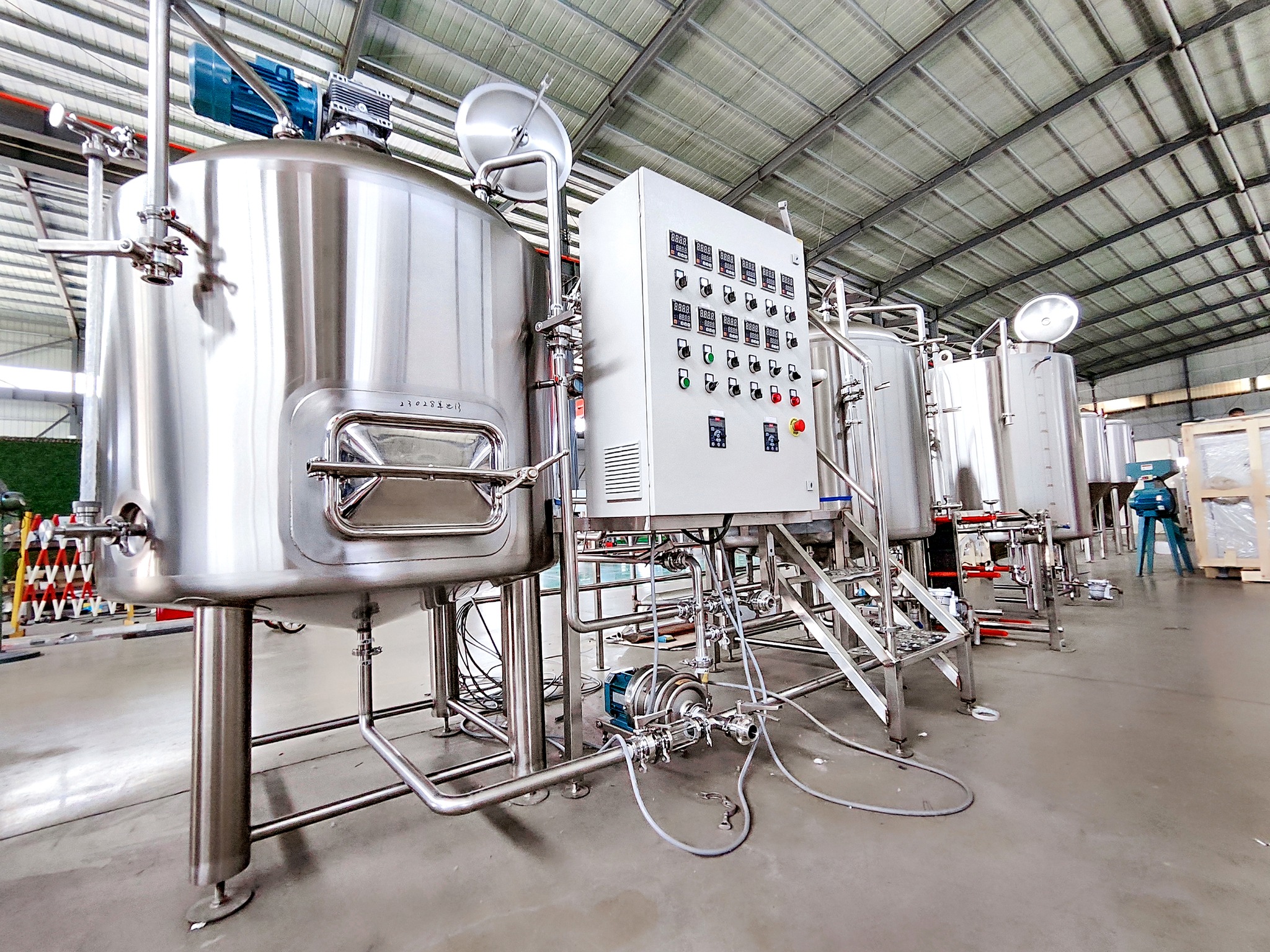

Brewhouse system

1.Effective Capacity:200~25000L;Total Capacity:Customed

2.Boundary dimension:Customed

3.Heating: electric heating way,

4.Insulation: rock wool

5.Insulation thickness:80mm

6.Interior thickness:3mm

7.Exterior thickness:2mm

8.Mechanical agitation:frequency control

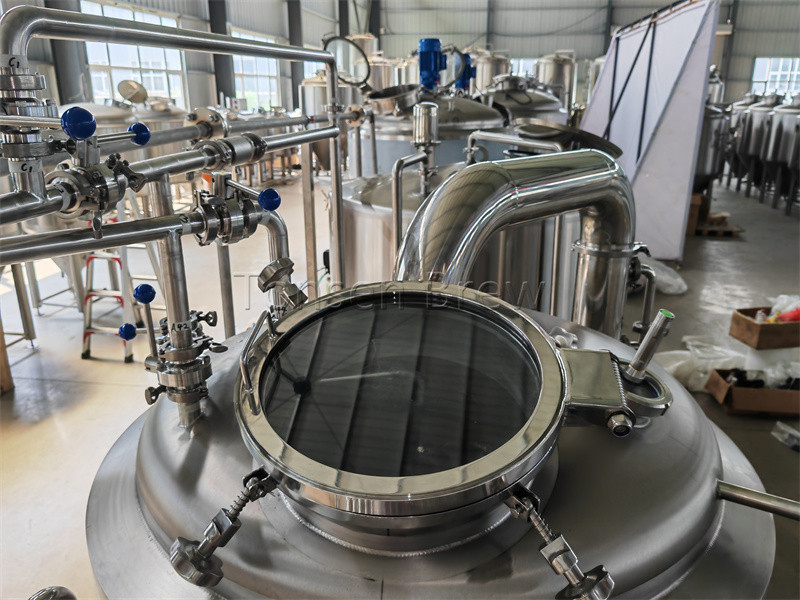

9.Dished top,Top mounted man way

10.Level gauge

11.CIP 360°rotary spray device

12.Material: SUS304,Brushed outer shell

13.Plate Surface protection, ribbon polished on welds

14.100%TIG welding with pure argon gas shield

15.4pcs completely SUS304 heavy duty legs with leveling pad

16. With all matched valves and accessories

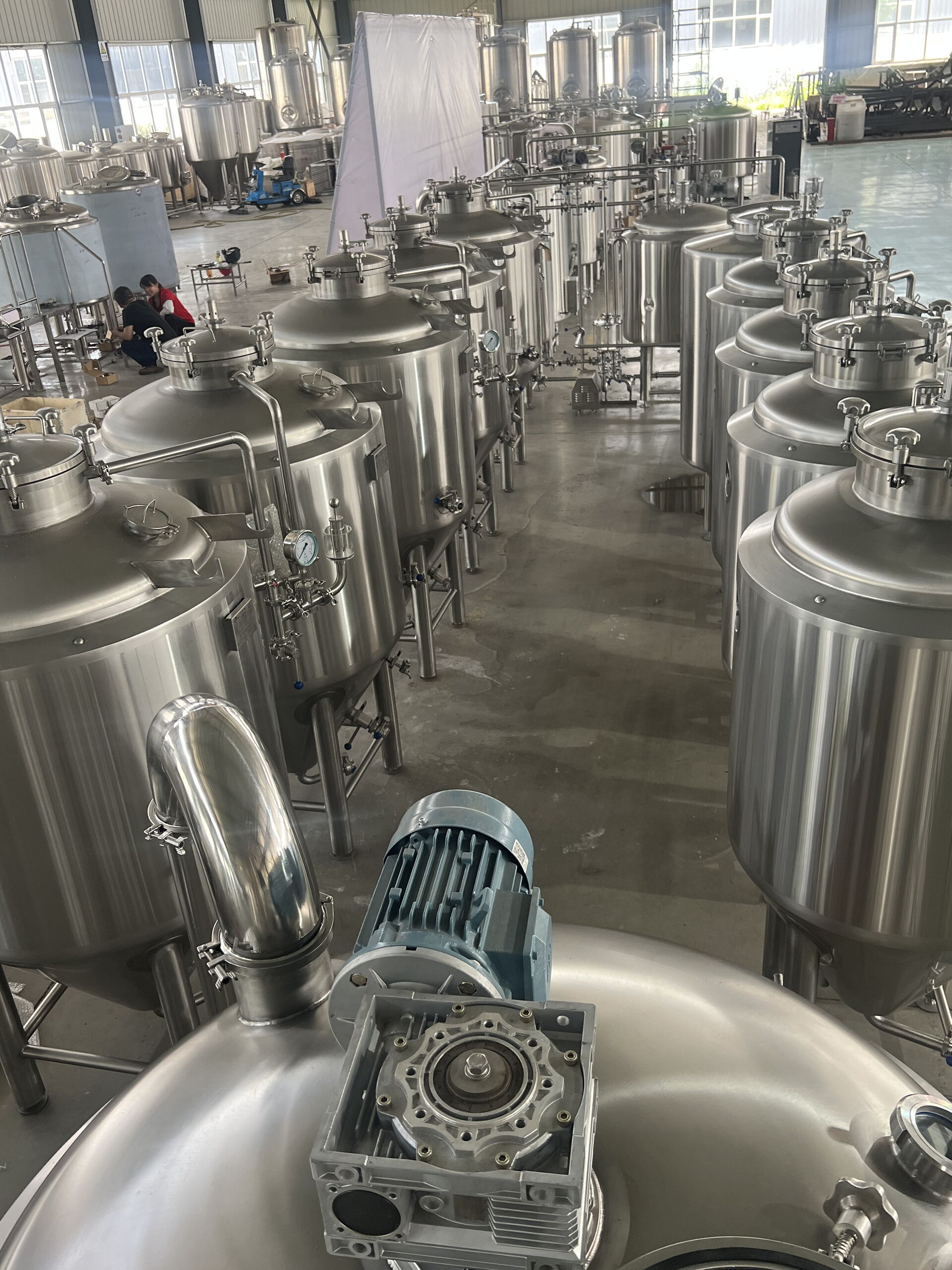

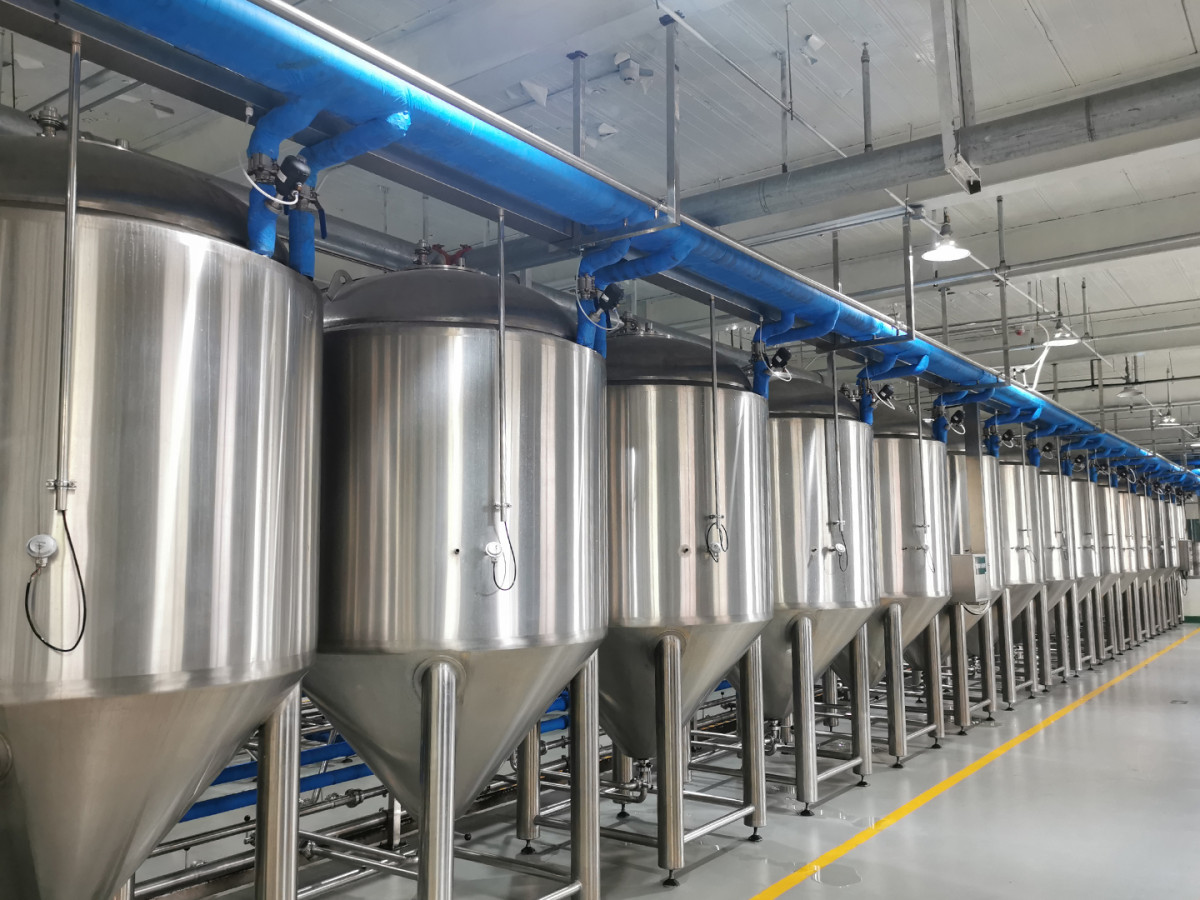

Fermentation tank

1.Effective Capacity: Customed ;Total Capacity:Customed

2.Boundary Dimension:Customed

3.Dimple plate cooling jacket,double glycol zoned jacket:1.5mm,Cooling area:5.2m²

4.Insulation:polyurethane.

5.Insulation thickness:100mm

6.Interior thickness:3mm

7.Exterior thickness:2mm

8.Dished head and taper angle 60°

9 Side man way

10.CIP 360° rotary spray device

11.Inner tank mechanical polishing and out Plate Surface protection ribbon polished on welds.

12.Double in/outlet ,

13. With carbon stone connection, 3bar working pressure.

14.With Solenoid valve,breathing valve,mechanical pressure regulating valve,sampling valve and accessories matched

15.Material: SUS304,Brushed outer shell

Bright beer tank

1.Effective Capacity:Customed; Total Capacity: Customed

2.Boundary Dimension:Customed

3.Dimple plate cooling jacket,double glycol zoned jacket:2mm,Cooling area:3.1m²

4.Insulation:polyurethane.

5.Insulation thickness:80mm

6.Interior thickness:3mm

7.Exterior thickness:2mm

8.Dished head and bottom

9 Side man way

10.CIP 360° rotary spray device

11.Inner tank mechanical polishing and out Plate Surface protection ribbon polished on welds.

12.Double in/outlet ,

13. With carbon stone connection, 3bar working pressure.

14.With Solenoid valve,breathing valve,mechanical pressure regulating valve,sampling valve and accessories matched

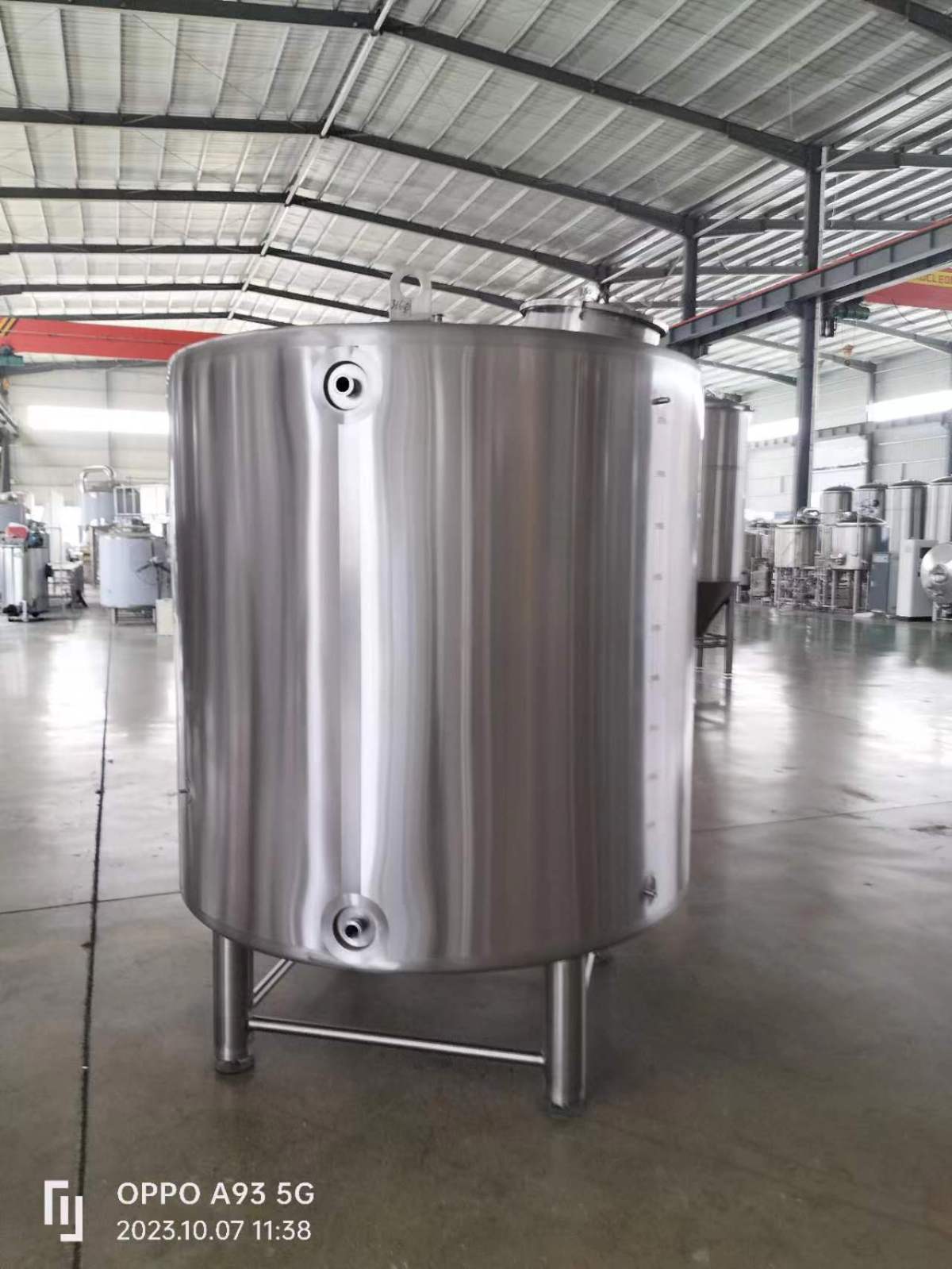

Glycol tank

1.Effective Capacity:Customed ;Total Capacity:Customed

2.Boundary dimension:Customed

3.Insulation:polyurethane ;TH=80mm

4.Interior Shell: SUS 304 full welded;TH=3mm

5.Exterior Shell: SUS 304 full welded;TH=2mm

6.Inner tank mechanical polishing and out Plate 7.Surface protection ribbon polished on welds

8.100%TIG welding with pure argon gas shield

9. Material:SUS304,Brushed outer shell

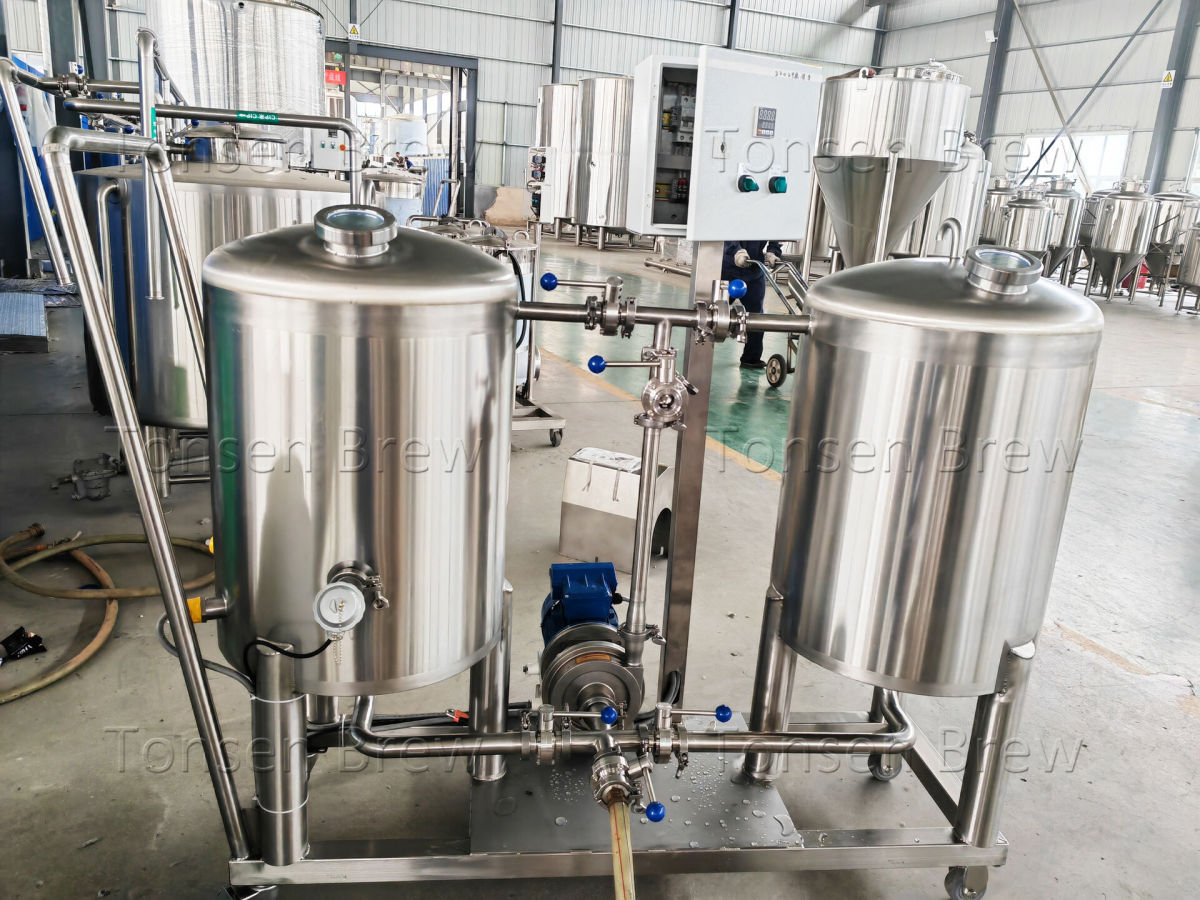

200L CIP trolley

1.Alkali tank:200L,double layer insulated, electric heat tube: 8kw,

2. Sterilization tank: 200L, single layer,

3. Washing pump: 5T/H,

4.Lid with a hinge.Outer Plate Surface protection,welding line Polished

5.Material:SUS304,Brushed outer shell

6.With valves and accessories

7.Movable, 2 universal wheels and 2 fixed wheels with breaks.

Semi-automatic Bottling Line

2-heads automatic juice filling + 8-heads semi-automatic Kombucha filling machine is the most suitable choice to fill kombucha into bottles under pressure and keep less foams.

8-heads bottle filling machine, Bottling capacity: 320pcs/h, with high quality air cylinder,304 stainless steel food grade fittings

Siemens PLC 200 smart , Kombucha Carbonation Tank Pressure: 0.15Mpa, CO2 Pressure rage: 0.14Mpa Power consumption 200W

Automatic Bottling Line

2m empty bottle feeding in conveyor + 12 heads washing + 8 heads juice filling + 12 heads kombucha filling + 1 head screw capping +

2m finished bottle feeding out conveyor

FAQ：

1. Whole system apply for local voltage: 380V, 50HZ, 3 Phases

2. Production leading time: 60 working days

3. With CE certificated, European standard

4. Provide lifetime online/remote service

5. Engineer is available for on-site installation, training, trouble shooting. To be negotiated according to the global epidemic status. Buyer will be responsible for the service cost, round trip tickets and accommodations.

6. 2D & 3D Drawing&designing available anytime you need

7. Three years' warranty for the main products, one year for fittings

8. We accept payment by: Telegraphic Transfer/Wire transfer, 50% deposit and 30% once tanks are ready, 20% pipelines & simulation ready in factory before dispatch.

9. The flow chart and layout are designed as local factory drawing, to be further discussed during further installation process.

10. Customized pipelines refered in each Phase, stands for the one which will be needed to realize system brewing process, and easy for you to move front or back locally. As discussed, flexible steam hoses and sanitary rubber tubes are neccssary to be added in the project.
