• Control System

- Product Description -

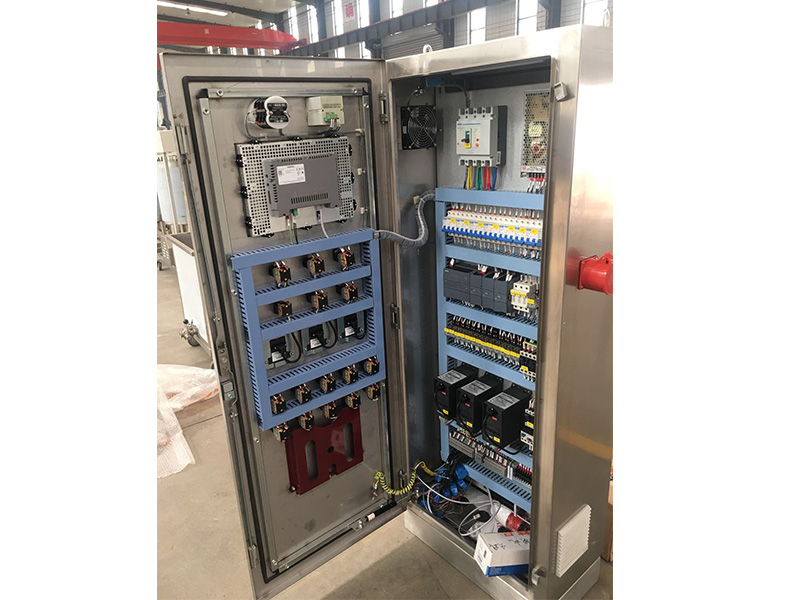

Brewery Control system (PID or PLC SIEMENS program as option)

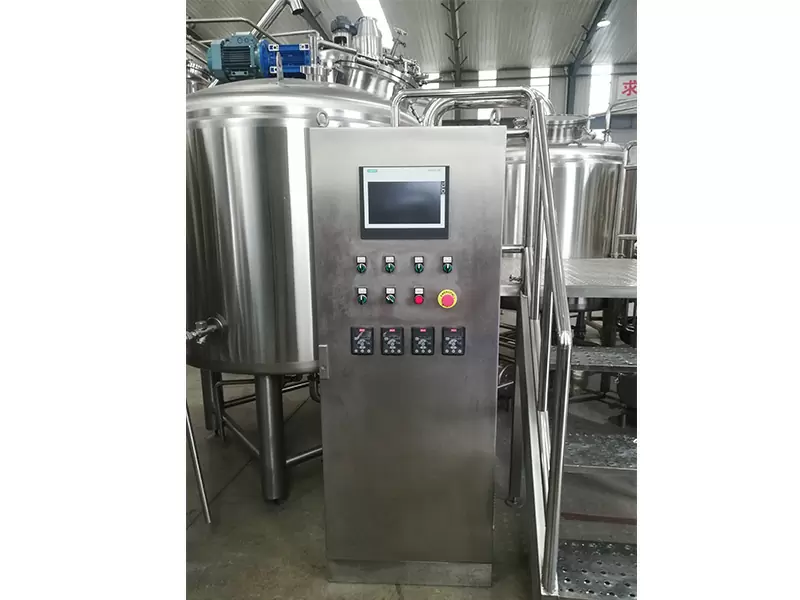

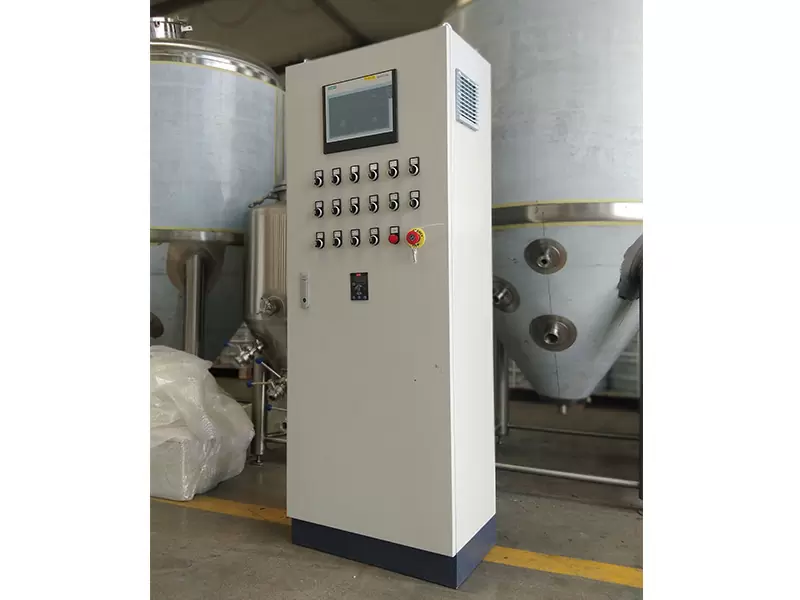

PLC Control system Function: Siemens PLC Brewery controlling

*  Cabinet Material: Anti-power Plastic painting

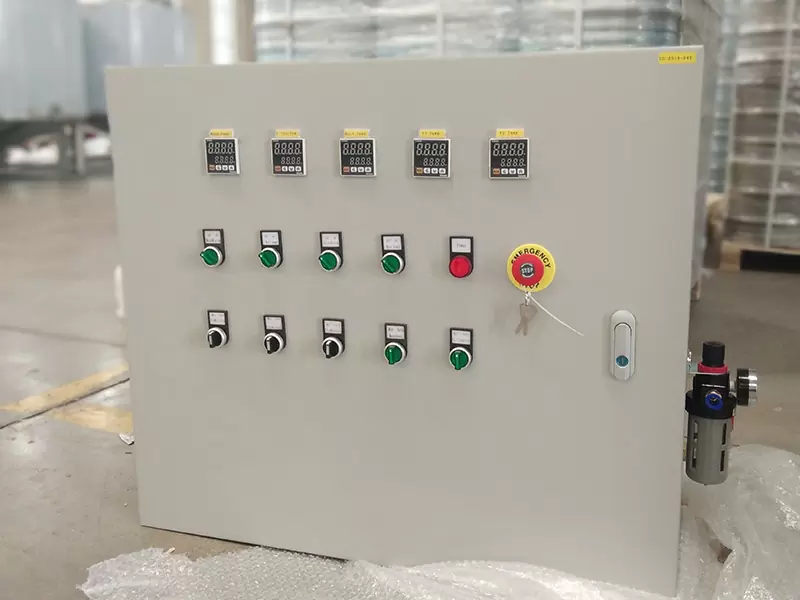

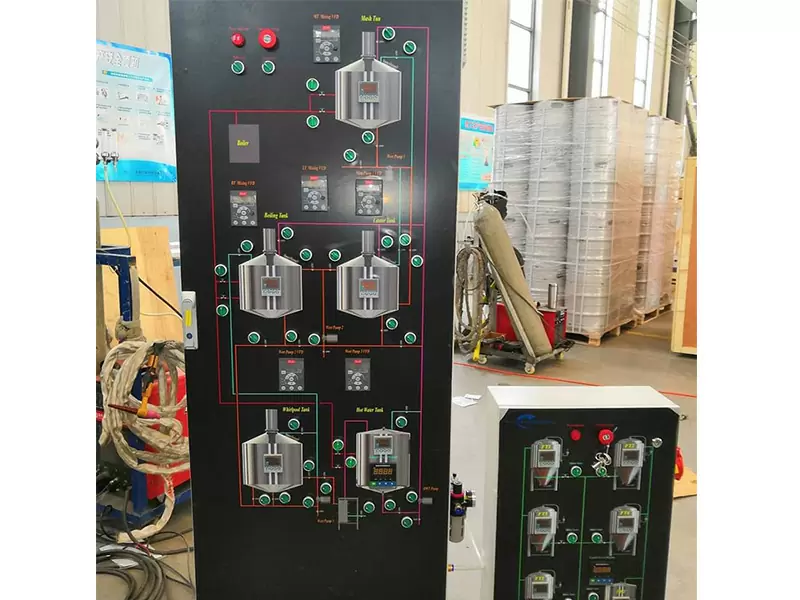

*  Consecutive arrangement instrument panel (flow chart panel for optional)

*  Assembling Style: Floor Type/Wall hanging

*  Electrical Components: World wide brand CE Certificated

*  Pump on/off and VFD control

*  Rake/Agitator motor on/off and VFD control

*  Temperature display and Auto/Manu heating Control for brewhouse vessels

*  Auto/Manu Glycol Water Pump control

*  Auto/Manu Chiller control

*  Temperature display and Auto/Manu Control for FVs and BBTs

*  Temperature display and Control for GWT and CLT

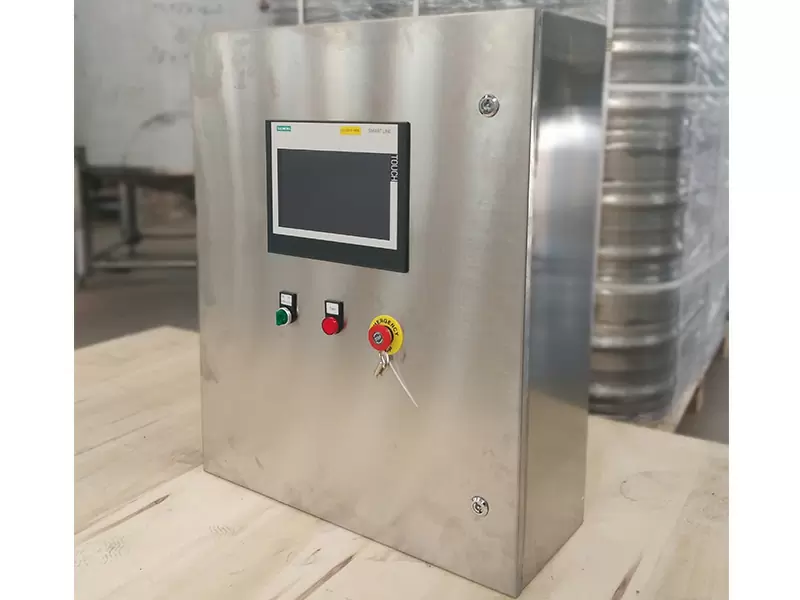

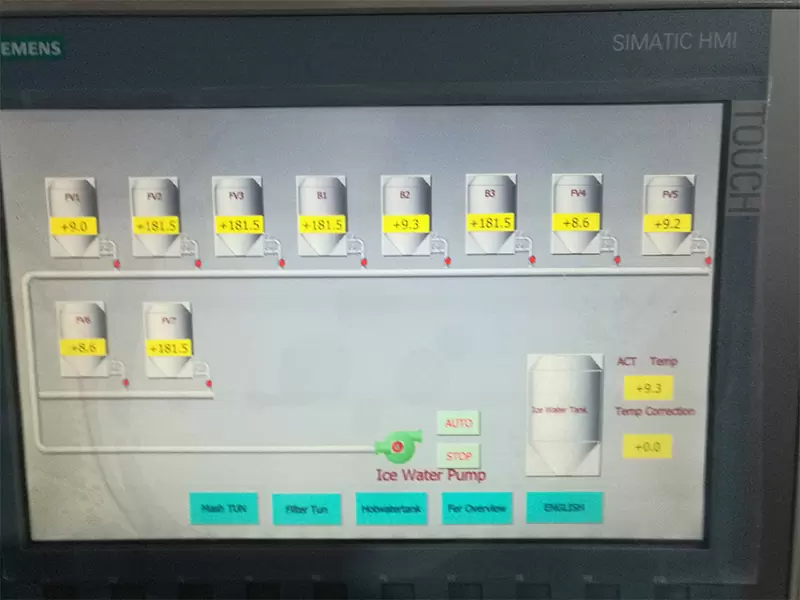

*  PLC control with touch screen

Optional Parts:

Stainless Cabinet

Individual Cabinet & Control screen

Remote Temperature control function on Mobile App

*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.

Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT

Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed


Working Platform

Brewhouse Pipelines and Valves


Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink


*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.

*Tonsen Bright beer tank/Serving Tank:

Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL

Type: veritical type, easy cleaning; horizontal type, space saving
Design pressure: 0.3Mpa

Working pressure: 0.2Mpa

Materials: 304 Stainless Steel/316 Stainless Steel Option

Control System, CIP arm and 360° spary ball

5000L 50HL Side Manhole Jacketed SS Double Wall Brite Beer Tank for Sale

Brewery Equipment RequestComponents
Milling systemMalt Miller
Brewhouse SystemMash/Lauter/Boiler/Whirlpool Tank/Hot water tank
Wort pump
Heat exchanger
Steam boiler (optional)
Platform and Other accessories are matched
Fermenting systemFermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers
Cooling systemChiller and Glycol water tank (Ice water tank, cold water tank)
CIP SystemSterilization tank & Alkali liquor tank & CIP pump
Control systemPID or PLC (SIEMENS program) as option
Packing systemBottling/canning/kegging machine
Trade TermEXW, FOB, CRF, CIF
Payment TermT/T in advance

Area Request<45㎡<60㎡<70㎡<90㎡<120㎡<140㎡<150㎡<180㎡<150㎡
Brew master111-21-22-32-33-53-53-5
MaterialInterior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper
HeatingElectric/Steam/Direct fire for optional
Voltage3 phase/380(220, 415,440...)v/50 (60)Hz

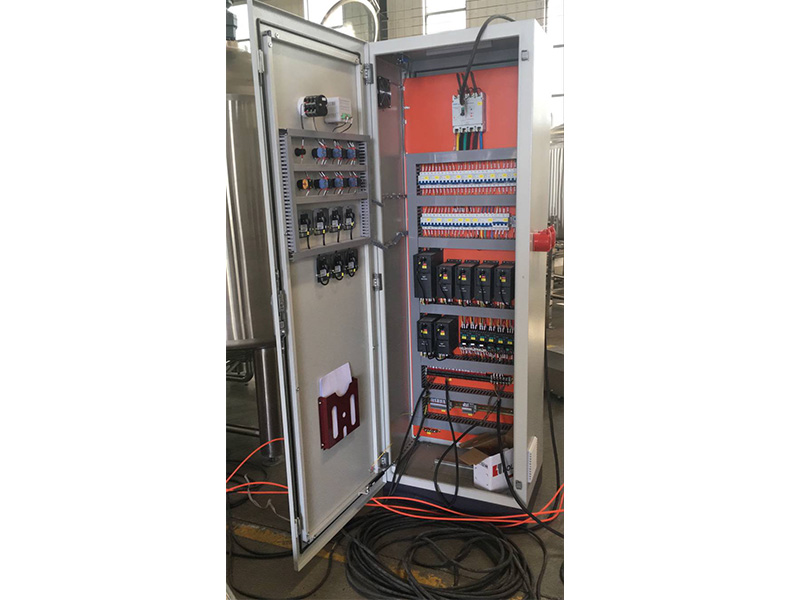

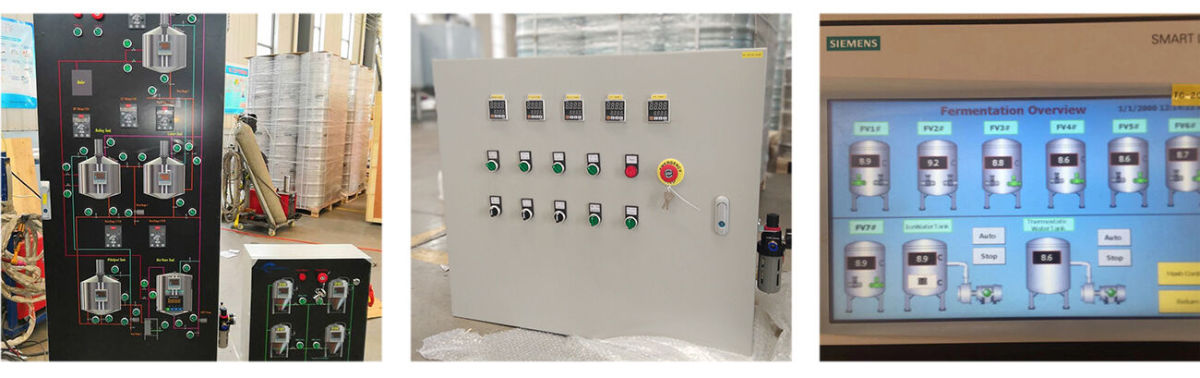

Control System.jpg
