• Milling System

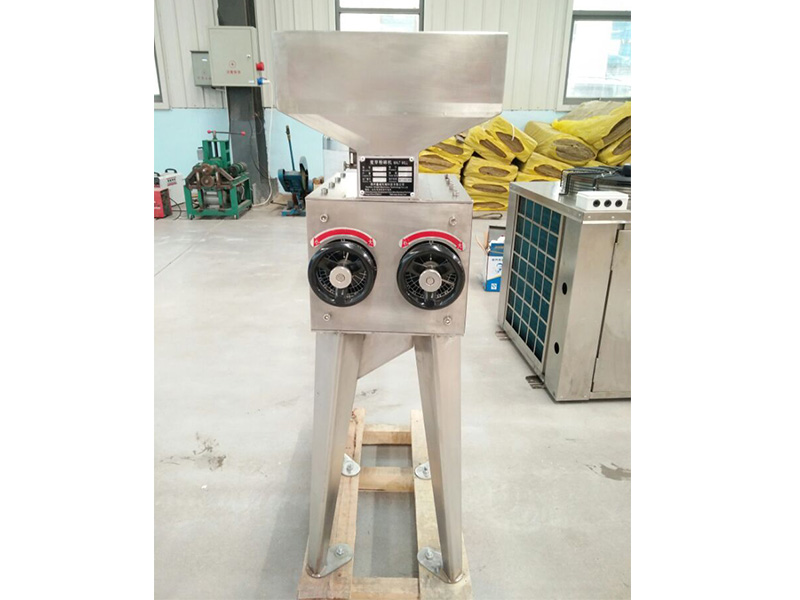

Malt milling machine
(1) flat roller, easy for materials to access to the grinding area, and disassembly and maintenance easy.
(2) the speed roller by gear transmission, so with efficiency transmission, smooth operation, low noise.
(3) roller with self-aligning ball bearings to ensure accurate concentric rotation, and make sure high speed and roller pressure.
(4) high-quality steel shaft, alloy steel roller in dynamic balance, so with smooth operation and long service life;
(5) The structure of the fine-tuning rollers is simple and it is easy to operate, and the locking handle convenient.
(6) Cover protection structure could be required;
(7) Fully enclosed structure, safe and beautiful.
Tel: +8618660395833
E-mail:info@tonsenbrew.com
Contact us

- Product Description -

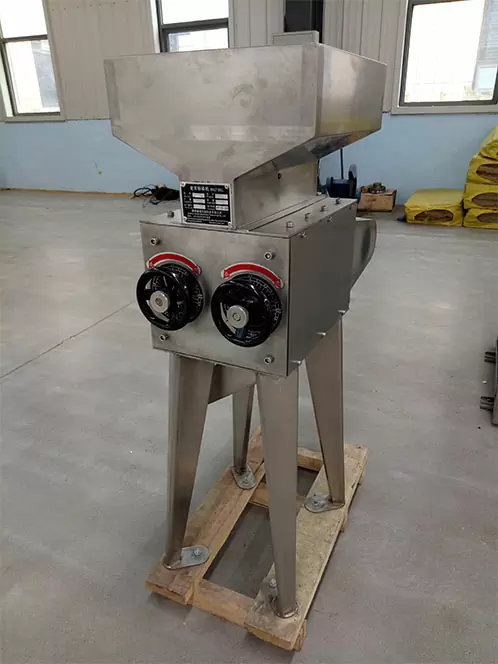

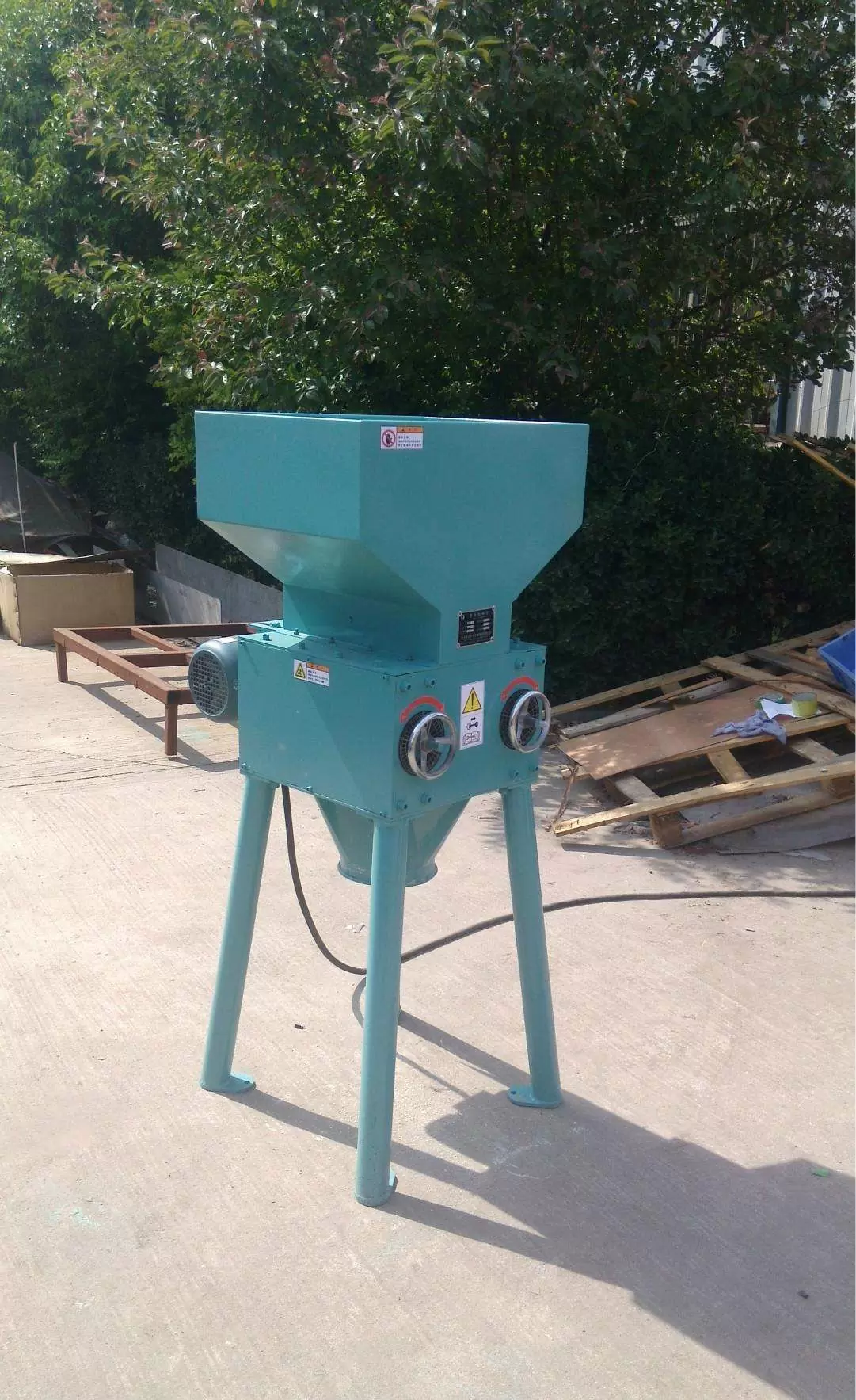

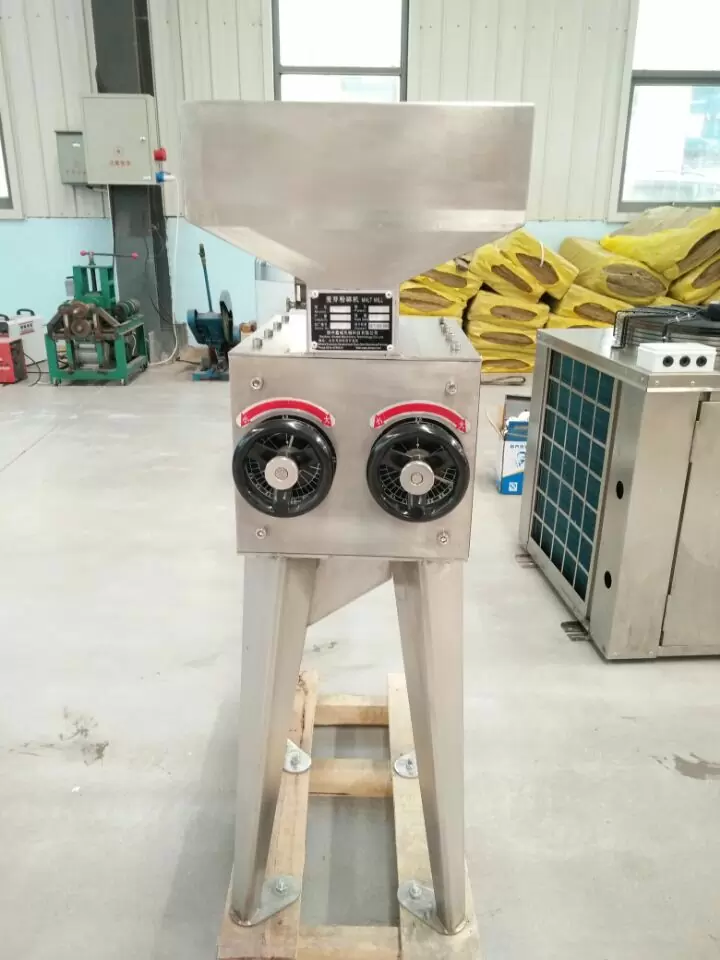

TONSEN 500kg/h malt milling machine for 1000L beer equipment

Malt Miller/Malt milling machine/Milling System

00 - 500kg/h high quality malt grinder machine beer making machinery Malt Miller
The malt miller have double roller and hammer miller, you can choose the kind according to your requitement.

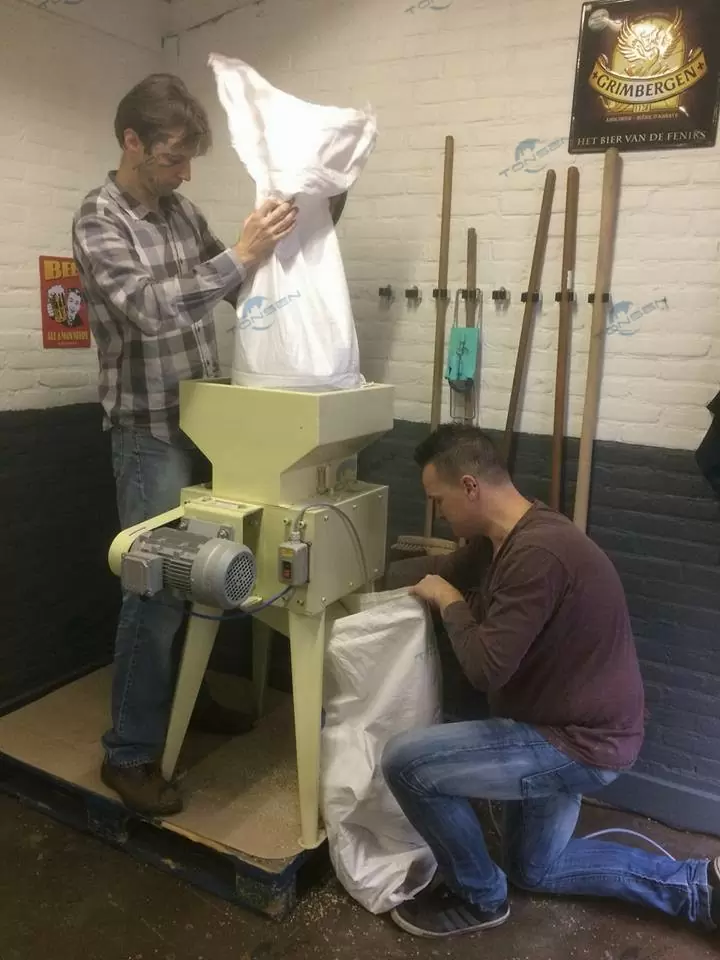

201711 Netherland malt milling.jpg

Production Application:

The malter miller, malt crusher using advanced technology to make much improvements on the design of the malt miller, with the advantage of small size, large output, reliable performance, Energy-saving, durable and maintain easily etc..

This product is mainly applied to malt crushing of beer production and manufacturers of pharmaceutical, monosodium glutamate. Also suitable for crushing coarse feed in feed mill of small rural and town.


Products Feature:

(1)   flat roller, easy for materials to access to the grinding area, and disassembly and maintenance easy.

(2)   the speed roller by gear transmission, so with efficiency transmission, smooth operation, low noise.

(3)   roller with self-aligning ball bearings to ensure accurate concentric rotation, and make sure high speed and roller pressure.

(4)   high-quality steel shaft, alloy steel roller in dynamic balance, so with smooth operation and long service life;

(5)   The structure of the fine-tuning rollers is simple and it is easy to operate, and the locking handle convenient.

(6)   Cover protection structure could be required;

(7)   Fully enclosed structure, safe and beautiful.


Working principle:

Clean raw grain after removing impurities (such as stones, sand and metal objects, etc.) (and water content not more than 12.5%) is put into the hopper, then being squeezed between the two rollers relying on body weight of the raw grain and  slight  vibration , Finally discharged by hoper outlet.

*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.


Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT


Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed


Oxygenator

Working Platform

Brewhouse Pipelines and Valves


Optional:

Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter

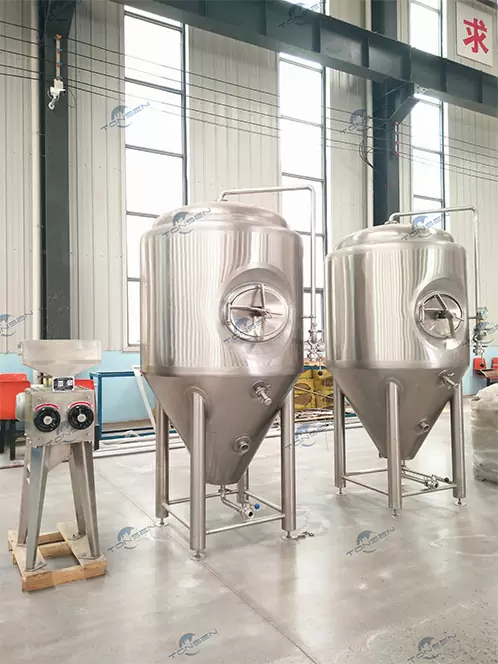

*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.


*Tonsen Bright beer tank/Serving Tank:

Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL

Type: veritical type, easy cleaning; horizontal type, space saving

Design pressure: 0.3Mpa

Working pressure: 0.2Mpa

Materials: 304 Stainless Steel/316 Stainless Steel Option

Control System, CIP arm and 360° spary ball

5000L 50HL Side Manhole Jacketed SS Double Wall Brite Beer Tank for Sale


Brewery Equipment RequestComponents
Milling systemMalt Miller
Brewhouse SystemMash/Lauter/Boiler/Whirlpool Tank/Hot water tank
Wort pump
Heat exchanger
Steam boiler (optional)
Platform and Other accessories are matched
Fermenting systemFermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers
Cooling systemChiller and Glycol water tank (Ice water tank, cold water tank)
CIP SystemSterilization tank & Alkali liquor tank & CIP pump
Control systemPID or PLC (SIEMENS program) as option
Packing systemBottling/canning/kegging machine
Trade TermEXW, FOB, CRF, CIF
Payment TermT/T in advance

Output/Brew5HL8HL10HL15HL20HL25HL30HL35HL50HL
Brew/Week2~6
Output/Week10~30HL16~48HL20~60HL30~90HL40~120HL150~300HL180~360HL210~420HL240~360HL
Area Request<45㎡<60㎡<70㎡<90㎡<120㎡<140㎡<150㎡<180㎡<150㎡
Brew master111-21-22-32-33-53-53-5
MaterialInterior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper
HeatingElectric/Steam/Direct fire for optional
Voltage3 phase/380(220, 415,440...)v/50 (60)Hz

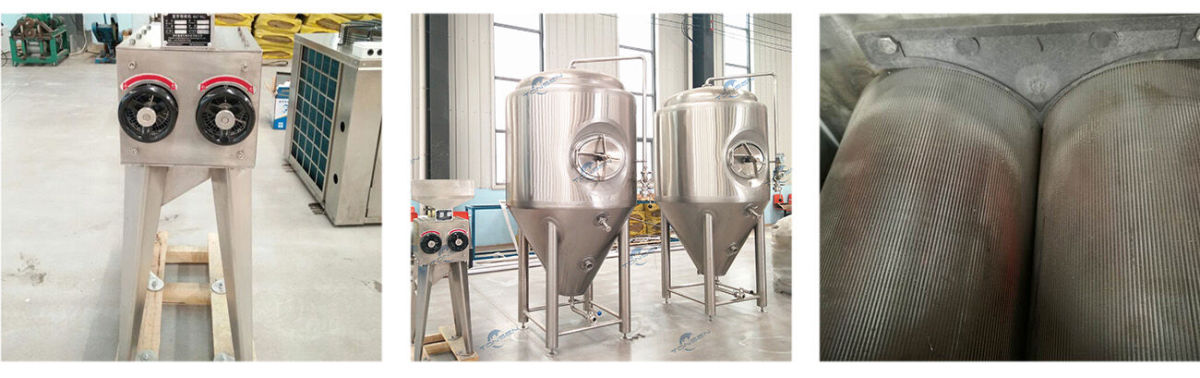

Milling System.jpg
