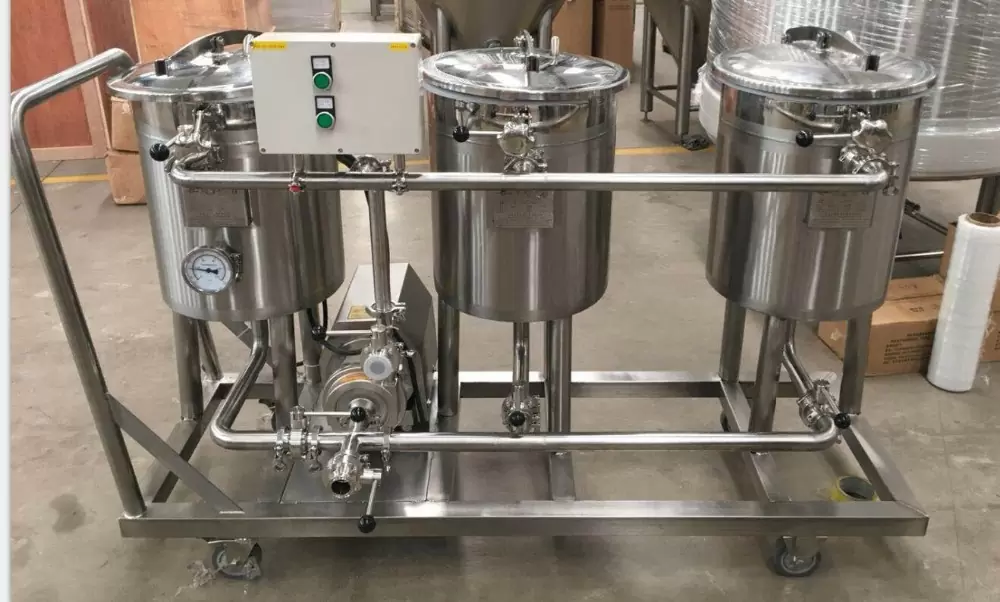

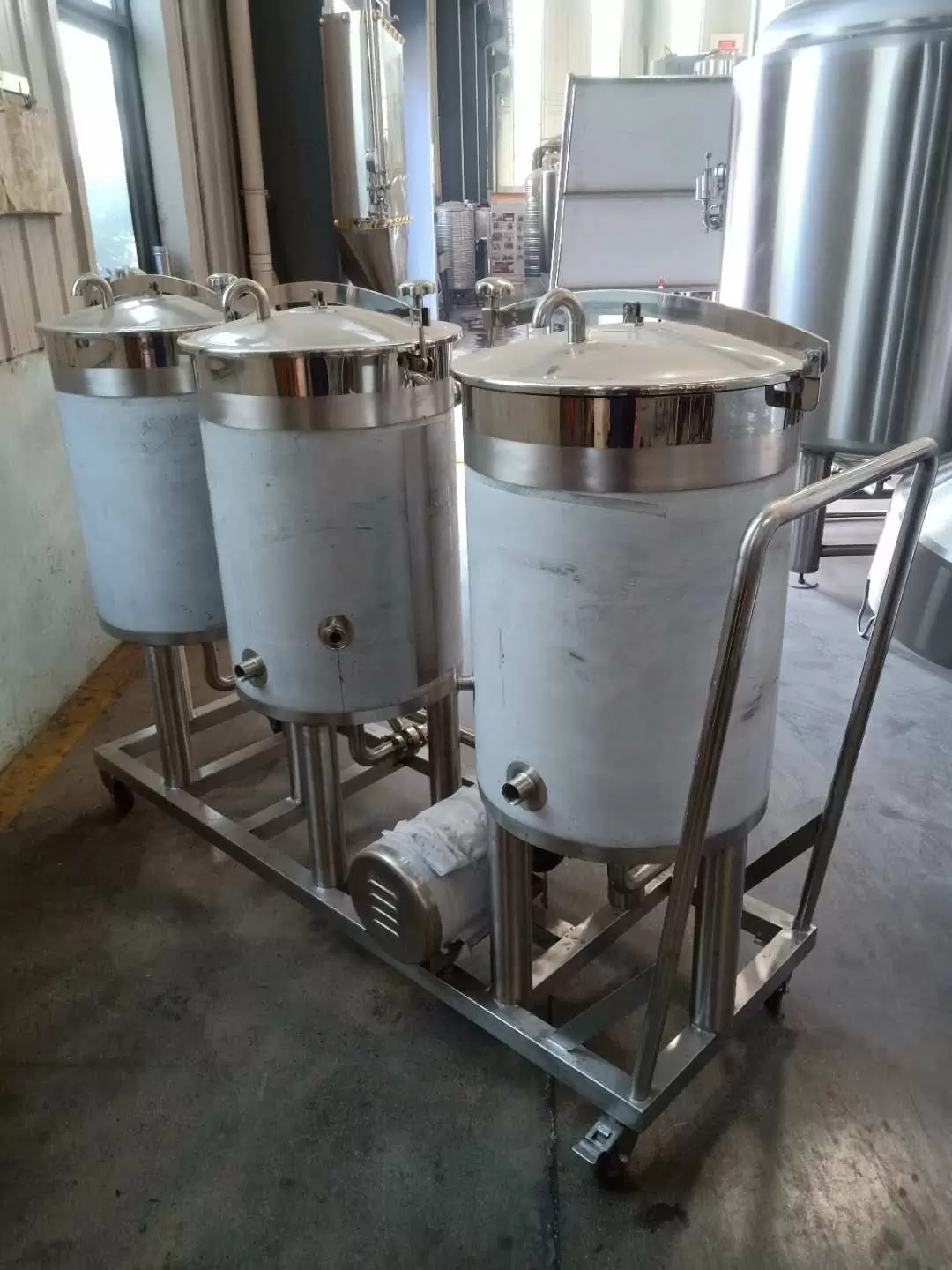

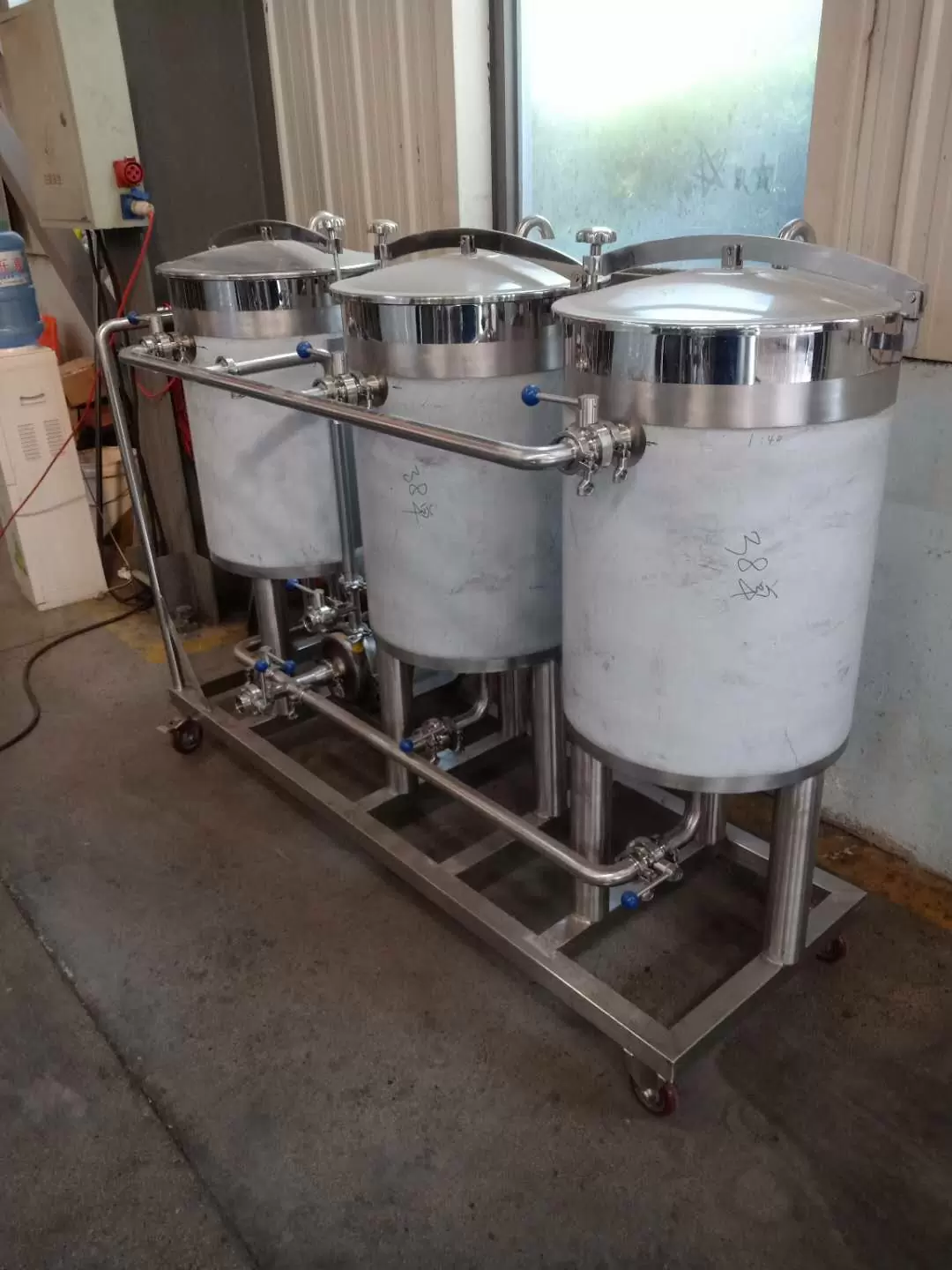

Automatic CIP cleaning system /Tonsen cip tank beer tank cip washer cleaning cip systems 100L 200L 250 L 300L 500L CIP portability system.

CIP cleaning system used to clean beer/wine brewing tanks (fermentation tank, mashing tun, lauter tun, ince water tank etc) automatically.

Controlled by PLC system.

CIP cleaning system include Iye tank, Hydrogen peroside tank, valves and PLC control cabinet. If tank capacity is small, tank could be fixed in small conveying trolleys. After cleaning with CIP cleaning system, there is no water, no savor, no dirt in all  tanks. This system is easy to operate and enjoy high security.

It is devided into 2 types: 2 tanks CIP system and 3 tanks CIP system. The tank capacity could be chosen based on your actual requirement. General speaking, tank capacity: 30L 50L 100L 150L 300L 500L 800L etc....

*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.

Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT

Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed

Oxygenator

Working Platform

Brewhouse Pipelines and Valves

Optional:

Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter

*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.


*Tonsen Bright beer tank/Serving Tank:

Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL

Type: veritical type, easy cleaning; horizontal type, space saving

Design pressure: 0.3Mpa

Working pressure: 0.2Mpa

Materials: 304 Stainless Steel/316 Stainless Steel Option

Control System, CIP arm and 360° spary ball
