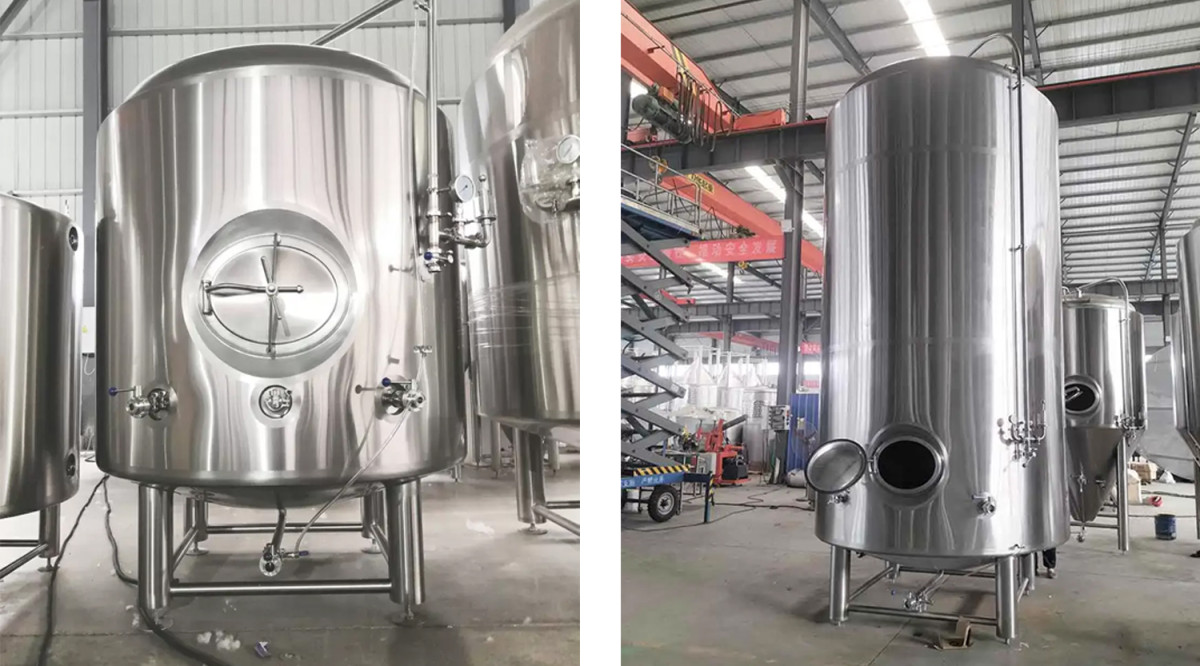

Bright beer tank/Serving Tank

Function: Beer maturation / conditioning / serving / filtered beer receiving
The bright beer tank is a tank of store beer, so people also called it a storage tank. They are most applying in the beer industry, Why they call it a “bright beer tank”?someone also calls it brite beer tank. In fact, after beer fermented and mature, then need to filter and wipe off the mixed and yeast from the fermentation liquid, make beer clarify and shine. At last, the fermentation liquid finished filtering is bright beer. This is also the last step of the brewing process, then beer bottling.Depending on their application , the beer serving tanks can be glycol jacketed or can be located in a cold room.
For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.
In most breweries, the beer will be filtered after leaving the larger container and sent into bright tanks. If you want to force carbonation of bright beer, the beer can be carbonated in a fermentation tank or storage tank. In this case, the beer should be completely filled with carbonic acid to reach the bright tank.
The bright beer tank is usually used for beer maturation, secondary fermentation, beer storage, beer filling, addition & mixture of other spices, beer carbonation and beer serving etc.

As a mature brewery, brite beer tank tanks are essential.
Bright beer tanks are often also called serving tanks, clear beer tanks (=CBTs), bright beer tanks (=BBTs), maturation or conditioning tanks.

Our Brite Beer Tanks are actually and made according to the principle of beer brewing technology.

Function: Wort Fermentation or maturation

Useful capacity: 1BBL-200BBL  (customizable)

Interior Shell:SUS304 Stainless Steel,thickness: 3.0mm;

Exterior Shell:SUS304 Stainless Steel,thickness: 2.0mm;

Insulation: Polyurethane-thickness:80mm

Interior Finish: Overall polishing to 0.4 μm without dead corner

Cooling jacket: Dimpled plate on cone and side, thickness: 1. 5mm

Cooling media: glycol water or alcohol water.

Stringent tank and Jacket leakage test by water and pressured gas

Test Pressure:0.3~0.4 Mpa, Working pressure 0.2~ 0.3 Mpa.

Equiped with Carbonation stone and port for filling CO2

Tri clamp discharge arm with butterfly valve

100% TIG welding with pure argon gas shield

CO2 blow-off arm with butterfly valve

CIP arm with 360 coverage CIP spraying ball

Thermowell with high accuracy temperature sensor: PT100

Cooling control Square table control, single tank single control

4pcs completely SUS304 heavy duty legs with leveling pad and legs support

Other configurations Negotiable for option

*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.

Heating Methods: Electric, Steam, Gas fired
Vessels: 2/3/4/5 Vessels;
Regular: MLT+BKW+HLT

Plate Heat Exchanger
Motor: CE/UL Listed
Pumps: CE/UL Listed

Oxygenator
Working Platform
Brewhouse Pipelines and Valves

Optional:
Grist Case
Wort Buffer Tank
Hop Back
Platform with Sink
Flowmeter

*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.

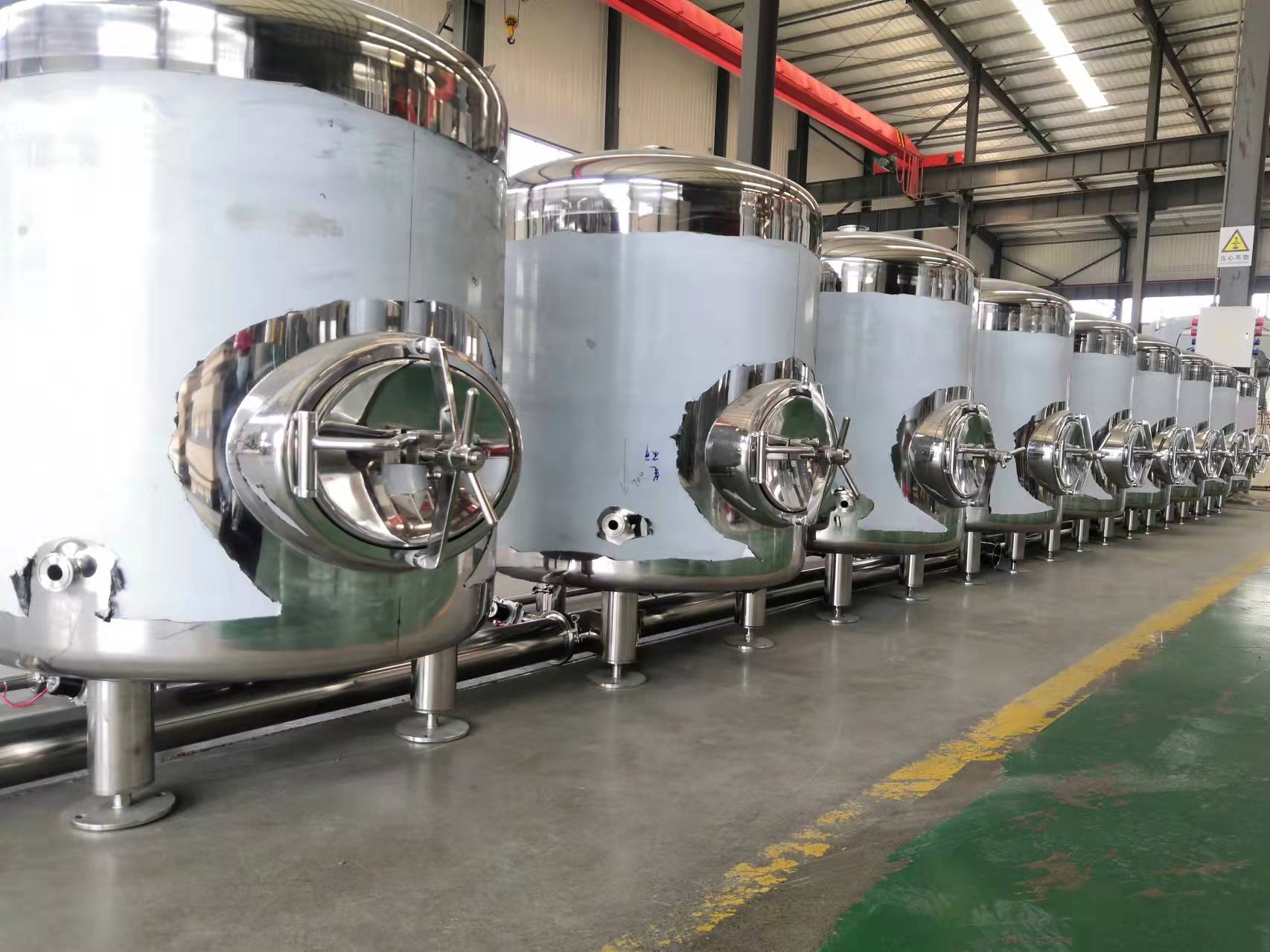

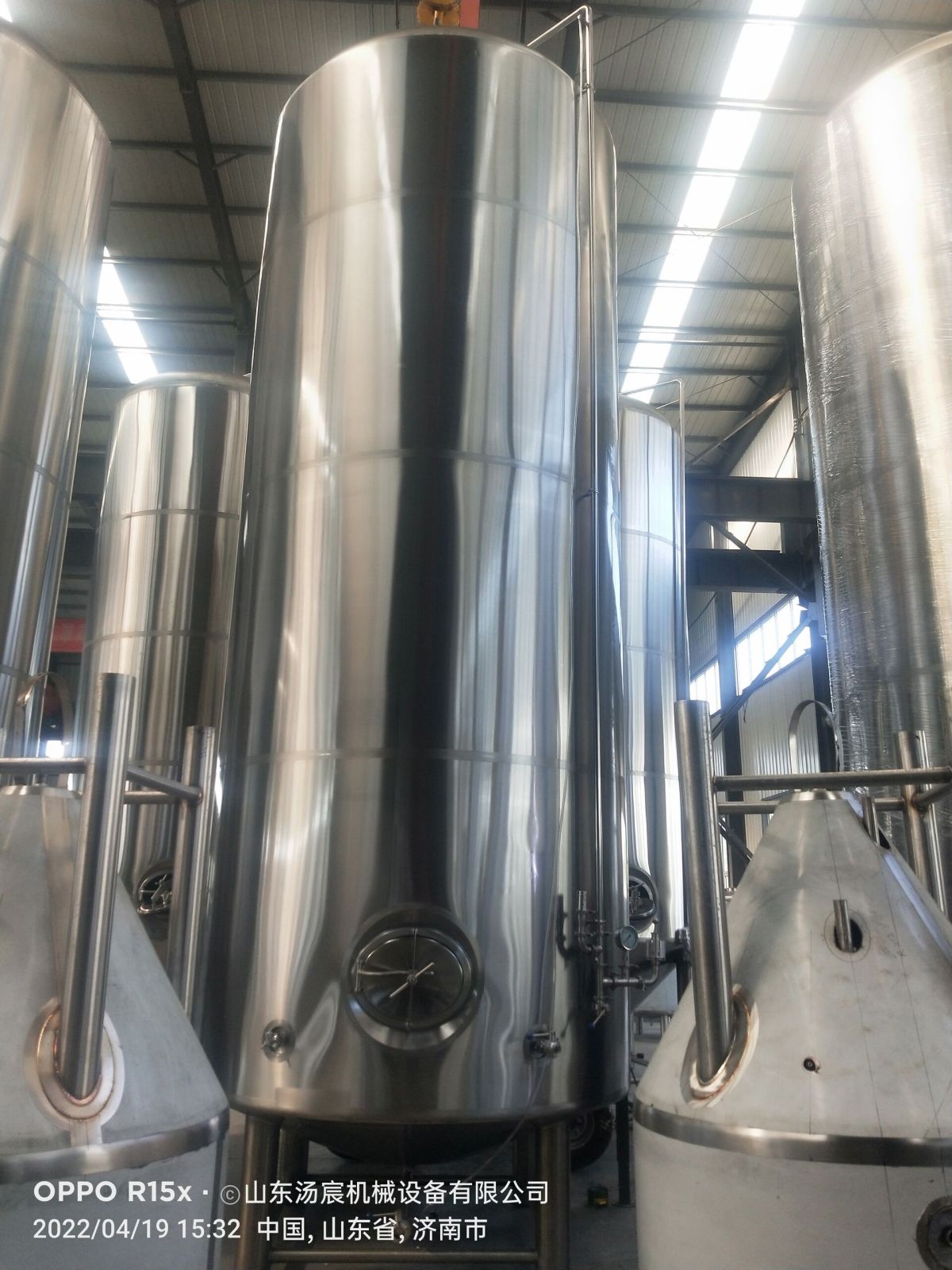

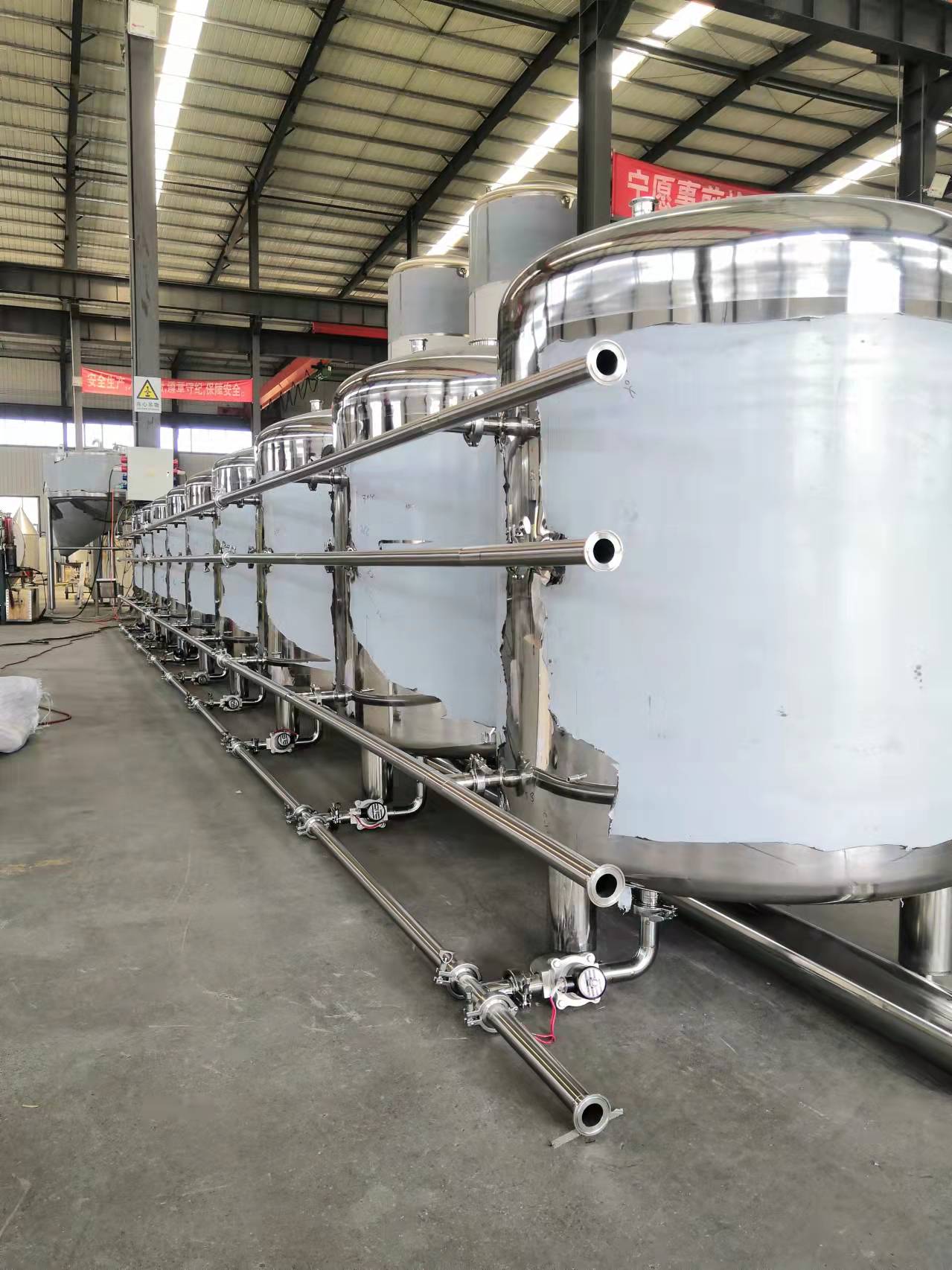

*Tonsen Bright beer tank/Serving Tank:

Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL
Type: veritical type, easy cleaning; horizontal type, space saving
Design pressure: 0.3Mpa
Working pressure: 0.2Mpa
Materials: 304 Stainless Steel/316 Stainless Steel Option
Control System, CIP arm and 360° spary ball
5000L 50HL Side Manhole Jacketed SS Double Wall Brite Beer Tank for Sale
