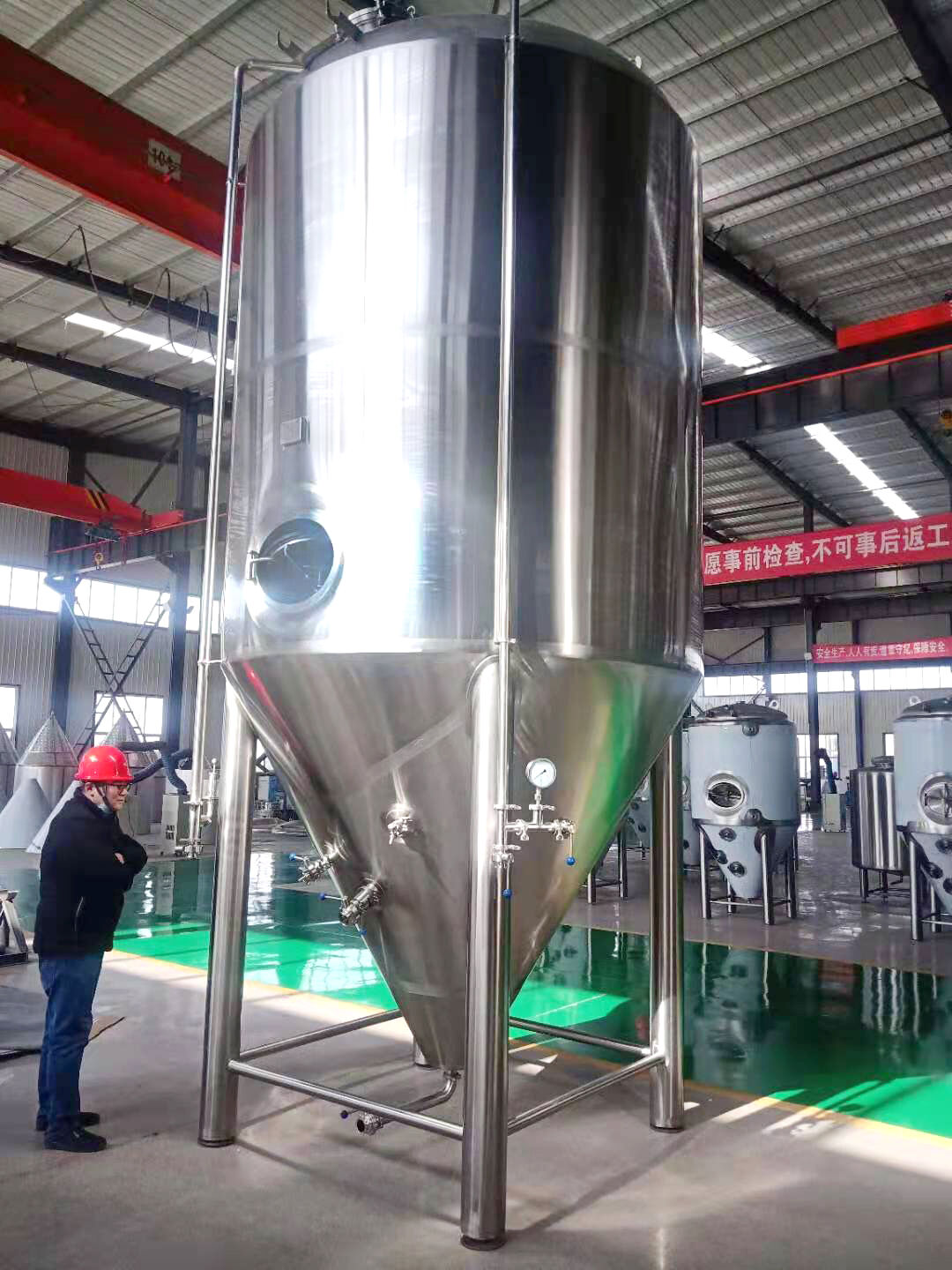

• Large Brewery Fermentation Tank

Beer fermenter 10000L 100HL 80BBL fermentation tank
Fermenting System
Fermentation systems is made up of Fermentation Tank and Bright Beer Tank.
Generally, Fermentation Tank structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets on cone andon cylinder.
Tank internal and external wall are made of international quality standards of sanitary 304 stainless steel,the Polyurethane insulation thickness between the inner and outer is 80-200mm.
Accessories:
1.Thermowell with high accuracy temperature sensor
2.CIP, rotary spray ball
3.Inner tank mechanical polishing and out Plate Surface protection ribbon polished on welds.
4.Inlet and outlet valves, drain valves on cone
5.With Solenoid valve,breathing valve,mechanical pressure regulating valve,sampling valve,pressure gauge
and accessories matched.
Tel: +8618660395833
E-mail:info@tonsenbrew.com
Contact us

- Product Description -

Fermenting System

10000L 100HL 80BBL Automatic Stainless steel steam heating 4 vessel brewing fermenters equipments is often used in Industry brewery or commercial breweries. The beer mostly be sold on shelf in bottle or canning.The system contains four brewhouse vessels, Mash tun,Lauter tun, Boiling kettle, and whirlpool tank. The mashing, filtering, boiling and whirlpooling are completed in the four different tanks.This system usually brews 4-6 batch a day. It can cope with  multi-batch brewing in one day. According to different fermentation cycles of brewed beer, 12pcs 20000L fermenters or 20pcs 10000L fermentors can usually be configured, and 8pcs 20000L fermenters and 10pcs 10000L fermenters can also be configured to meet the needs of various beer types. The system also needs to be equipped with a complete automatic control system, malt milling system, CIP system, cooling system, air system, etc.Fermentation systems is made up of Fermentation Tank and Bright Beer Tank.

Generally,  Fermentation Tank structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets on cone andon cylinder.

Tank internal and external wall are made of international quality standards of sanitary 304 stainless steel,the Polyurethane insulation thickness between the inner and outer is 80-200mm.

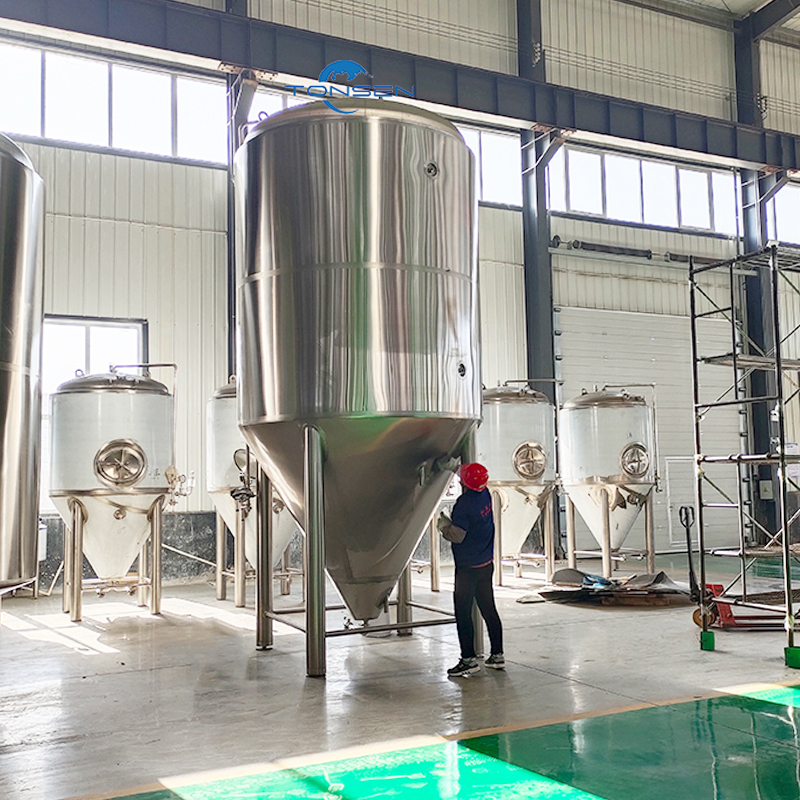

大型发酵罐 80bbl 8吨.jpg


Accessories:

1.Thermowell with high accuracy temperature sensor
2.CIP, rotary spray ball
3.Inner tank mechanical polishing and out Plate Surface protection ribbon polished on welds.
4.Inlet and outlet valves, drain valves on cone
5.With Solenoid valve,breathing valve,mechanical pressure regulating valve,sampling valve,pressure gauge
and accessories matched.

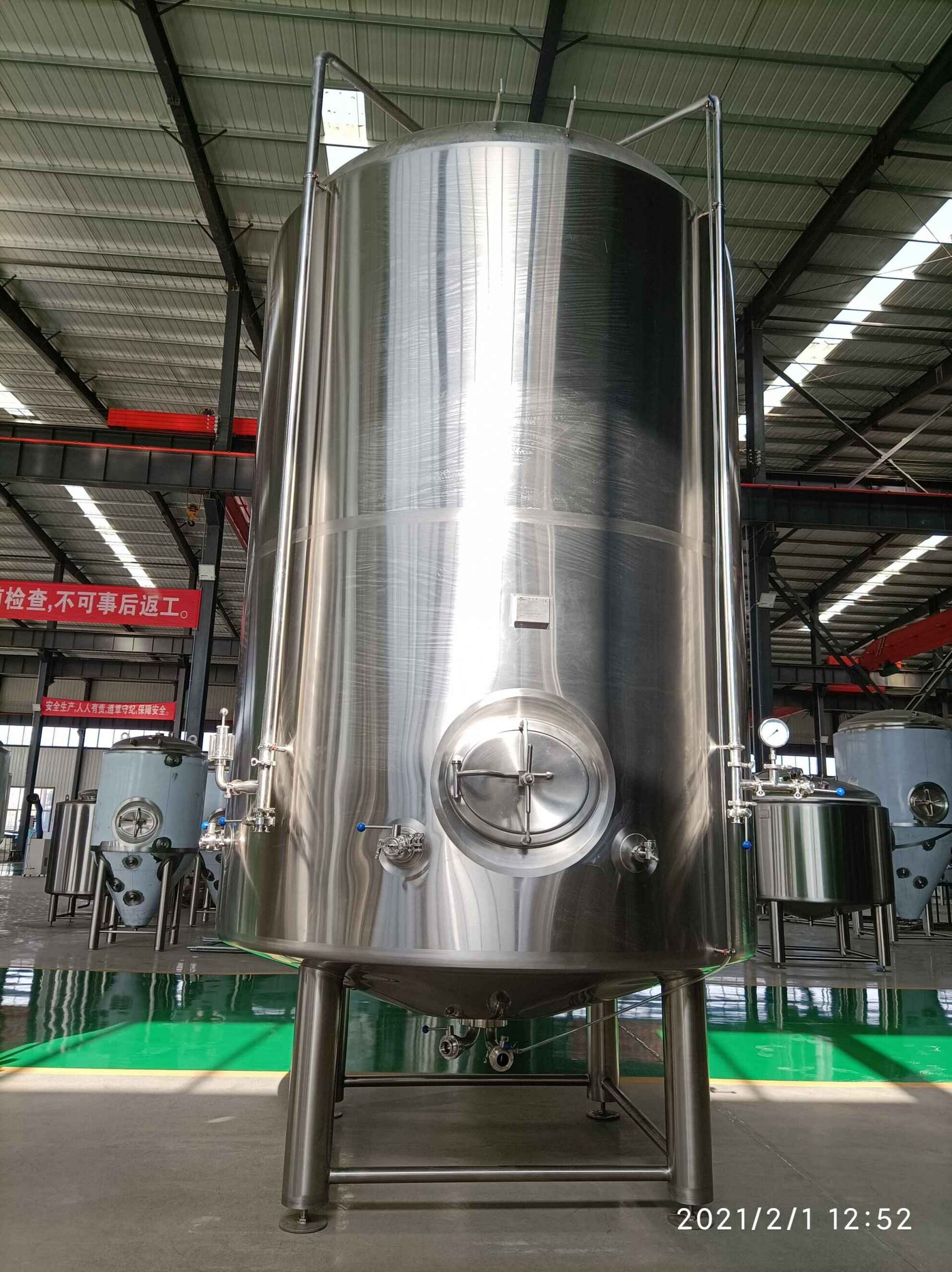

大型清酒罐 80bbl 8吨.jpg

Sample of Equipment, customize available aslo
FermenterSUS3041000L 2000L
Headspace25%25%
InteriorSUS304Thickness 3 mm
ExteriorSUS304Thickness 2 mm
Bottom cone60 degreeYeast outlet
Cooling methodGlycol coolingDimple cooling jacket
Temperature controlPT100
Pressure displayPressure gauge
Pressure reliefpressure relief valve
Safety valvesafety valve
CleaningSUS304CIP arm with 360 spary cleaning ball
Insulation layerPolyurethane80mm
ManwaySUS304Side or top manway
Sampling valveSUS304Aseptic type, no dead coner
ThermometerPT100
Carbonation deviceSUS304Optional
CIP trolley1
PLC or PID (meter display)1
Pipes, valves, spear parts1

Conical fermentation tank with cooling jacket structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .There is a cooling jacket on tank cone section,columnar part has three cooling jackets.


80bbl fermenter.jpg

Features

1.Four vessels with hot water, 10000Liter/batch, This system usually brews 4-7 batch a day.

2.All certificated 304 stainless steel, easy to clean; Copper cladding for special environments such as bars.

3.Steam heated, high thermal efficiency, gentle for wort.

4.The wort cooled by cold water to cool in single stage heat exchanger, double stage heat exchanger option.

5.Mashing heating and fermentation cooling automatically controlled, and manual control switched at any time.

6.PLC automatic control system with touch screen, Labor-saving,exact control on brewing technology;Manual valve control option, humanized operation, low equipment investment cost, high cost performance.

7.Beer filling in stainless steel beer barrels, glass bottles or cans.

8000L 80bbl 清酒罐.jpg



Application:


Our Turnkey beer equipment Can brew all kinds of beer, such as barley beer, wheat beer, bight beer, black beer, etc. So it is
widely used all over the world, especially offered to Europe countries with the CE certified.
1.Winery and Brewery For many winery and brewery, they will choose the Big capacity beer brewing equipment for higher
productivity. Like our Turnkey beer equipment with capacity 1000L, 2000L, 4000L even 6000L. 2. Brew Pilot or winemaker for
experimental or teaching demonstration. The training institutions will need to buy the small beer equipment to do their brewing
experiment or for teaching demonstration use. 3. Public houses like Bar, Winehouse, Tavern or some High-end restaurant, Upscale
hotel, etc. Most of people choose the normal capacity(300L, 500L, 1000L) to develop their business. They do the business like
Bars, Tavern or High-end restaurant, Upscale hotel. With the beer brewing equipment in their shop, can got much profit. 4. Others:
some people also get brewing equipment for own beer hobby. So they will choose the Home-brew beer equipment. 100L, 200L, 300L can
be good choice for you.

8000L 80bbl 发酵罐1.jpg
