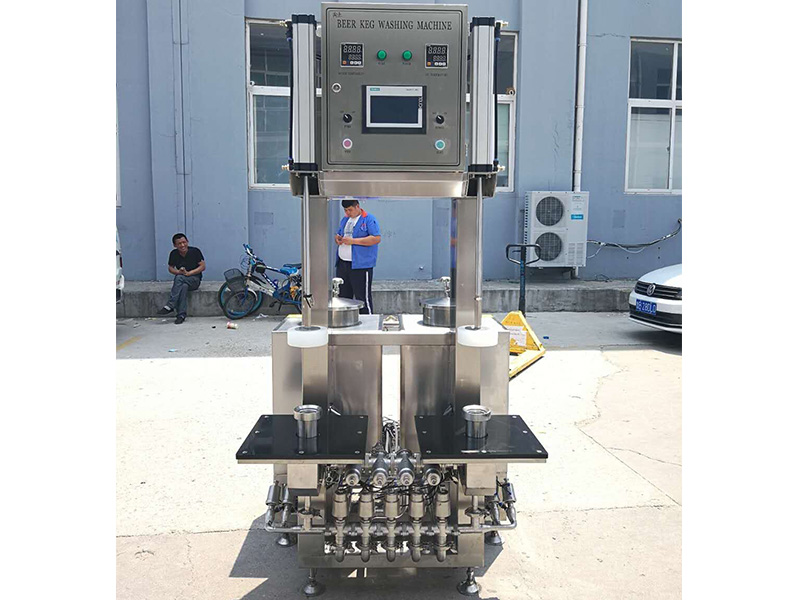

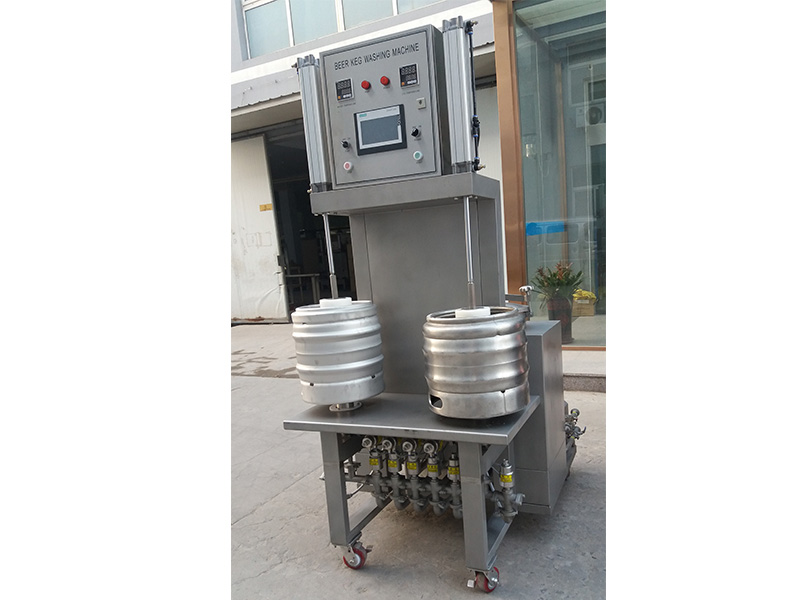

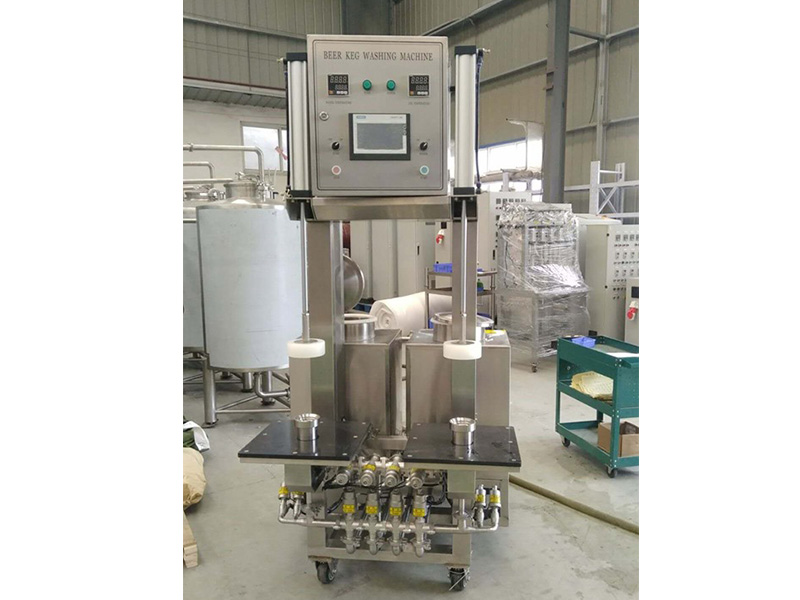

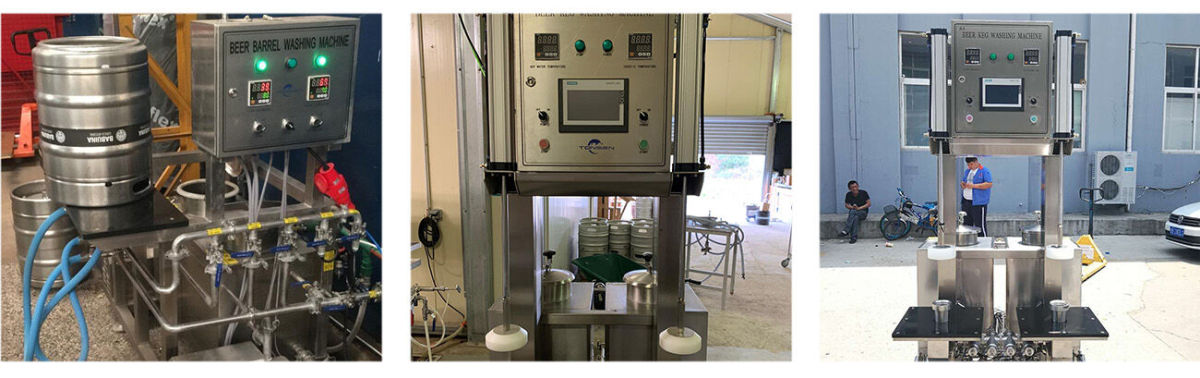

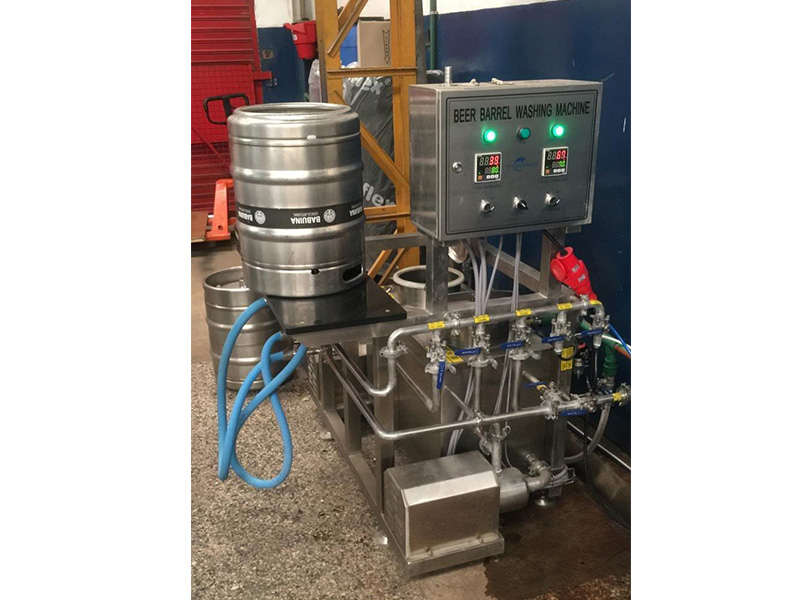

Beer Keg Washing Machine

Specifications of Beer Keg washing Machine

Main function and feature

Semi-Automatic Keg Washer/Keg Cleaning Machine/Keg Cleaner

Our keg washer mainly for:

-Micro beer brewery plant/factory

-Pub/restaurant/hotel beer brewery

Working Procedures

Load the keg → start (cylinder pressing tightly) → air blowing (draining residue) → scoured by clean water → air blowing (draining water) → extracting tube scoured by lye → air blowing → scoured by lye → air blowing (circulation of lye) → scoured by clean water → air blowing (draining water) → steam blowing → CO2 blowing → scoured by sterile water → CO2blowing → prepare CO2 pressure → reset the cylinder → unload the keg

Package and delivery

For delivery, we can promise to ship the goods in time.I stress this point because at present, the Chinese government has a very strict requirement for the factory, if the factory doesnt have a complete certificates for the production, they will face the problem to be closed. And this will affect the delivery time. And for Tonsen, we have get all the certificates so we never meet this problem.

*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.

Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT

Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed

Oxygenator

Working Platform

Brewhouse Pipelines and Valves

Optional:

Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter

*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.

*Tonsen Bright beer tank/Serving Tank:

Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL

Type: veritical type, easy cleaning; horizontal type, space saving

Design pressure: 0.3Mpa

Working pressure: 0.2Mpa

Materials: 304 Stainless Steel/316 Stainless Steel Option

Control System, CIP arm and 360° spary ball

5000L 50HL Side Manhole Jacketed SS Double Wall Brite Beer Tank for Sale
