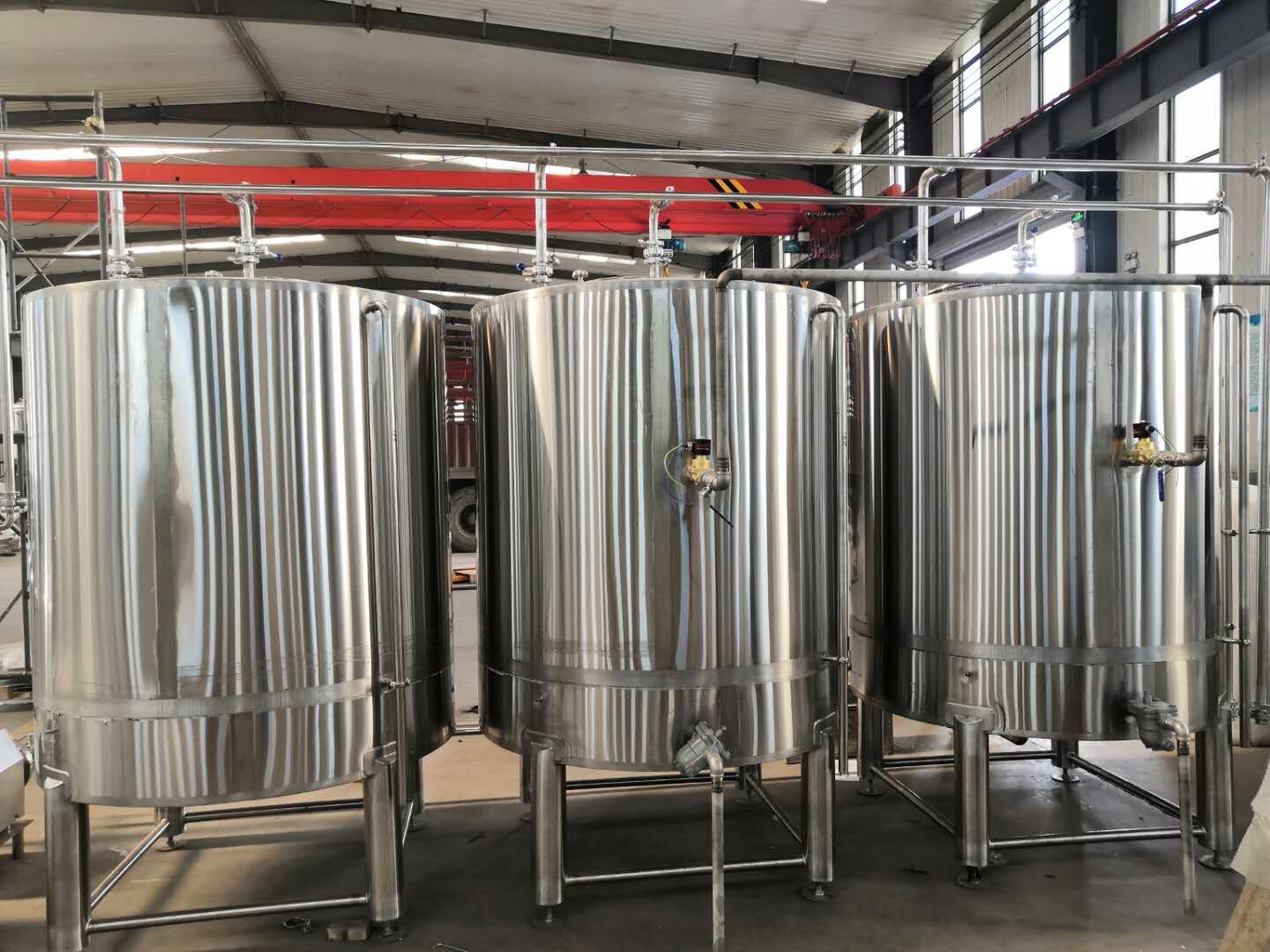

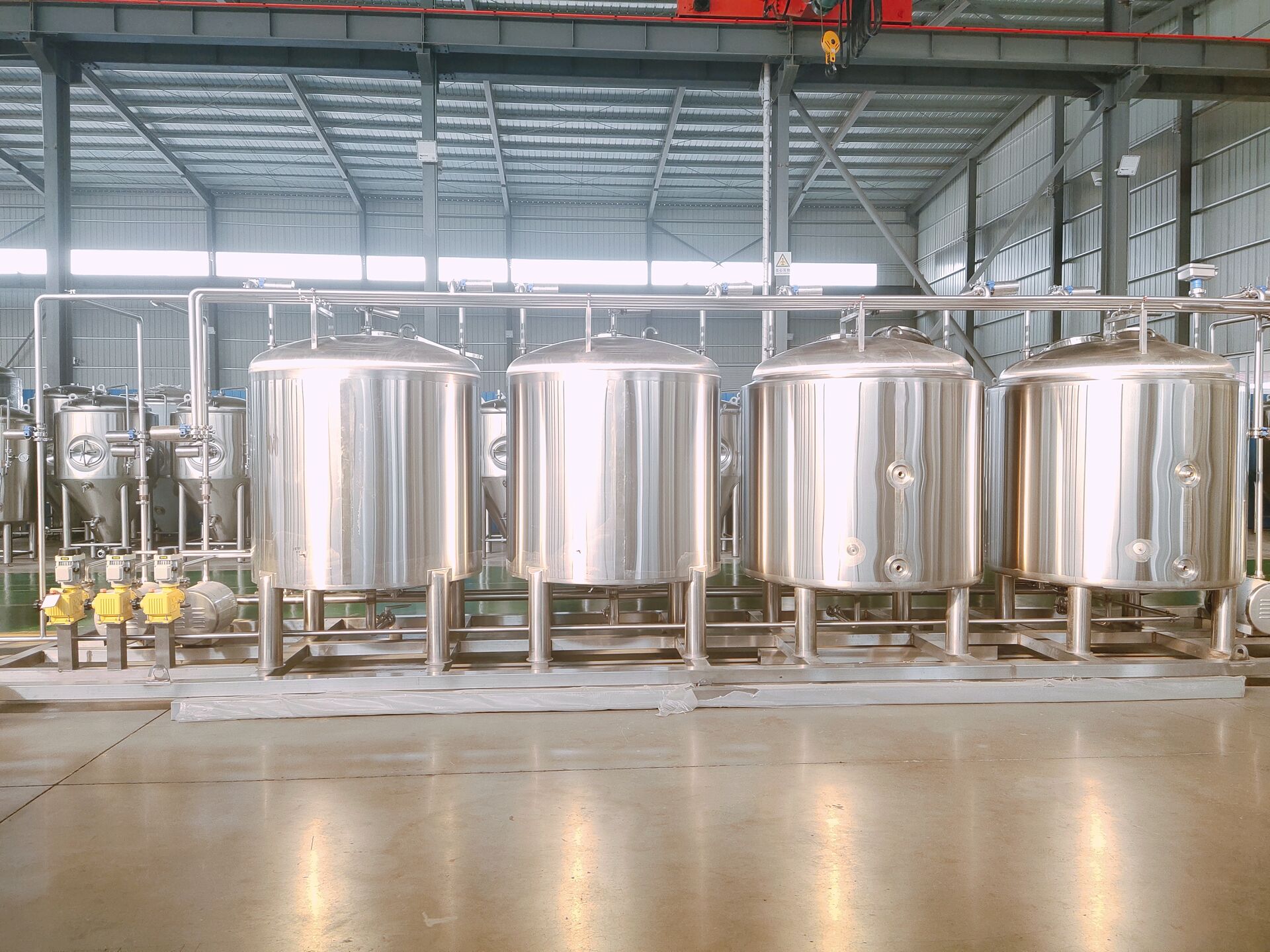

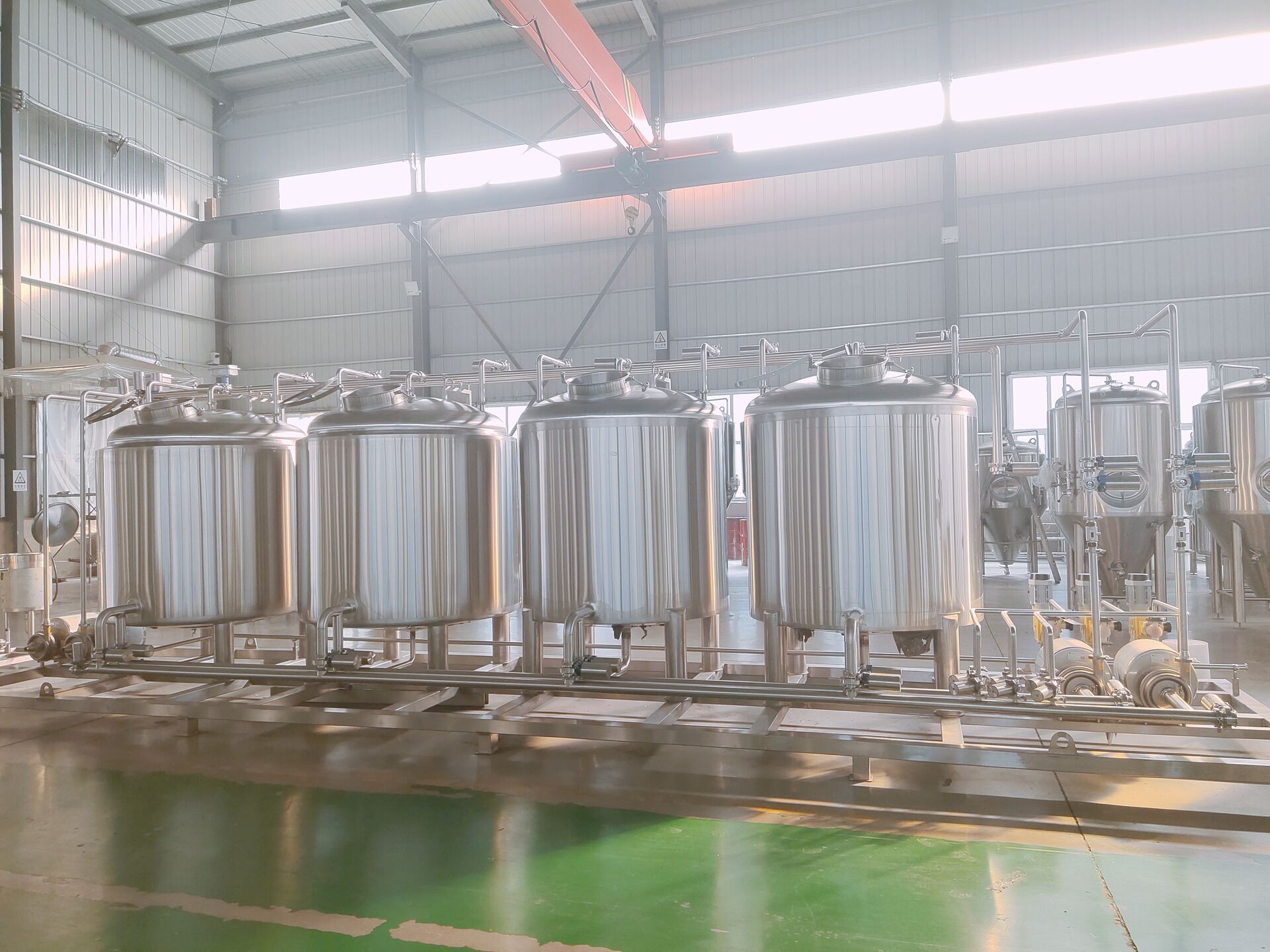

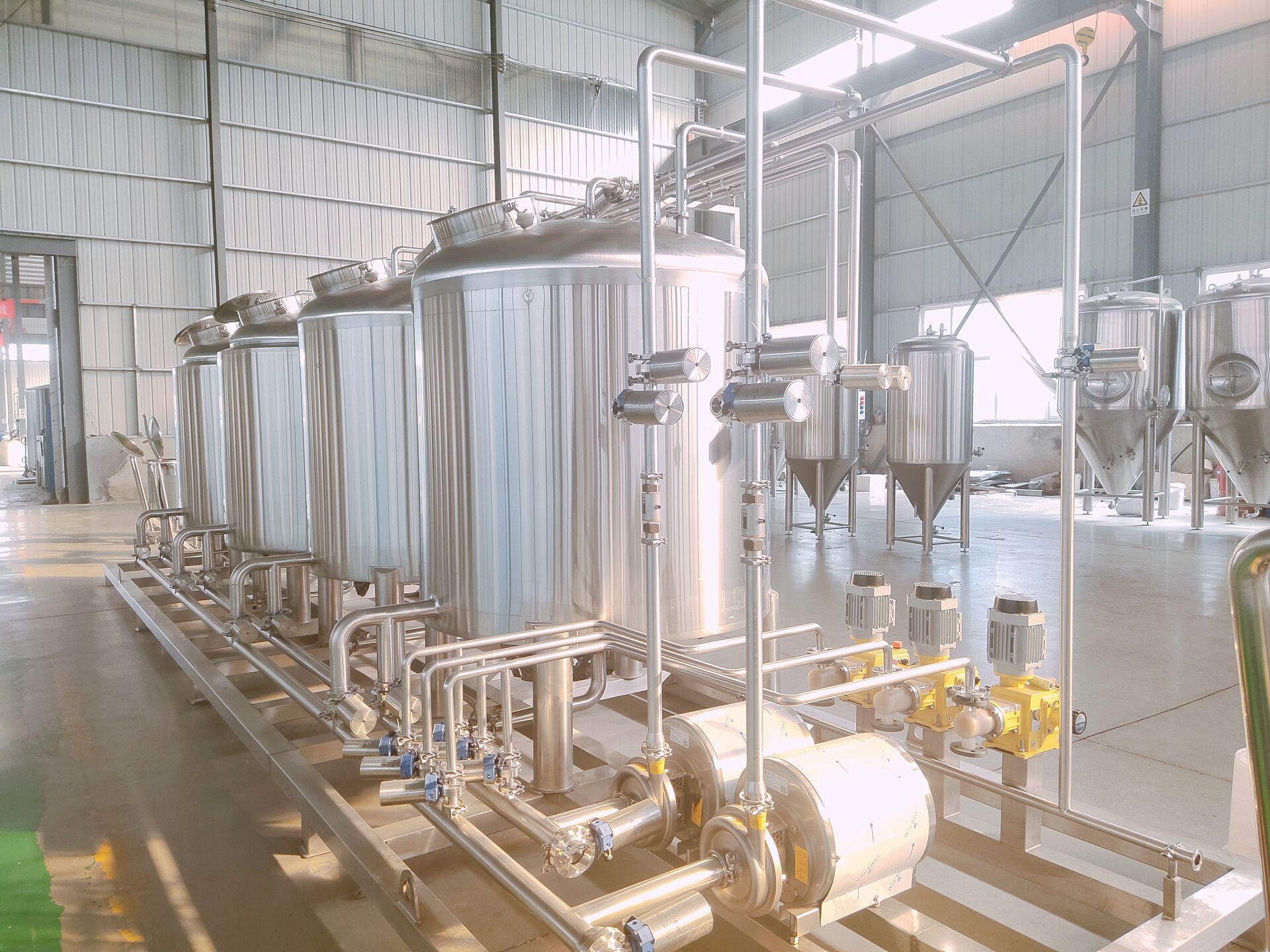

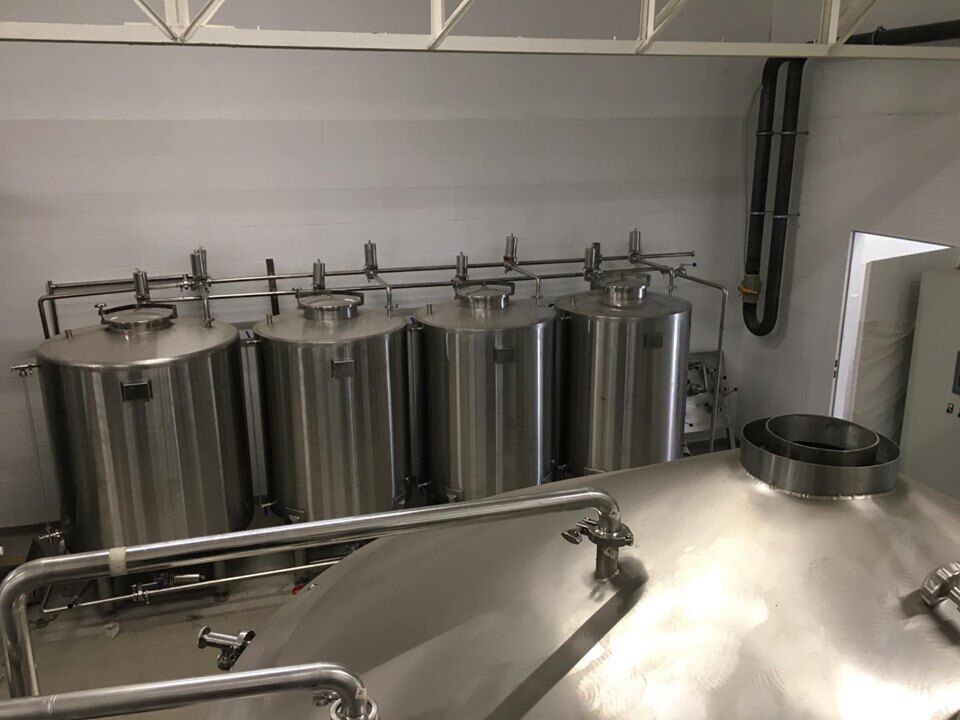

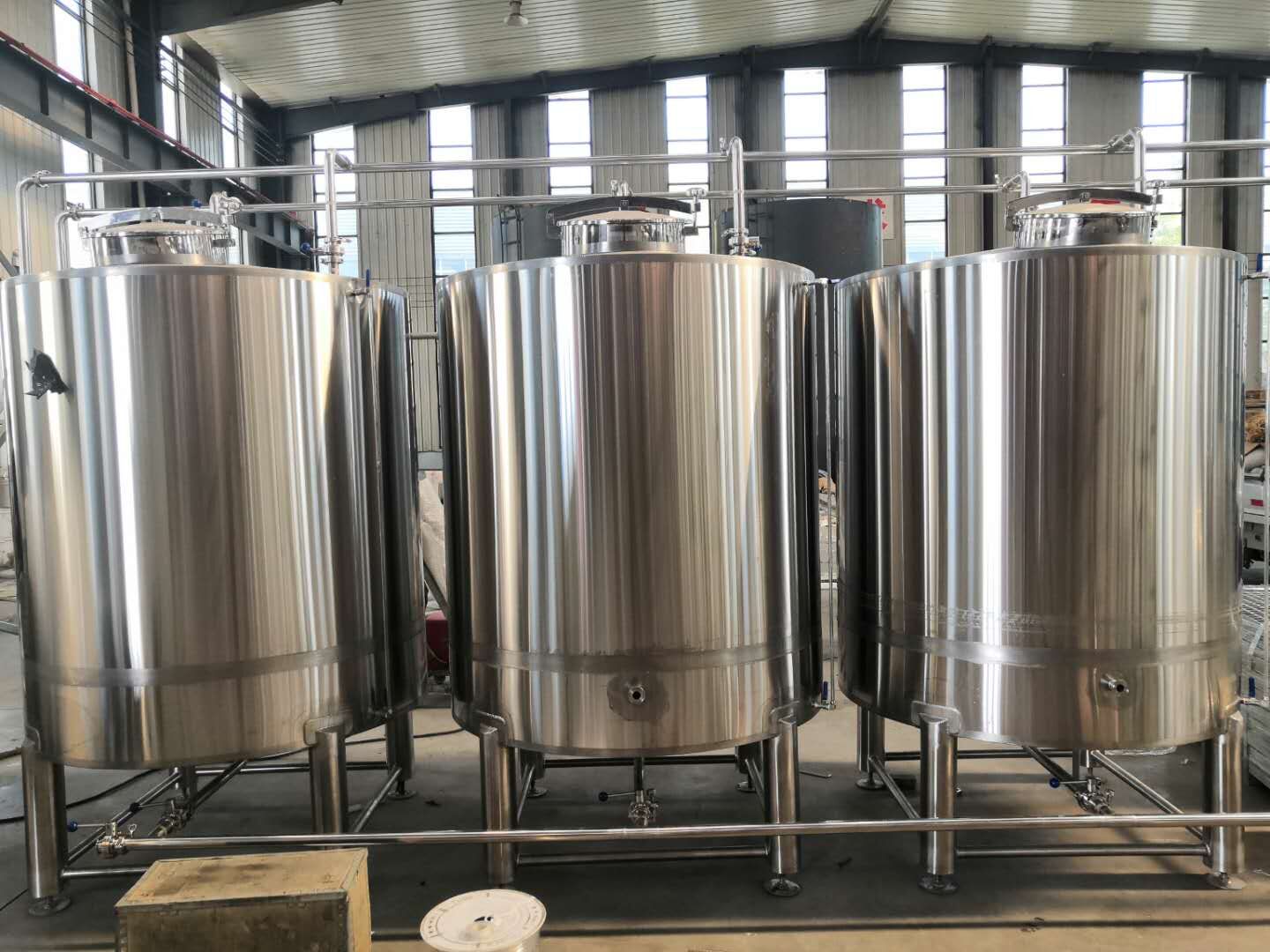

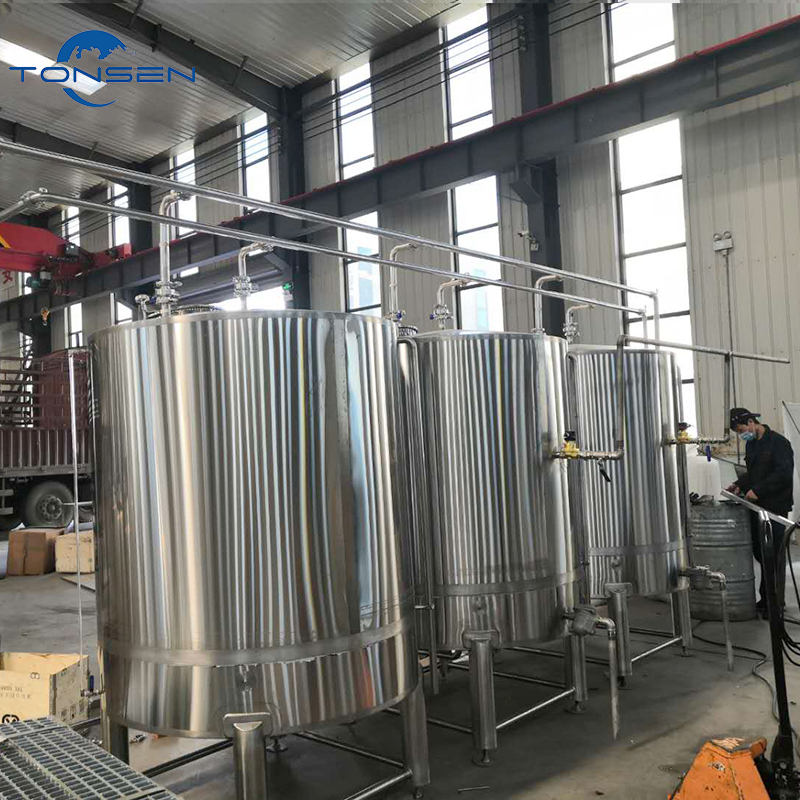

2000L CIP tanks cleaning system for brewery
Cip-System is the tank-cleaning device for the rapid automation process. Pre-set system controls the cleaning process from the beginning to the end. It is simple, fast, and cleans thoroughly.
The CIP System normally including Acid tank, caustia alkaine tank, and hot water tank one for each, the recycling of detergents and adjustment of temperature, and liquid level are preset.
There are two operation type of CIP system, Manual and Automatic.
We could also customize CIP system according to your drawing / requirement
Tel: +8618660395833
E-mail:info@tonsenbrew.com
Contact us

- Product Description -

2000L CIP tanks cleaning system for brewery,1000L 2000L 3000L tank washing station Automatic control CIP cleaning machine,

CIP cleaning system 2000l CIP for brewery tank cleaning.Cip-System is the tank-cleaning device for the rapid automation process. Pre-set system controls the cleaning process from the beginning to the end. It is simple, fast, and cleans thoroughly.

The CIP System normally including Acid tank, caustia alkaine tank, and hot water tank one for each, the recycling of detergents and adjustment of temperature, and liquid level are preset.

There are two operation type of CIP system, Manual and Automatic.

We could also customize CIP system according to your drawing / requirement

CIP cleaning system used to clean beer/wine brewing tanks (fermentation tank, mashing tun, lauter tun, ince water tank etc) automatically.

20HL CIP (3).jpg

20HL CIP  22227单.jpg

20HL CIP 22227.jpg


500L CIP 20190507093732.jpg

500L CIP 系统.jpgControlled by PLC system.

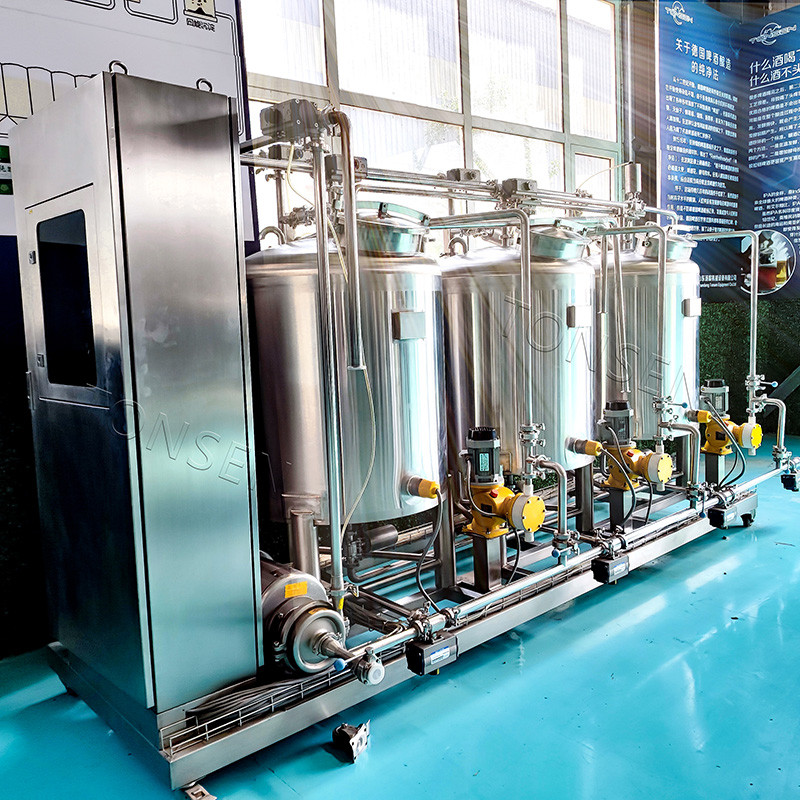

CIP cleaning system include Iye tank, Hydrogen peroside tank, valves and PLC control cabinet. If tank capacity is small, tank could be fixed in small conveying trolleys. After cleaning with CIP cleaning system, there is no water, no savor, no dirt in all tanks. This system is easy to operate and enjoy high security.

It is devided into 2 types: 2 tanks CIP system and 3 tanks CIP system. The tank capacity could be chosen based on your actual requirement. General speaking, tank capacity: 100L 150L 300L 500L 800L etc....


Automatic stainless steel CIP Cleaning Tank System and CIP Washing Machinery
MaterialSUS304, 316L
ConfigurationCIP spraying ball and pipe at the side of the tank,outlet with valve,temperature gauge ,Butterfly valves,heater, pump ,view sight

*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.


Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT


Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed


Oxygenator

Working Platform

Brewhouse Pipelines and Valves


Optional:

Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter


*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.


*Tonsen Bright beer tank/Serving Tank:

Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL

Type: veritical type, easy cleaning; horizontal type, space saving

Design pressure: 0.3Mpa

Working pressure: 0.2Mpa

Materials: 304 Stainless Steel/316 Stainless Steel Option

Control System, CIP arm and 360° spary ball

5000L 50HL Side Manhole Jacketed SS Double Wall Brite Beer Tank for Sale


Brewery Equipment RequestComponents
Milling systemMalt Miller
Brewhouse SystemMash/Lauter/Boiler/Whirlpool Tank/Hot water tank
Wort pump
Heat exchanger
Steam boiler (optional)
Platform and Other accessories are matched
Fermenting systemFermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers
Cooling systemChiller and Glycol water tank (Ice water tank, cold water tank)
CIP SystemSterilization tank & Alkali liquor tank & CIP pump
Control systemPID or PLC (SIEMENS program) as option
Packing systemBottling/canning/kegging machine
Trade TermEXW, FOB, CRF, CIF
Payment TermT/T in advance

Output/Brew5HL8HL10HL15HL20HL25HL30HL35HL50HL
Brew/Week2~6
Output/Week10~30HL16~48HL20~60HL30~90HL40~120HL150~300HL180~360HL210~420HL240~360HL
Area Request<45㎡<60㎡<70㎡<90㎡<120㎡<140㎡<150㎡<180㎡<150㎡
Brew master111-21-22-32-33-53-53-5
MaterialInterior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper
HeatingElectric/Steam/Direct fire for optional
Voltage3 phase/380(220, 415,440...)v/50 (60)Hz


CIP tanks.jpg
