Choose the Right Brewhouse System for Your Brewery

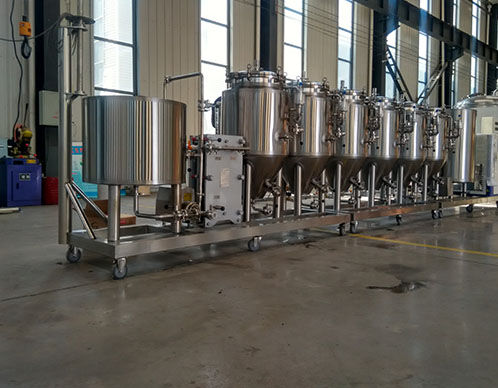

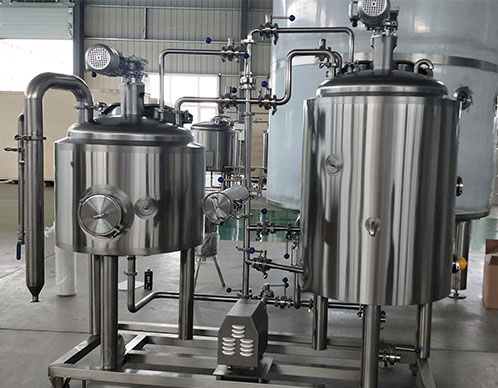

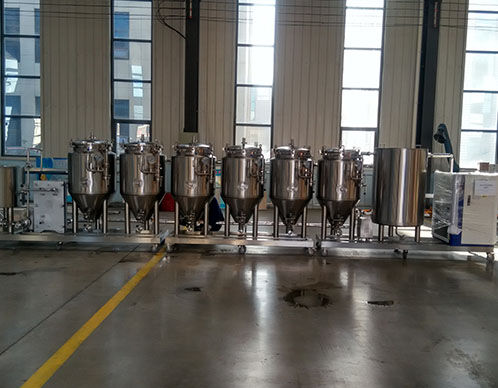

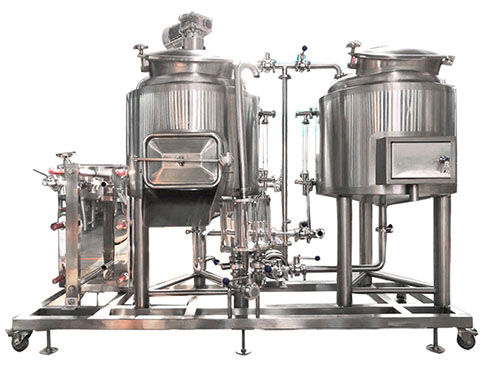

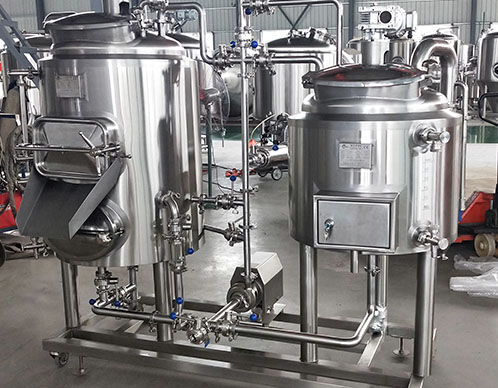

Core Features of the 200L Pilot Brewhouse

• 2- or 3-vessel brewhouse (mash/lauter + kettle/whirlpool, optional HLT)

• Electric or steam heating options based on site requirements

• Touchscreen PLC or semi-automatic controls for temperature, pump, and timing

• Integrated CIP spray balls for easy internal cleaning

• High-efficiency plate heat exchanger

• Compact skid-mounted design for easy relocation or modular expansion

• Glass top or LED-lit sight glass for training and visual inspection

What’s Included?

• 200L brewing system (2 or 3 vessels)

• 200L fermentation tanks (conical with cooling jacket)

• Optional bright beer tank

• Heat exchanger and wort aeration

• Mini CIP system

• Glycol chiller or ice bank

• Manual or touchscreen control panel

• Pumps, valves, clamps, and platform

Frequently Asked Questions

Q: Can this system simulate a full-scale brewing process?
A: Yes. The 200L pilot brewhouse mimics all key steps — from mashing to fermentation — just on a smaller, cost-effective scale.

Q: Is it suitable for commercial beer sales?
A: Absolutely. It's built to the same sanitary and quality standards as our full-size systems.

Q: Can I customize the configuration?
A: Yes, from heating type to number of fermenters and control type — all is tailor-made.

Q: Is this system movable?
A: Yes. Skid-mounted design allows relocation inside facilities or pilot spaces.

Other details

Whether you're starting a brewpub, launching a pilot system, or upgrading your craft brewery, selecting the right brewhouse system is a key step. Below we break down the most popular brewhouse configurations — 2-vessel, 3-vessel, and 4-vessel systems — and introduce our best-selling 100L microbrewery system with electric heating.

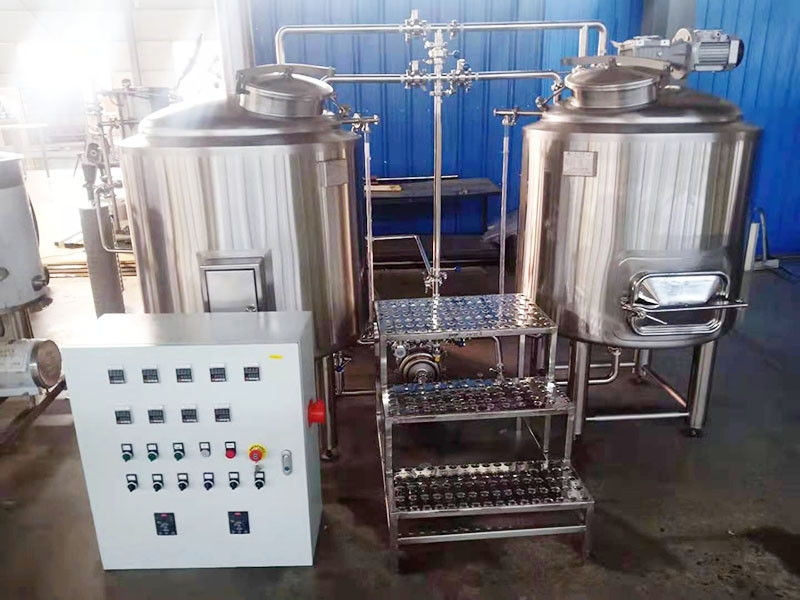

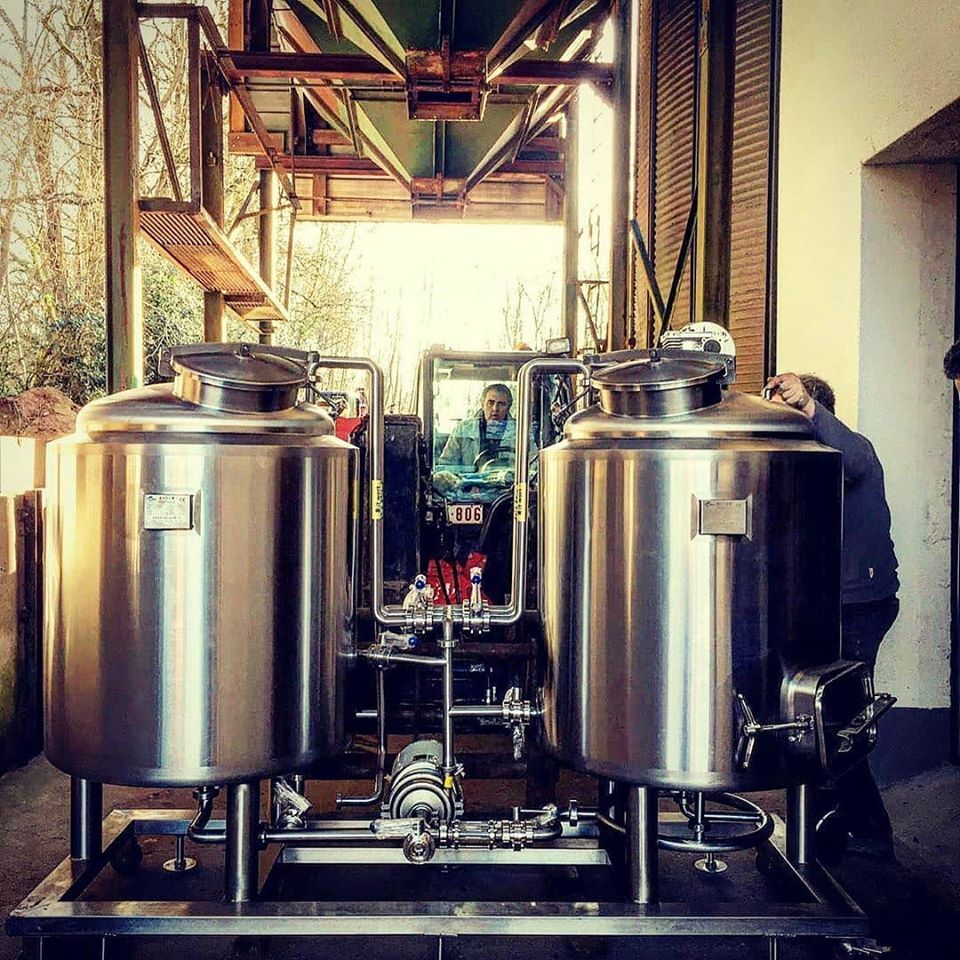

2-Vessel Brewhouse System

The 2-vessel brewhouse combines key brewing processes to save space and simplify operation:

• Mash/Lauter Tun: Used for mashing and lautering, this vessel is designed for optimal grain-out and efficient filtration.

• Kettle/Whirlpool Tank: Functions as a boil kettle and whirlpool, equipped with a tangential inlet for effective wort separation.

This compact system is ideal for:

• Brewpubs

• Pilot breweries

• Educational or test brewing labs

3-Vessel Brewhouse System

The 3-vessel setup offers a balance of efficiency and flexibility. It typically includes:

• One combined tank (usually mash/lauter)

• One boil kettle

• One dedicated whirlpool tank

This system allows for faster batch turnover and improved process control while remaining compact and cost-effective.

4-Vessel Brewhouse System

The 4-vessel system is built for serious production. Each process is isolated in its own tank:

• Mash Tun

• Lauter Tun

• Boil Kettle

• Whirlpool Tank

Benefits:

• Shorter brew cycles

• Higher consistency

• Full control over each brewing phase

Featured Equipment: 100L Microbrewery System (Electric Heated)

Looking to start small with maximum reliability? Our 100L electric brewhouse system offers a turnkey solution.

Configuration Includes:

• 2-vessel brewhouse (Mash/Lauter + Kettle/Whirlpool)

• 3 × 100L Fermenters

• 1 × Bright Beer Tank

• Glycol Water Tank & Chiller

• Automatic Control Cabinet

• All connecting pipes, valves, and accessories

Heating Option: Electric

• Energy efficient

• Compact design

• Easy installation — perfect for restaurants, bars, and indoor breweries

This system is designed for breweries producing up to 300–500L/month depending on cycle and demand.

Why Work With Us?

• CE-certified stainless steel equipment

• Full technical support from design to installation

• Customization available for layout, heating method, and tank count

• Over 10 years of experience serving breweries in Europe, North America, and Asia

100L Micro Brewing System Configurations:
