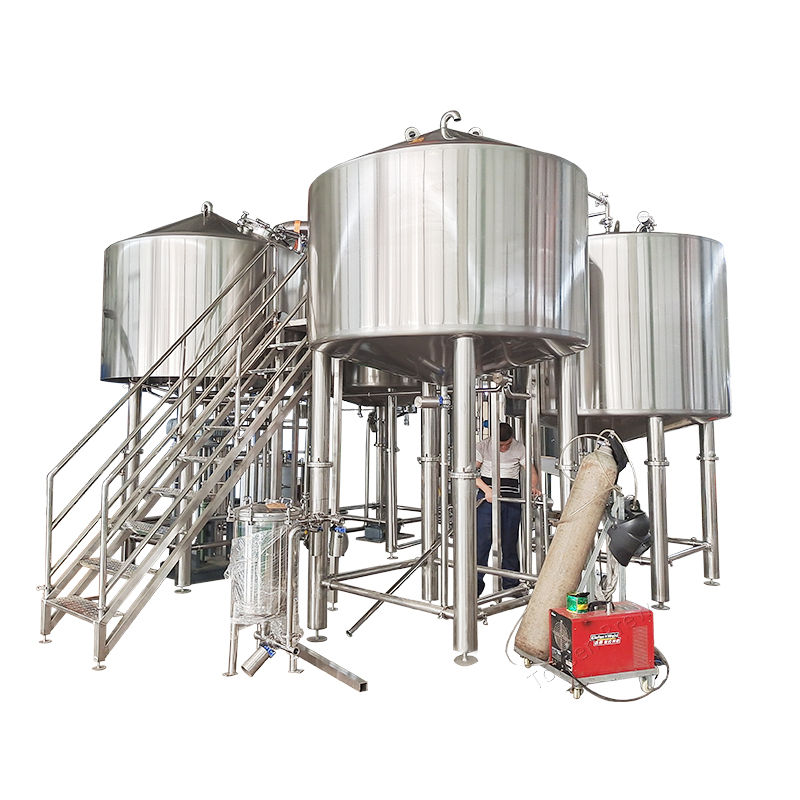

2000L Brewery System
Brand:Tonsen
Location: China
Model:2000L
Payment : T/T,L/C ,Credit Cards & Alipay,Paypal
Production:20-50 days depending on model and quantity
Shipping: Fastest delivery
2000L Beer Brewing Equipment is designed for brewing craft beer with commercial purposes for Craft brewery, microbrewery, brewpub, taproom and restaurant.Brewer friendly design, the brewers will find it easy to brew an outstanding full-types beer like Ale, Lager, Stout, IPA, etc. by using our brewery equipment under guidance.
Official Email: info@tonsenbrew.com
Tel: +8618660395833
WhatsApp: +8618660395833
Message

- Product Description -



FEATURES

  • We plan and design complete breweries, all systems can be designed with the client’s input for a defined process;

  • A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash mixer – lauter, kettle – whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks);

  • Fully piped and wired, including valves and sensors;

  • Integrated pump system;

  • CIP system: separated CIP for individual tanks to prevent cross product interference;

  • Master brew interface control system (touch screen control panel),

  • Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;

  • Automated lautering, automated water mixing

  • High quality insulation effect: Rock wool thickness: 80mm

  • Beautiful weld and polish: all argon gas protection welding. Polishing precision up to Ra0.6µm

  • World's top brands' electronic components: siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.

  • Good abrasion resistance material: inner-Jacket(SUS304)thickness: 3.0mm; external-Jacket thickness: 2.0mm; seal head thickness: 3.0mm

  • Fermentation Unit: standard stainless steel conical cylindrical fermentation tanks; tanks quantity is exactly calculated by fermentation cycle for various beers; all manhole, valves, pressure gauges, fittings etc are included

  • Bright Tank Unit: standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation; tanks quantity is exactly calculated for various beers and the function; all manhole, valves, stone, gauges, fittings etc are included

  • Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; efficiency chillers or refrigerators with fryonto supply cooling energy; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included

  • Controlling Unit: electrical controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request


PARAMETERS

ModelTS-2000
Capacity2500L/Batch
MaterialSUS304
Combination methodMash tun, Lauter tun, Kettle/whirlpool tank
ApplicationRestaurants, bars, hotels, brewery
Heating wayElectric heating/Steam heating/Direct fire heating
VoltageAC380/220V, 50/60HZ
PowerElectric heating:144kw, Steam heaing/Direct fire heating 55KW
Water consumption4m3/T
Diameter1960mm
Height3200m
Floor area60m2
Degree of automationSemi-automatic/Fully automatic


MODELS & SPECS

ItemProduction capacityVolume in US GallonHeating areaTank diameter Height
TS-500500L/day132 US Gallon0.5m21160mm2400mm
TS-600600L/day158 US Gallon0.6m21160mm2500mm
TS-700700L/day185 US Gallon0.7m21260mm2500mm
TS-800800L/day212 US Gallon0.8m21260mm2500mm
TS-10001000L/day264 US Gallon1.0m21360mm2800mm
TS-15001500L/day396 US Gallon1.5m21560mm2900mm
TS-20002000L/day528 US Gallon2.0m21960mm3150mm
TS-25002500L/day660 US Gallon2.5m21960mm3200mm
TS-30003000L/day792 US Gallon3.0m22060mm3800mm
TS-50005000L/day1320 US Gallon5.0m22260mm4400mm


Tonsen’s Services

  • Comprehensive Value and Quality:

Tonsen not only ensures that customers get value for their money, but also that the equipment they provide meets high quality standards.

  • Proper Equipment Sizing and Type:

We have a professional customization service that provides free, professional guidance on choosing the right size and type of equipment to meet your specific brewing needs.

  • Reliable Customer Service:

Tonsen has excellent customer service, including prompt responses to inquiries and ongoing support, which is unanimously recognized by customers.

  • One-Stop Service:

Tonsen offers a comprehensive service, including everything from initial consultation to installation and maintenance.

  • Installation Services:

We have years of experience professionally installing brewing equipment to ensure proper setup and operation.

  • Maintenance and After-Sales Support:

We will provide ongoing maintenance services and reliable after-sales support to ensure that there are no problems affecting customer use.


- Details -

Beer equipment system details.jpg

- Certificate -

Beer equipment certificate.jpg

- Customer Reviews -

Customer testimonials.jpg
