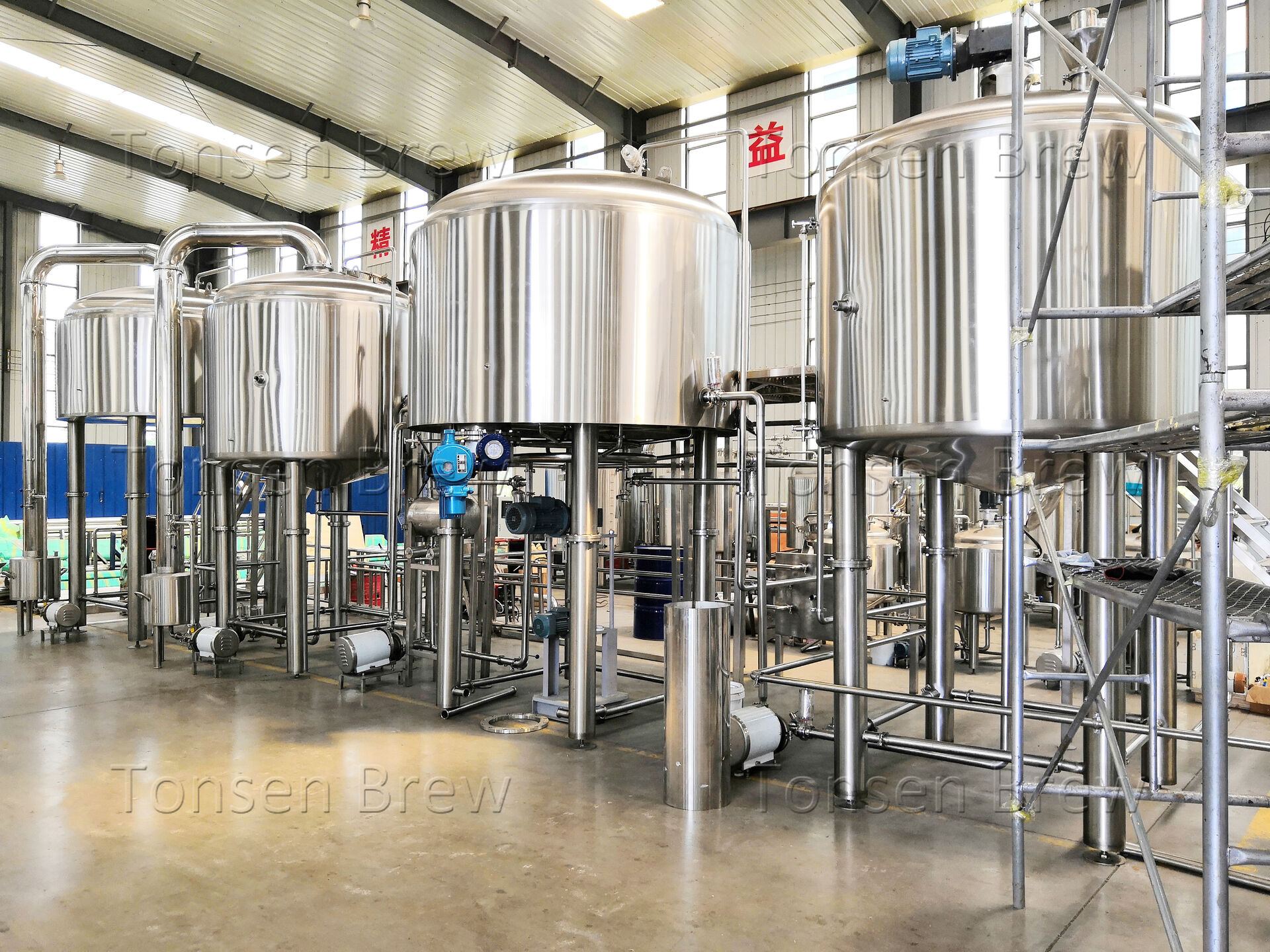

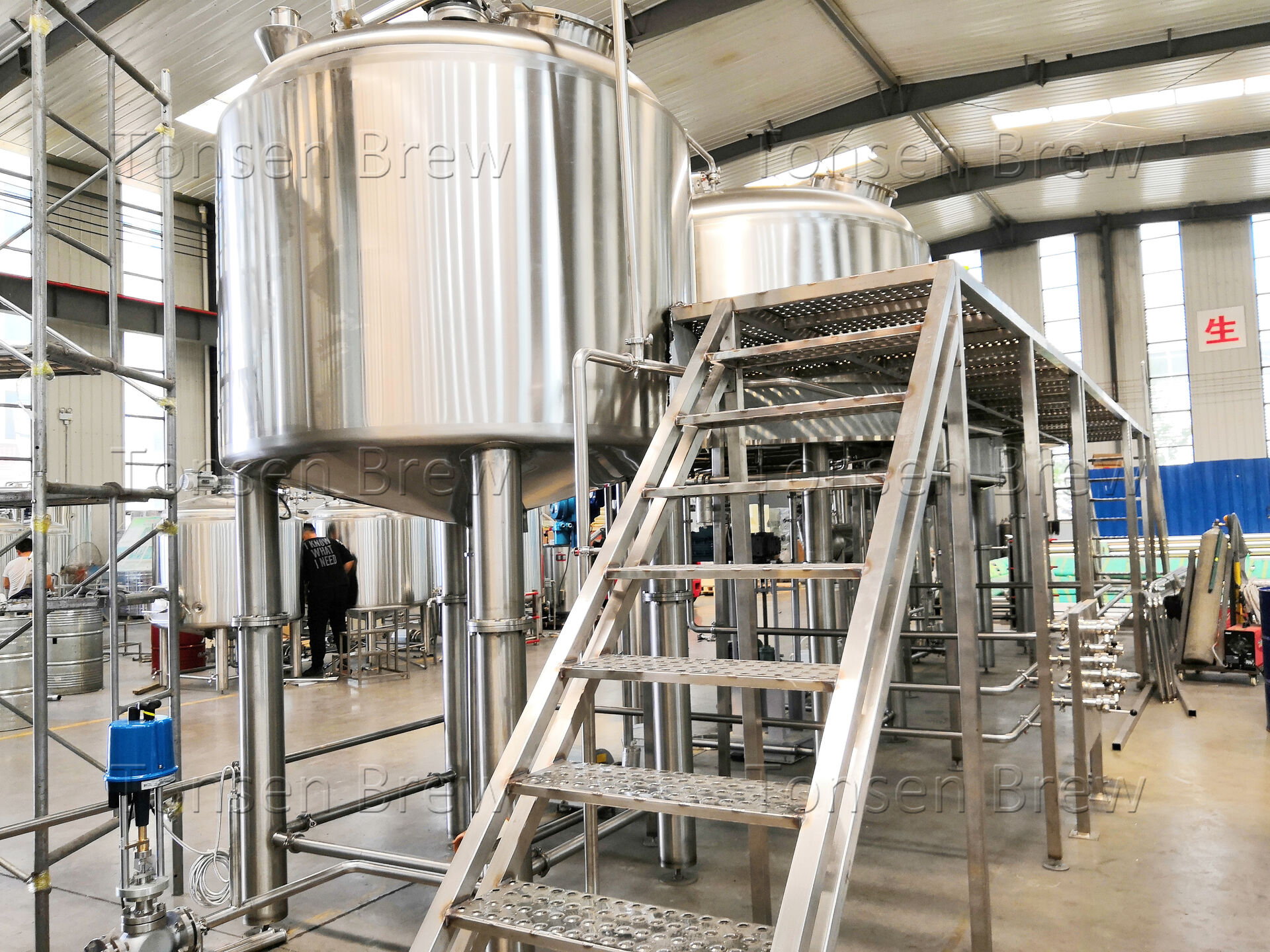

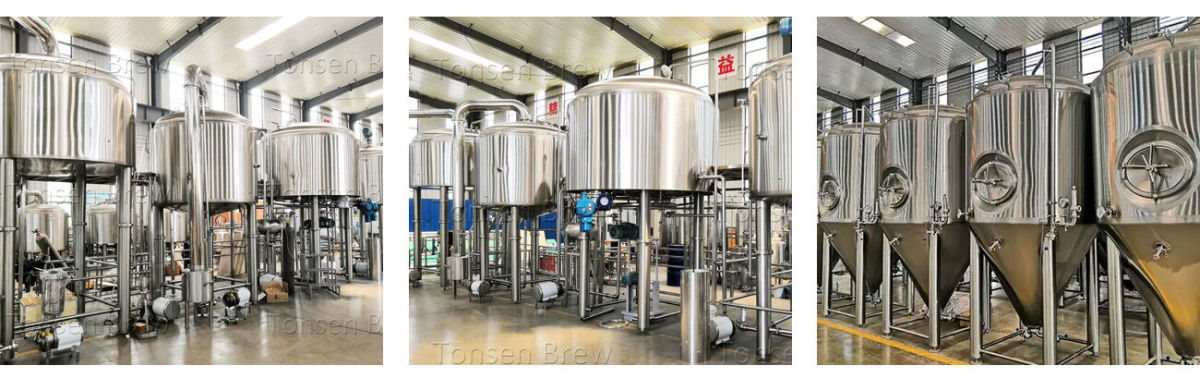

20BBL Brewing Equipment – The Perfect Mid-Sized Brewery Solution

What’s Included in the Full System?

• 20BBL Brewhouse (2/3 vessel)

• Hot & Cold Liquor Tanks

• Wort heat exchanger & aeration unit

• 20BBL Fermentation Tanks (conical, pressure-rated)

• Brite Beer Tanks (carbonation-ready)

• Glycol Chilling System

• CIP Cart (alkali & acid tanks + pump)

• Piping, clamps, valves, platform

• Control Panel (manual or PLC-based)

• Optional grain mill, auger, keg washer

FAQ – 20BBL Brewing System

Q: How much beer can I brew daily?
A: With double-batch capability, you can brew 40BBL per day depending on fermentation tank availability.

Q: Is this system compliant with global standards?
A: Yes, all systems are CE, UL, or CSA compliant upon request. Materials are food-grade and tested.

Q: Can I automate the system later?
A: Yes. Control systems are upgradeable from manual to semi-automatic or full PLC/SCADA.

Q: What is the lead time?
A: 30–45 working days depending on customization and tank quantity.

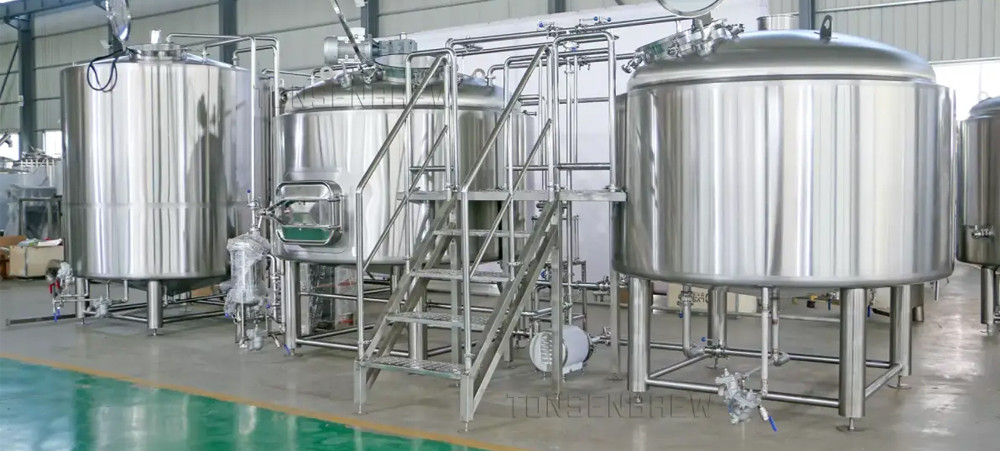

Key Features of the 20BBL Brewhouse

• Two to Three-Vessel Configuration: Options for mash/lauter tun, kettle/whirlpool, and hot liquor tank

• Steam, Electric, or Direct Fire Heating: Configurable based on utility availability

• Semi-Automated Control System: PID or PLC with touchscreen for pump/valve/temp control

• Glycol Cooling System: Includes chiller, buffer tank, glycol loop, and sanitary pump

• High-Efficiency Heat Exchanger: Fast wort chilling and hot water energy recovery

• CIP System Included: Integrated tanks and spray balls for automated internal cleaning

• Polished Welds & Hygienic Design: Internal Ra ≤ 0.6μm, external Ra ≤ 0.8μm

TonsenBrew Brewhouse Unit (2BBL-50BBL)

1. Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

2. Hot water tank and cold water tank for optional in special combinations

3. Infusion or decoction brewing methods are designed exactly

4. Stainless steel or copper cladding are popular

5. Two stages or single stage heat exchanger for wort cooling

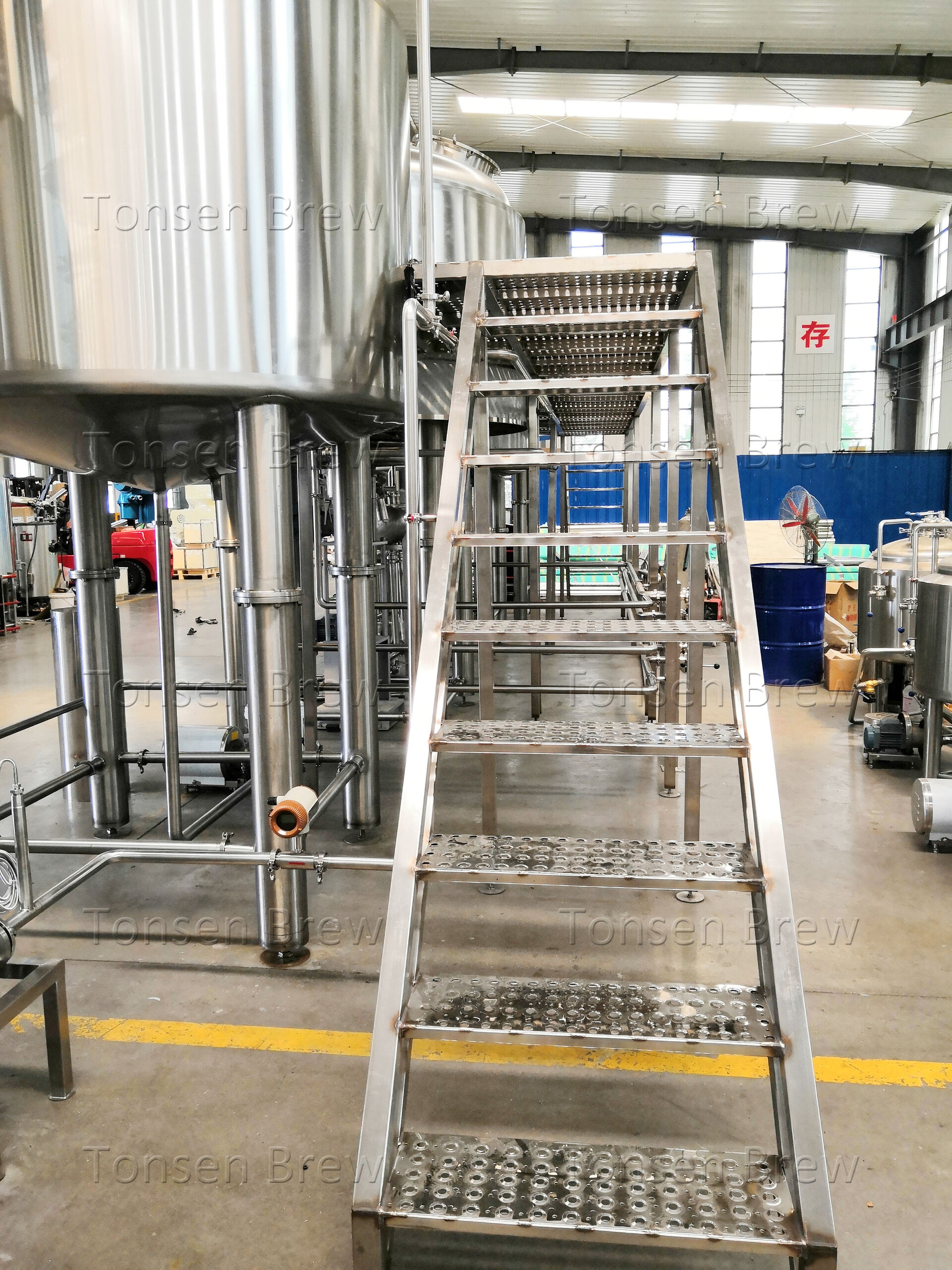

6. Completely stainless steel integrated work platform

7. Sanitary and efficiency wort pump

8. All pipings and fittings

TonsenBrew Fermentation Unit (2BBL-100BBL)

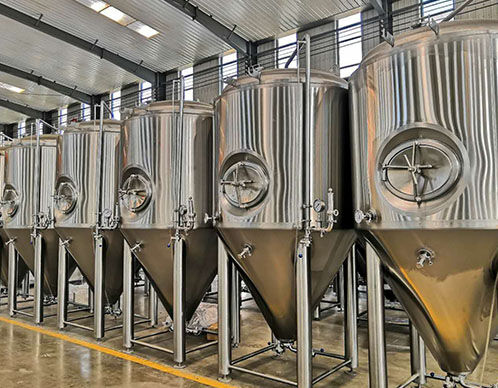

1.Standard stainless steel conical cylindrical fermentation tanks

2. Single size as brewhouse is common used in restaurant
3. Tanks quantity is exactly calculated by fermentation cycle for various beers
4. All manhole, valves, pressure gauges, fittings etc are included

TonsenBrew Bright Tank Unit (2BBL-100BBL)

1. Standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation

2. Single size as fermenter is common used in restaurant or bar

3. Tanks quantity is exactly calculated for various beers and the function

4. All manhole, valves, stone, gauges, fittings etc are included

Warranty:

Equipment warranty includes tank warranty, electric parts warranty, auxiliary parts warranty, etc. .
1. Tonsen provides 3 years warranty for the main tank, 1 year warranty for electrical components and auxiliary parts, etc., and lifetime after-sales service.
2. In order to ensure the normal operation of the brewery, we can provide a separate set of spare parts according to the customer’s request, customers can replace parts in case of abrasion damage.

Maintenance:

During operation, daily maintenance for the equipment is important. TonsenBrew  will provide maintenance guide., if need, we can send engineer to customer’s site for repair and maintenance.

Beer equipment model selection:

1. Based on years of experience, TonsenBrew  can provide standard models of beer brewing equipment. We have mature experience in brewing technology and equipment design.
2. Tonsen can provide custom-made service as per customer’s requirement. including customize brewhouse system, fermentation tank, brite beer tank, coffee equipment, whiskey distillation equipment, stainless steel tank, etc.

Brewery design:

TonsenBrew  can help to design layout for newly built brewery, and we will supply P&ID drawings, electrical connection diagrams,flow chart, tank drawings, etc. , 3D drawings are also available if needs.

Installation:

TonsenBrew has experienced technical engineers, we can provide on-site installation and debugging instruction as per customer’s needs.
1. To ensure good after-sales service, we will appoint the same technical personnel to debug and load the equipment before delivery,
2. For single tank, if on-site installation service is unnecassary, TonsenBrew will provide equipment drawings and installation guides so that customers can install by themselves.

Based on the philosophy of “leading technology, excellent quality, and perfect service”, TonsenBrew will continue to catch up with the world’s advanced design level, build the core technology of China’s intelligent manufacturing, and seek common development with customers, employees, and suppliers!

Cheers!
