• Bright Beer Tank

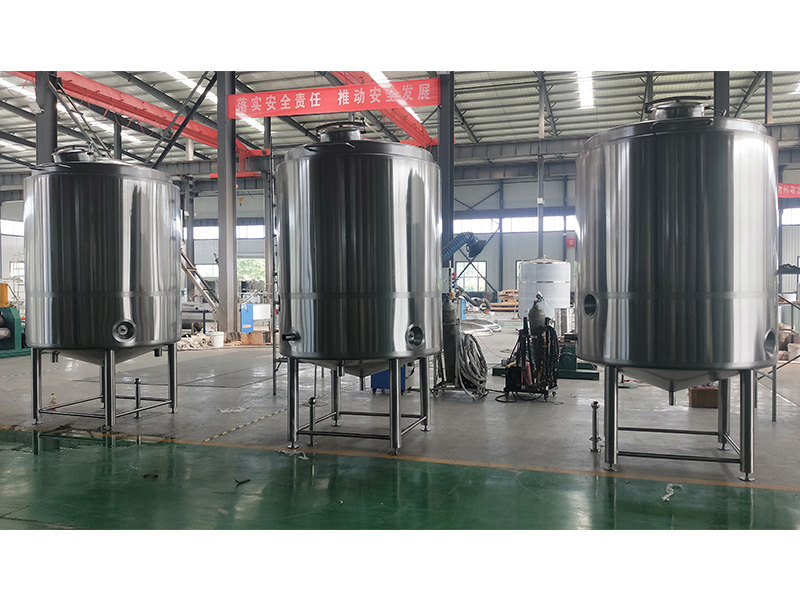

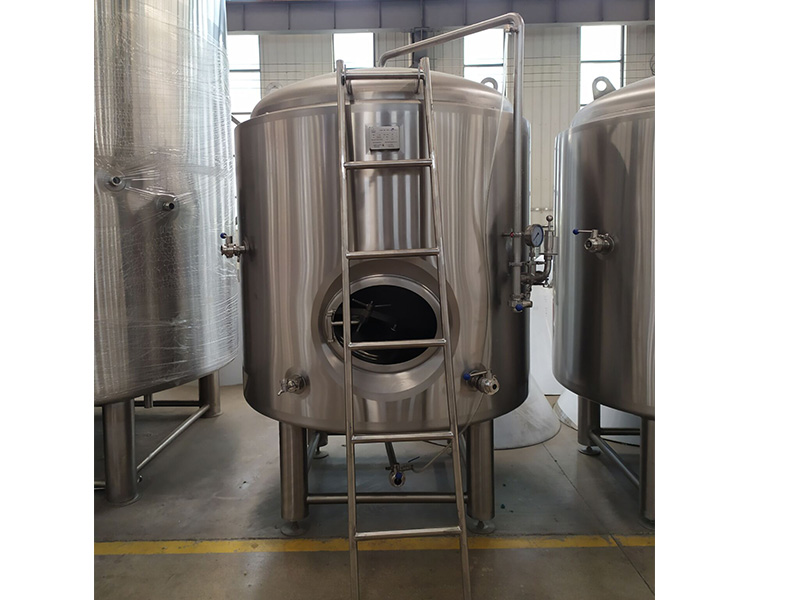

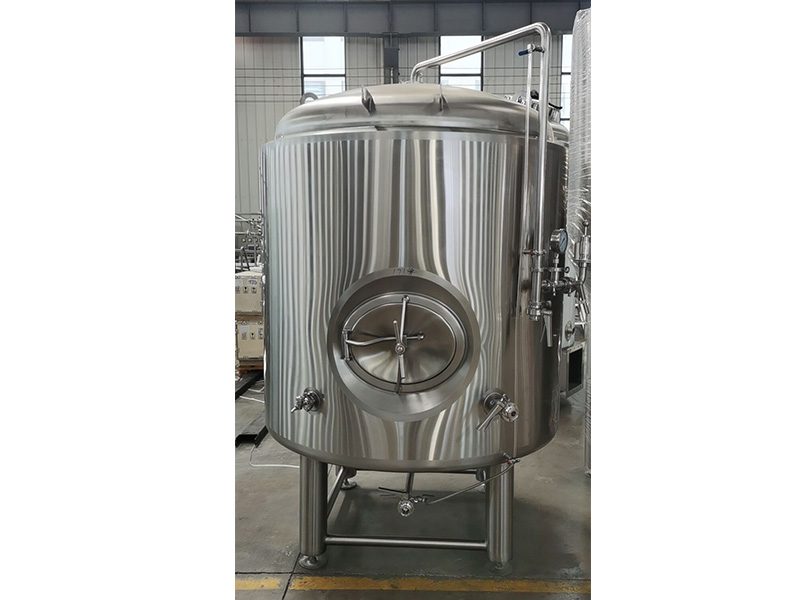

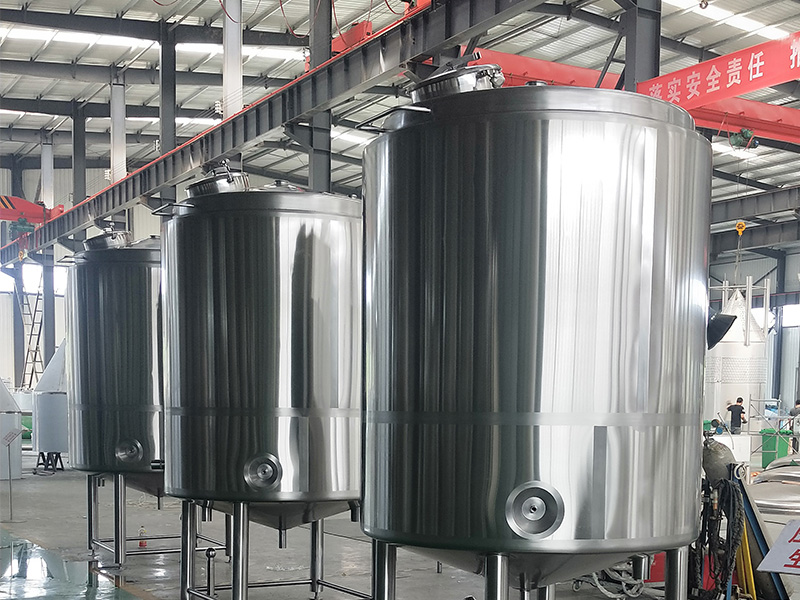

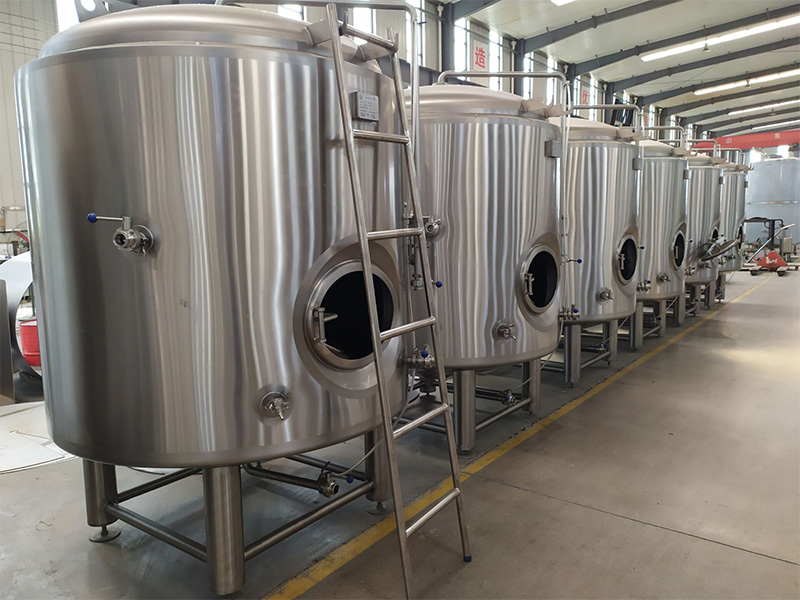

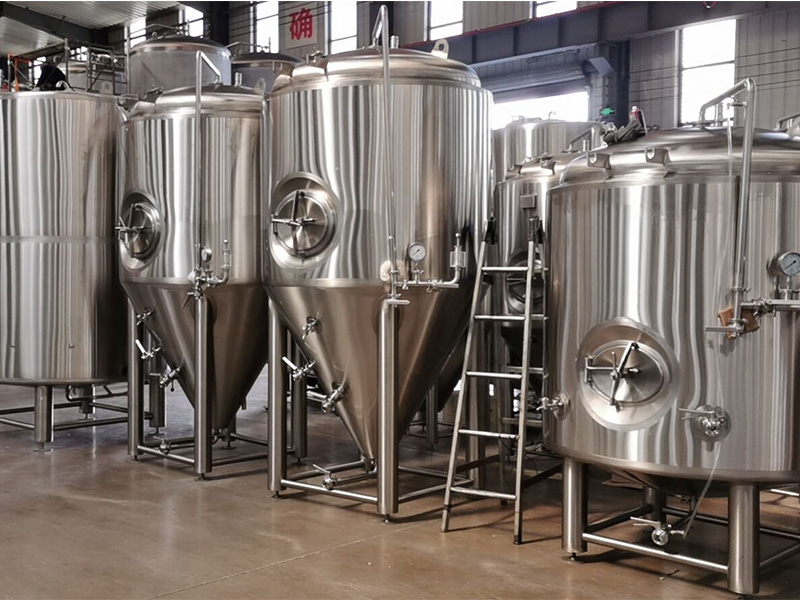

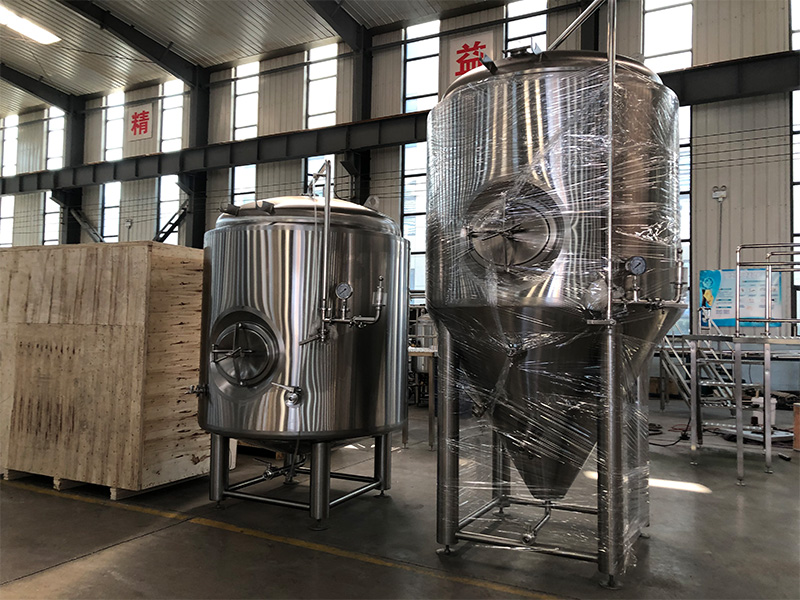

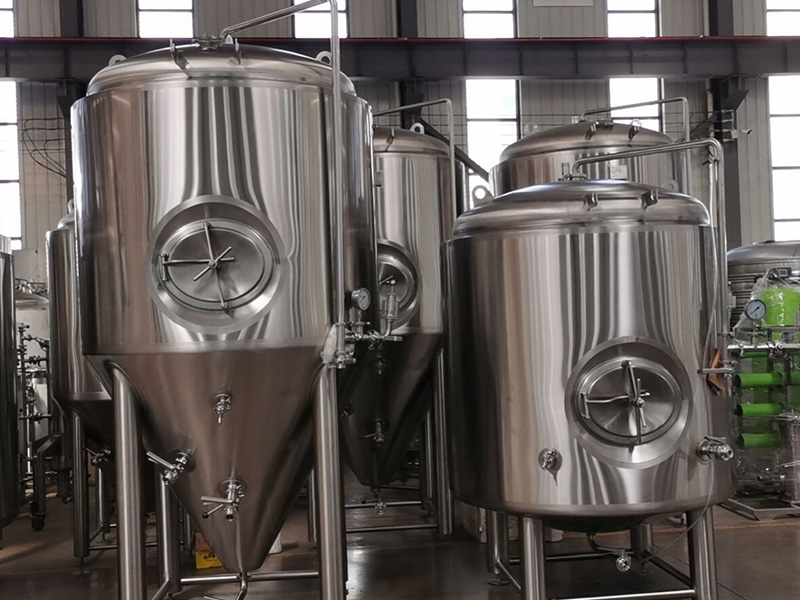

2000L Bright Beer Tank
Function: Beer maturation / conditioning / serving / filtered beer receiving
The bright tanks are tanks for storing live beer. After the beer is fermented and matured, the yeast and another turbidity in the fermentation broth need to be filtered to make the beer clear and bright. After the fermentation broth is filtered, it is called "bright beer". Let the packaging department bottling into beer finished products. We know that bright beer tank is the last vessel that beer comes in contact with to become a beer that is perfectly matured, clarified and ready to be packaged and served.
Tel: +8618660395833
WhatsApp:+86 15318828821
E-mail: candy@tonsenbrew.com
Contact us

- Product Description -

2000L Bright beer tank/Serving Tank

Function: Beer maturation / conditioning / serving / filtered beer receiving
The bright tanks are tanks for storing live beer. After the beer is fermented and matured, the yeast and another turbidity in the fermentation broth need to be filtered to make the beer clear and bright. After the fermentation broth is filtered, it is called "bright beer". Let the packaging department bottling into beer finished products. We know that bright beer tank is the last vessel that beer comes in contact with to become a beer that is perfectly matured, clarified and ready to be packaged and served.
Depending on their application , the beer serving tanks can be glycol jacketed or can be located in a cold room.
For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.
In most breweries, the beer will be filtered after leaving the larger container and sent into bright tanks. If you want to force carbonation of bright beer, the beer can be carbonated in a fermentation tank or storage tank. In this case, the beer should be completely filled with carbonic acid to reach the bright tank.
The 2000L bright beer tank is usually used for beer maturation, secondary fermentation, beer storage, beer filling, addition & mixture of other spices, beer carbonation and beer serving etc.
As a mature brewery, brite beer tank tanks are essential.
Bright beer tanks are often also called serving tanks, clear beer tanks (=CBTs), bright beer tanks (=BBTs), maturation or conditioning tanks.

Our 2000L 20HL Brite Beer Tanks are actually and made according to the principle of beer brewing technology.
Function:Wort Fermentation or maturation
Useful capacity: 2000L
Interior Shell:SUS304 Stainless Steel,thickness: 3.0mm;
Exterior Shell:SUS304 Stainless Steel,thickness: 2.0mm;
Insulation: Polyurethane-thickness:80mm
Interior Finish: Overall polishing to 0.4 μm without dead corner
Cooling jacket: Dimpled plate on cone and side, thickness: 1. 5mm
Cooling media: glycol water or alcohol water.
Stringent tank and Jacket leakage test by water and pressured gas
Test Pressure:0.3~0.4 Mpa, Working pressure 0.2~ 0.3 Mpa.
Equiped with Carbonation stone and port for filling CO2
Tri clamp discharge arm with butterfly valve
100% TIG welding with pure argon gas shield
CO2 blow-off arm with butterfly valve
CIP arm with 360 coverage CIP spraying ball
Thermowell with high accuracy temperature sensor: PT100
Cooling control Square table control, single tank single control
4pcs completely SUS304 heavy duty legs with leveling pad and legs support
Other configurations Negotiable for option


*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.


Heating Methods: Electric, Steam, Gas fired
Vessels: 2/3/4/5 Vessels;
Regular: MLT+BKW+HLT


Plate Heat Exchanger
Motor: CE/UL Listed
Pumps: CE/UL Listed


Oxygenator
Working Platform
Brewhouse Pipelines and Valves


Optional:
Grist Case
Wort Buffer Tank
Hop Back
Platform with Sink
Flowmeter


*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.


*Tonsen Bright beer tank/Serving Tank:

Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL
Type: veritical type, easy cleaning; horizontal type, space saving
Design pressure: 0.3Mpa
Working pressure: 0.2Mpa
Materials: 304 Stainless Steel/316 Stainless Steel Option
Control System, CIP arm and 360° spary ball
5000L 50HL Side Manhole Jacketed SS Double Wall Brite Beer Tank for Sale


Brewery Equipment RequestComponents
Milling systemMalt Miller
Brewhouse SystemMash/Lauter/Boiler/Whirlpool Tank/Hot water tank
Wort pump
Heat exchanger
Steam boiler (optional)
Platform and Other accessories are matched
Fermenting systemFermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers
Cooling systemChiller and Glycol water tank (Ice water tank, cold water tank)
CIP SystemSterilization tank & Alkali liquor tank & CIP pump
Control systemPID or PLC (SIEMENS program) as option
Packing systemBottling/canning/kegging machine
Trade TermEXW, FOB, CRF, CIF
Payment TermT/T in advance

Brewery Equipment RequestComponents
Milling systemMalt Miller
Brewhouse SystemMash/Lauter/Boiler/Whirlpool Tank/Hot water tank
Wort pump
Heat exchanger
Steam boiler (optional)
Platform and Other accessories are matched
Fermenting systemFermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers
Cooling systemChiller and Glycol water tank (Ice water tank, cold water tank)
CIP SystemSterilization tank & Alkali liquor tank & CIP pump
Control systemPID or PLC (SIEMENS program) as option
Packing systemBottling/canning/kegging machine
Trade TermEXW, FOB, CRF, CIF
Payment TermT/T in advance

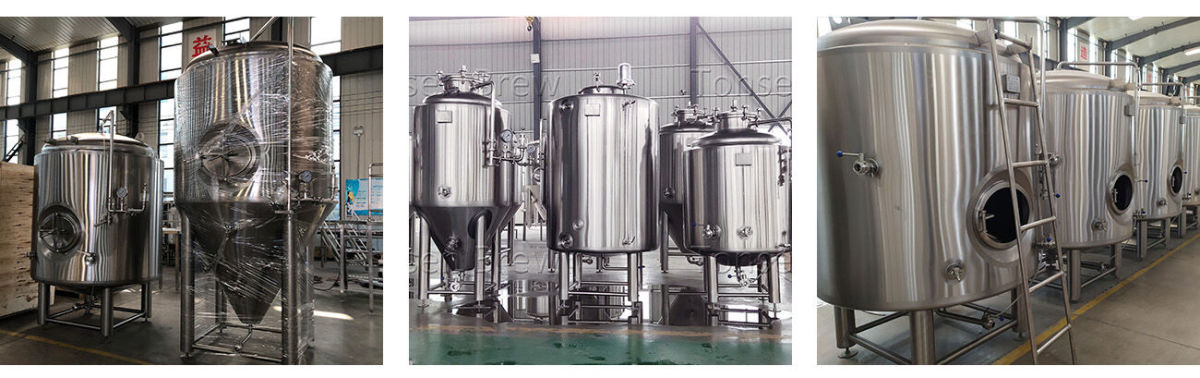

2000L Bright Beer Tank.jpg
