• Bright Beer Tank

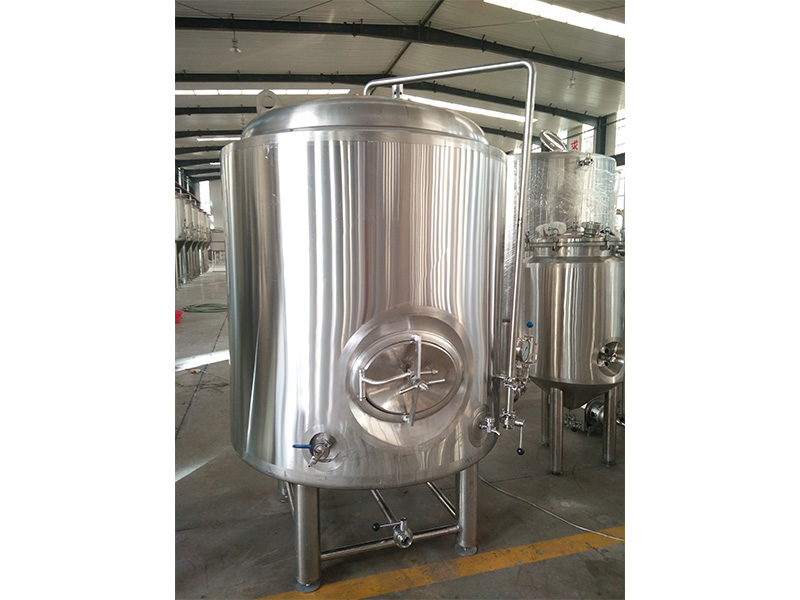

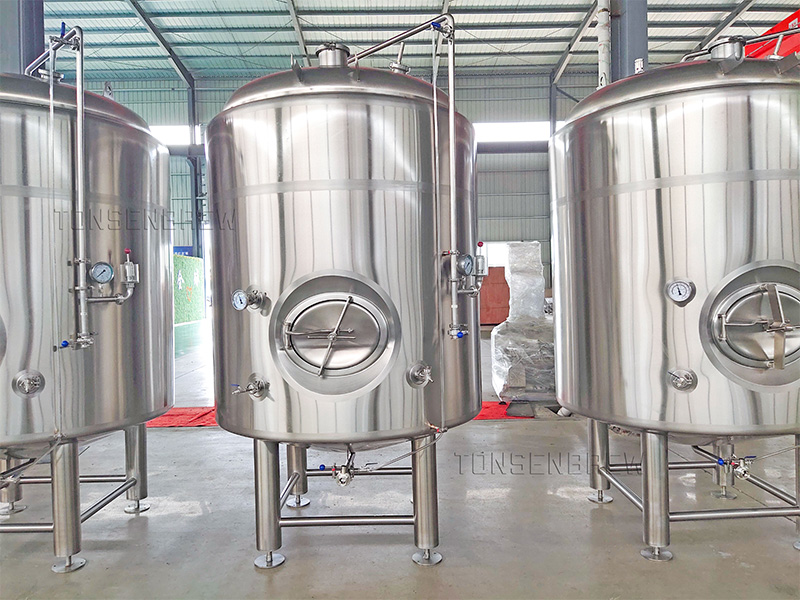

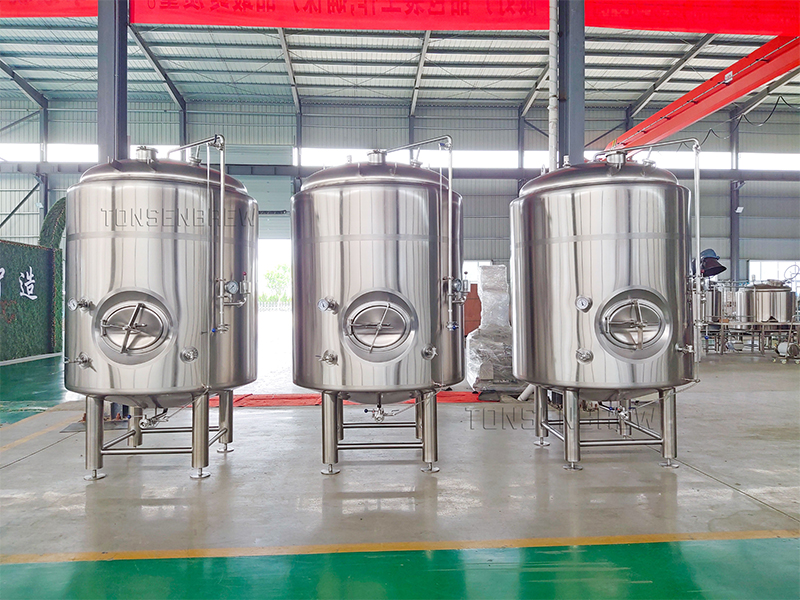

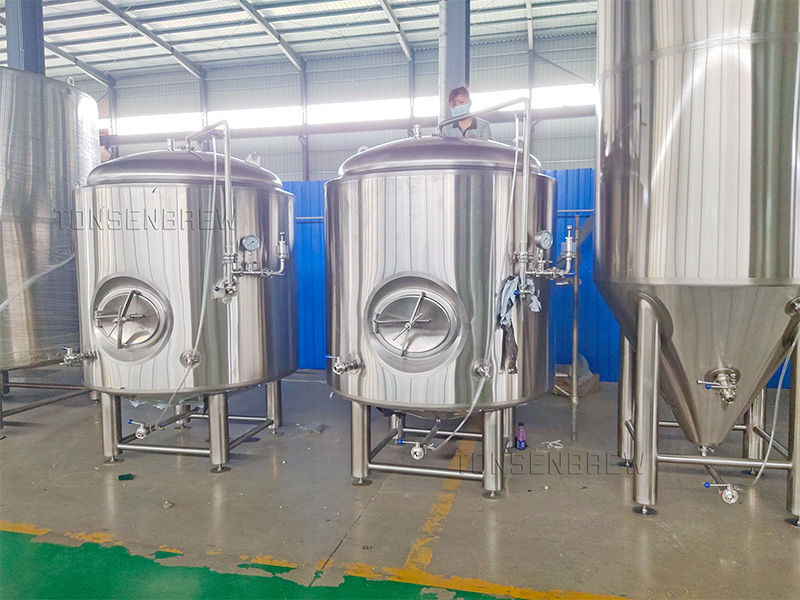

3000L Bright Beer Tank
Function: Beer maturation / conditioning / serving / filtered beer receiving
The bright tanks are cans for storing live beer. After the beer is fermented and matured, the yeast and another turbidity in the fermentation broth need to be filtered to make the wine clear and bright. After the fermentation broth is filtered, it is called "bright beer". Let the packaging department bottling into beer finished products. Sake jars are used to hold sake.
Tel: +8618660395833
E-mail: candy@tonsenbrew.com
Contact us

- Product Description -

5000L Bright beer tank/Serving Tank

Function: Beer maturation / conditioning / serving / filtered beer receiving

The bright tanks are cans for storing live beer. After the beer is fermented and matured, the yeast and another turbidity in the fermentation broth need to be filtered to make the wine clear and bright. After the fermentation broth is filtered, it is called "bright beer". Let the packaging department bottling into beer finished products. Sake jars are used to hold sake.
In most breweries, the beer will be filtered after leaving the larger container and sent into bright tanks. If you want to force carbonation of bright beer, the beer can be carbonated in a fermentation tank or storage tank. In this case, the beer should be completely filled with carbonic acid to reach the bright tank.

Useful Volume: 5000 liters

Total Volume: 6250 liters

Working Pressure: 2bar (30psi)

Thickness(mm):Interior Shell=3, Exterior Shell=2

100% TIG welding

Interior Finish: Pickled and Passivated

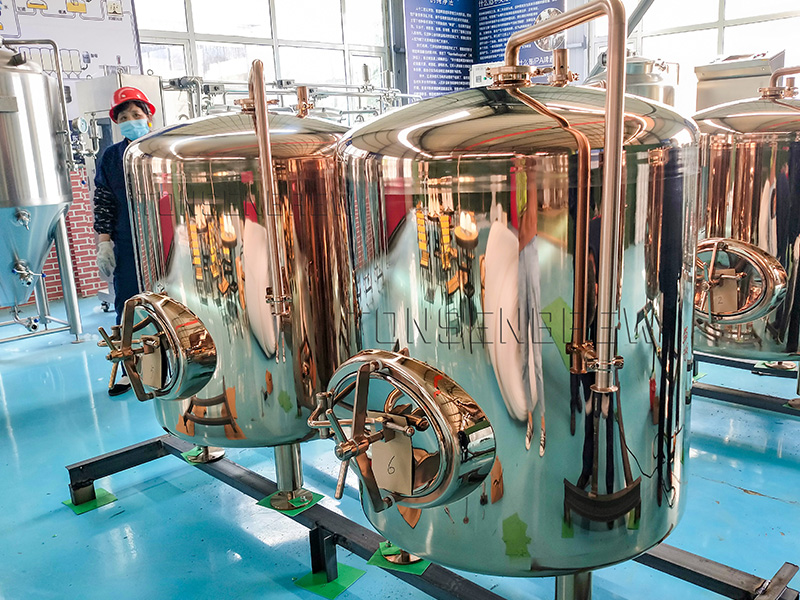

Exterior Finish: Oil brushed ,2B, 8K mirror finish or red copper

Interior Full polished: 0.2~0.4 μm

Insulation: 80mm~100mm PU(PolyUrethane)

Dimple Cooling Jacket

Side Manway & door

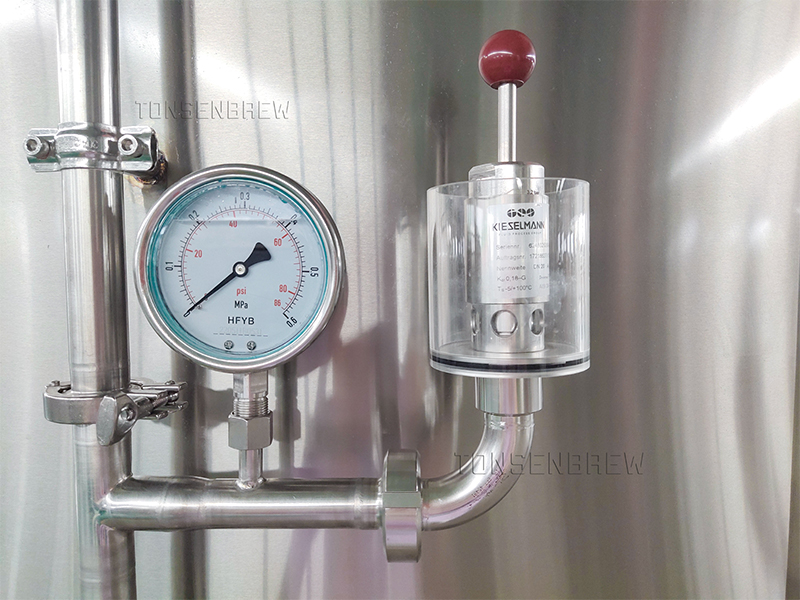

CIP Ball, PVRV(Safety valve),Carbonation Stone, Pressure Gauge Hydraulic shock type, Liquid Indicator with scale Thermowell without dead corner

Glycol water inlet & outlet

Adjustable Foot Pad 4 PCS

Other configurations Negotiable for option


*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.


Heating Methods: Electric, Steam, Gas fired
Vessels: 2/3/4/5 Vessels;
Regular: MLT+BKW+HLT


Plate Heat Exchanger
Motor: CE/UL Listed
Pumps: CE/UL Listed


Oxygenator
Working Platform
Brewhouse Pipelines and Valves


Optional:
Grist Case
Wort Buffer Tank
Hop Back
Platform with Sink
Flowmeter


*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.


*Tonsen Bright beer tank/Serving Tank:

Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL
Type: veritical type, easy cleaning; horizontal type, space saving
Design pressure: 0.3Mpa
Working pressure: 0.2Mpa
Materials: 304 Stainless Steel/316 Stainless Steel Option
Control System, CIP arm and 360° spary ball
5000L 50HL Side Manhole Jacketed SS Double Wall Brite Beer Tank for Sale


Brewery Equipment RequestComponents
Milling systemMalt Miller
Brewhouse SystemMash/Lauter/Boiler/Whirlpool Tank/Hot water tank
Wort pump
Heat exchanger
Steam boiler (optional)
Platform and Other accessories are matched
Fermenting systemFermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers
Cooling systemChiller and Glycol water tank (Ice water tank, cold water tank)
CIP SystemSterilization tank & Alkali liquor tank & CIP pump
Control systemPID or PLC (SIEMENS program) as option
Packing systemBottling/canning/kegging machine
Trade TermEXW, FOB, CRF, CIF
Payment TermT/T in advance

Output/Brew5HL8HL10HL15HL20HL25HL30HL35HL50HL
Brew/Week2~6
Output/Week10~30HL16~48HL20~60HL30~90HL40~120HL150~300HL180~360HL210~420HL240~360HL
Area Request<45㎡<60㎡<70㎡<90㎡<120㎡<140㎡<150㎡<180㎡<150㎡
Brew master111-21-22-32-33-53-53-5
MaterialInterior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper
HeatingElectric/Steam/Direct fire for optional
Voltage3 phase/380(220, 415,440...)v/50 (60)Hz

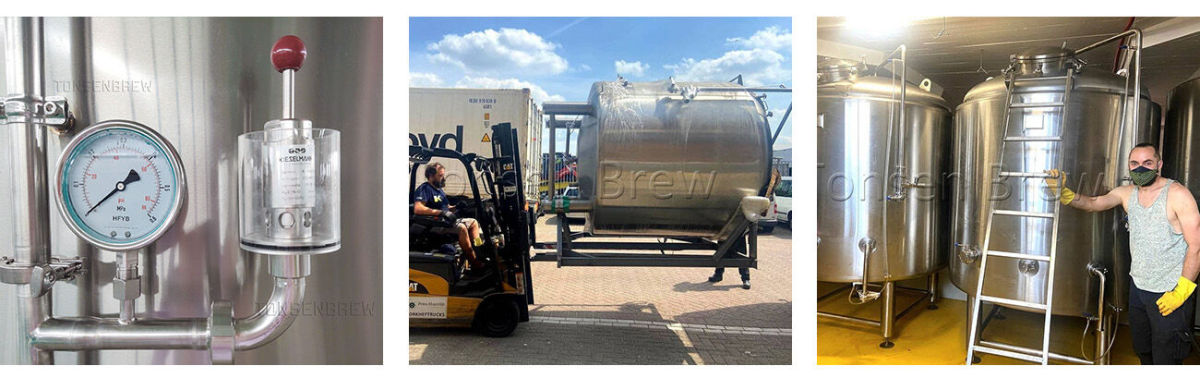

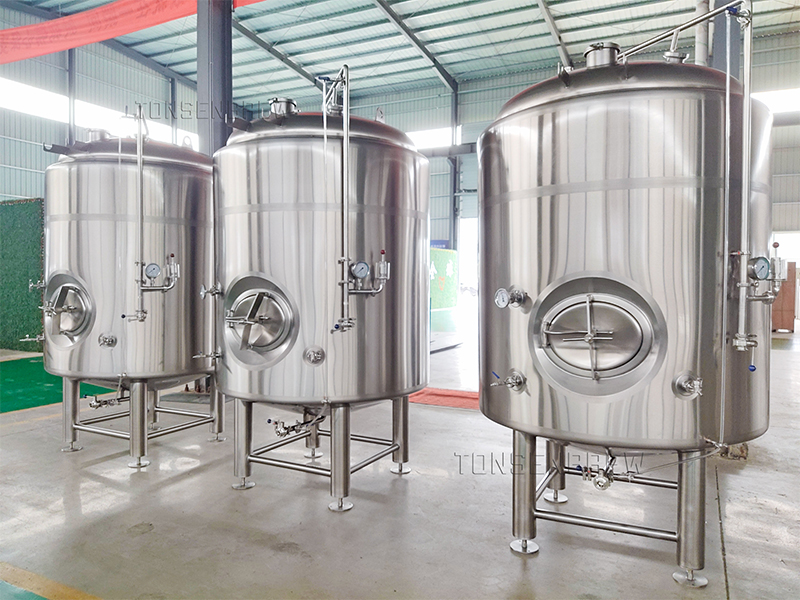

3000L Bright Beer Tank.jpg
