• Bright Beer Tank

- Product Description -

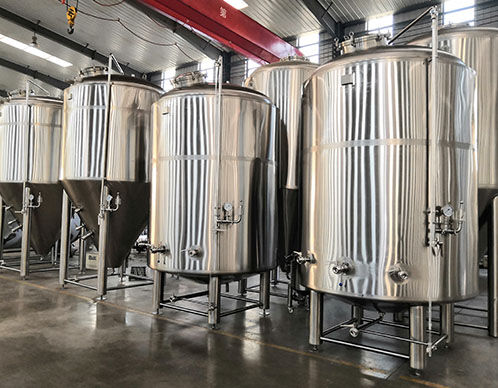

5000L Bright beer tank/Serving Tank
Function: Beer maturation / conditioning / serving / filtered beer receiving
The bright tanks are tanks for storing live beer. After the beer is fermented and matured, the yeast and another turbidity in the fermentation broth need to be filtered to make the beer clear and bright. After the fermentation broth is filtered, it is called "bright beer". Let the packaging department bottling into beer finished products. We know that bright beer tank is the last vessel that beer comes in contact with to become a beer that is perfectly matured, clarified and ready to be packaged and served.
Depending on their application , the beer serving tanks can be glycol jacketed or can be located in a cold room.
For brewpubs serving is often done by pumping or pressurizing the beer toward the serving location.
In most breweries, the beer will be filtered after leaving the larger container and sent into bright tanks. If you want to force carbonation of bright beer, the beer can be carbonated in a fermentation tank or storage tank. In this case, the beer should be completely filled with carbonic acid to reach the bright tank.
The 3000L bright beer tank is usually used for beer maturation, secondary fermentation, beer storage, beer filling, addition & mixture of other spices, beer carbonation and beer serving etc.
As a mature brewery, brite beer tank tanks are essential.
Bright beer tanks are often also called serving tanks, clear beer tanks (=CBTs), bright beer tanks (=BBTs), maturation or conditioning tanks.

Our 5000L 50HL side manhole jacketed SS double wall Brite Beer Tanks are actually and made according to the principle of beer brewing technology.
Useful Volume: 5000 liters
Total Volume: 6250 liters
Working Pressure: 2bar (30psi)
Thickness(mm):Interior Shell=3, Exterior Shell=2
100% TIG welding
Interior Finish: Pickled and Passivated
Exterior Finish: Oil brushed ,2B, 8K mirror finish or red copper
Interior Full polished: 0.2~0.4 μm
Insulation: 80mm~100mm PU(PolyUrethane)
Dimple Cooling Jacket
Side Manway & door
CIP Ball, PVRV(Safety valve),Carbonation Stone, Pressure Gauge Hydraulic shock type, Liquid Indicator with scale Thermowell without dead corner
Glycol water inlet & outlet
Adjustable Foot Pad 4 PCS
Other configurations Negotiable for option

*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.
Heating Methods: Electric, Steam, Gas fired
Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT

Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed

Oxygenator

Working Platform

Brewhouse Pipelines and Valves

Optional:

Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter


*Tonsen Fermenting system:
according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).
The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.


*Tonsen Bright beer tank/Serving Tank:
Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL

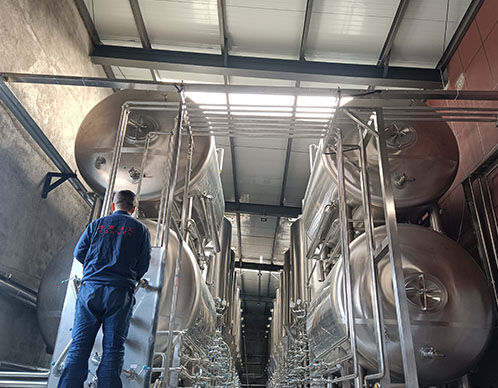

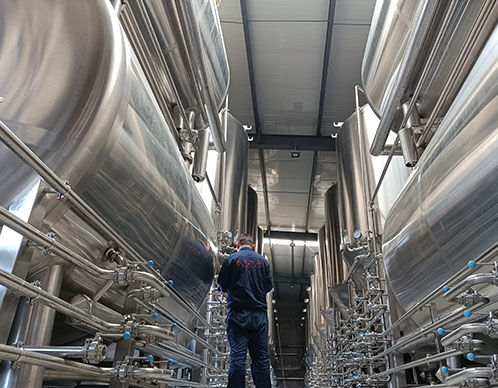

Type: veritical type, easy cleaning; horizontal type, space saving

Design pressure: 0.3Mpa

Working pressure: 0.2Mpa

Materials: 304 Stainless Steel/316 Stainless Steel Option

Control System, CIP arm and 360° spary ball

5000L 50HL Side Manhole Jacketed SS Double Wall Brite Beer Tank for Sale



Brewery Equipment RequestComponents
Milling systemMalt Miller
Brewhouse SystemMash/Lauter/Boiler/Whirlpool Tank/Hot water tank
Wort pump
Heat exchanger
Steam boiler (optional)
Platform and Other accessories are matched
Fermenting systemFermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers
Cooling systemChiller and Glycol water tank (Ice water tank, cold water tank)
CIP SystemSterilization tank & Alkali liquor tank & CIP pump
Control systemPID or PLC (SIEMENS program) as option
Packing systemBottling/canning/kegging machine
Trade TermEXW, FOB, CRF, CIF
Payment TermT/T in advance


Output/Brew5HL8HL10HL15HL20HL25HL30HL35HL50HL
Brew/Week2~6
Output/Week10~30HL16~48HL20~60HL30~90HL40~120HL150~300HL180~360HL210~420HL240~360HL
Area Request<45㎡<60㎡<70㎡<90㎡<120㎡<140㎡<150㎡<180㎡<150㎡
Brew master111-21-22-32-33-53-53-5
MaterialInterior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper
HeatingElectric/Steam/Direct fire for optional
Voltage3 phase/380(220, 415,440...)v/50 (60)Hz
