• Large Brewery Fermentation Tank

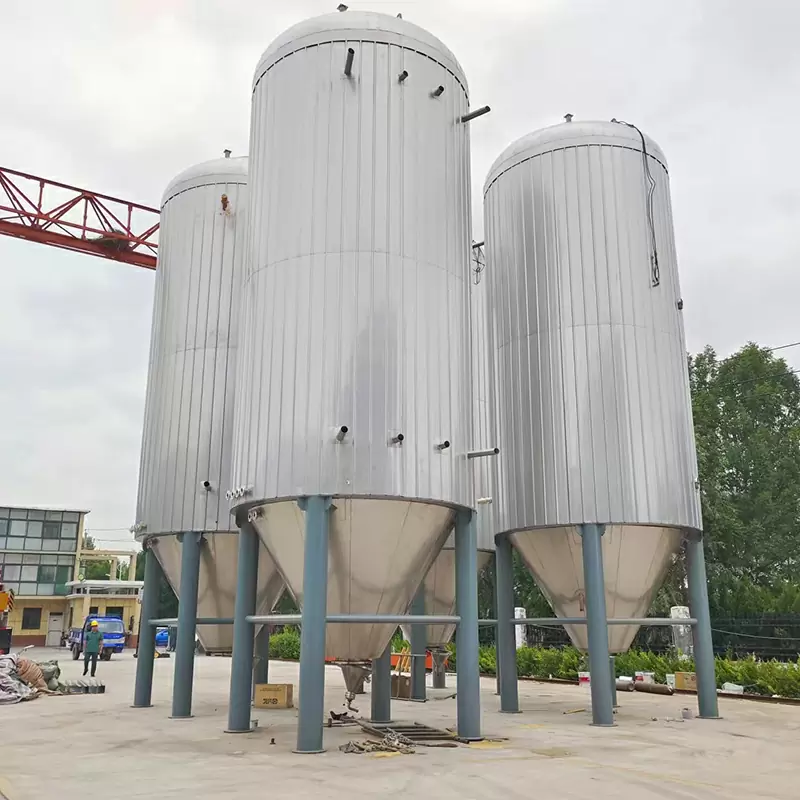

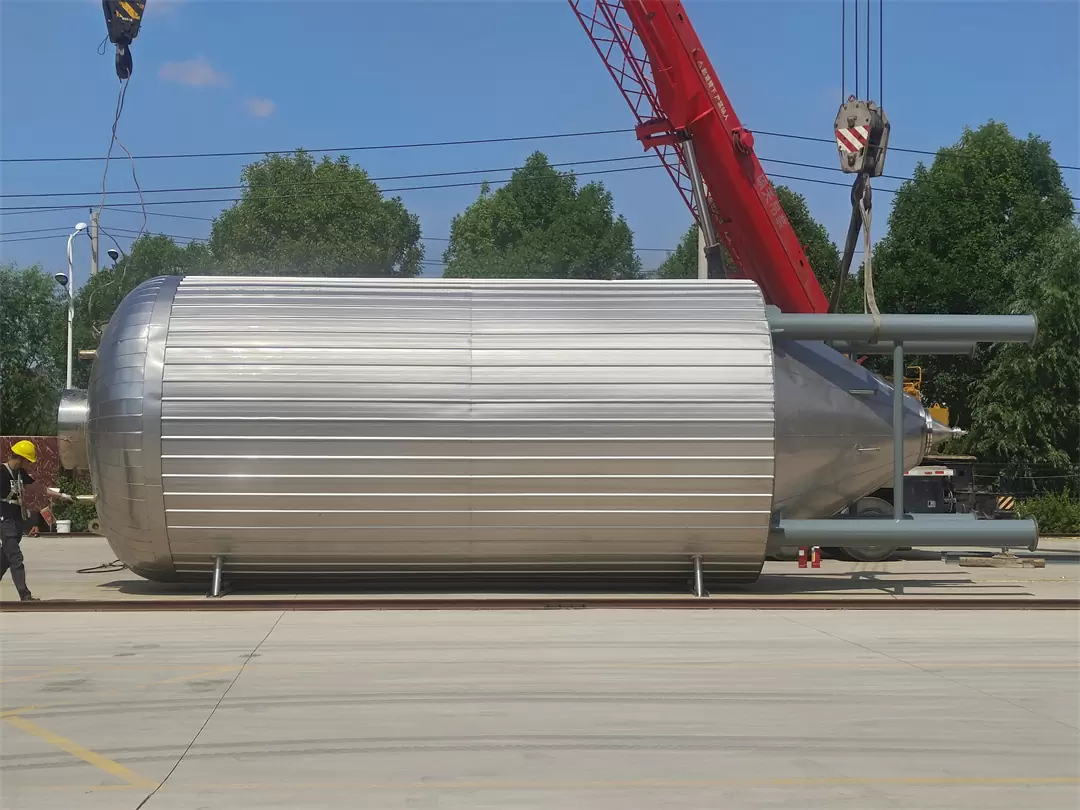

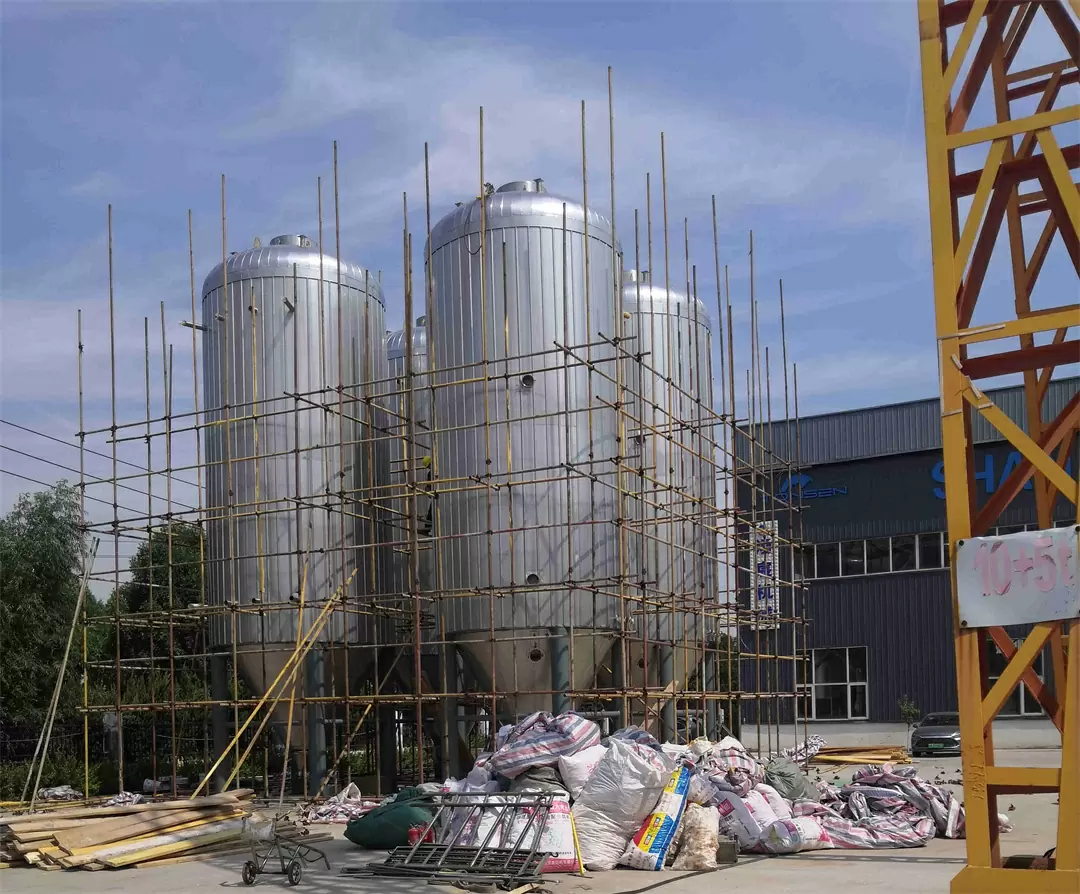

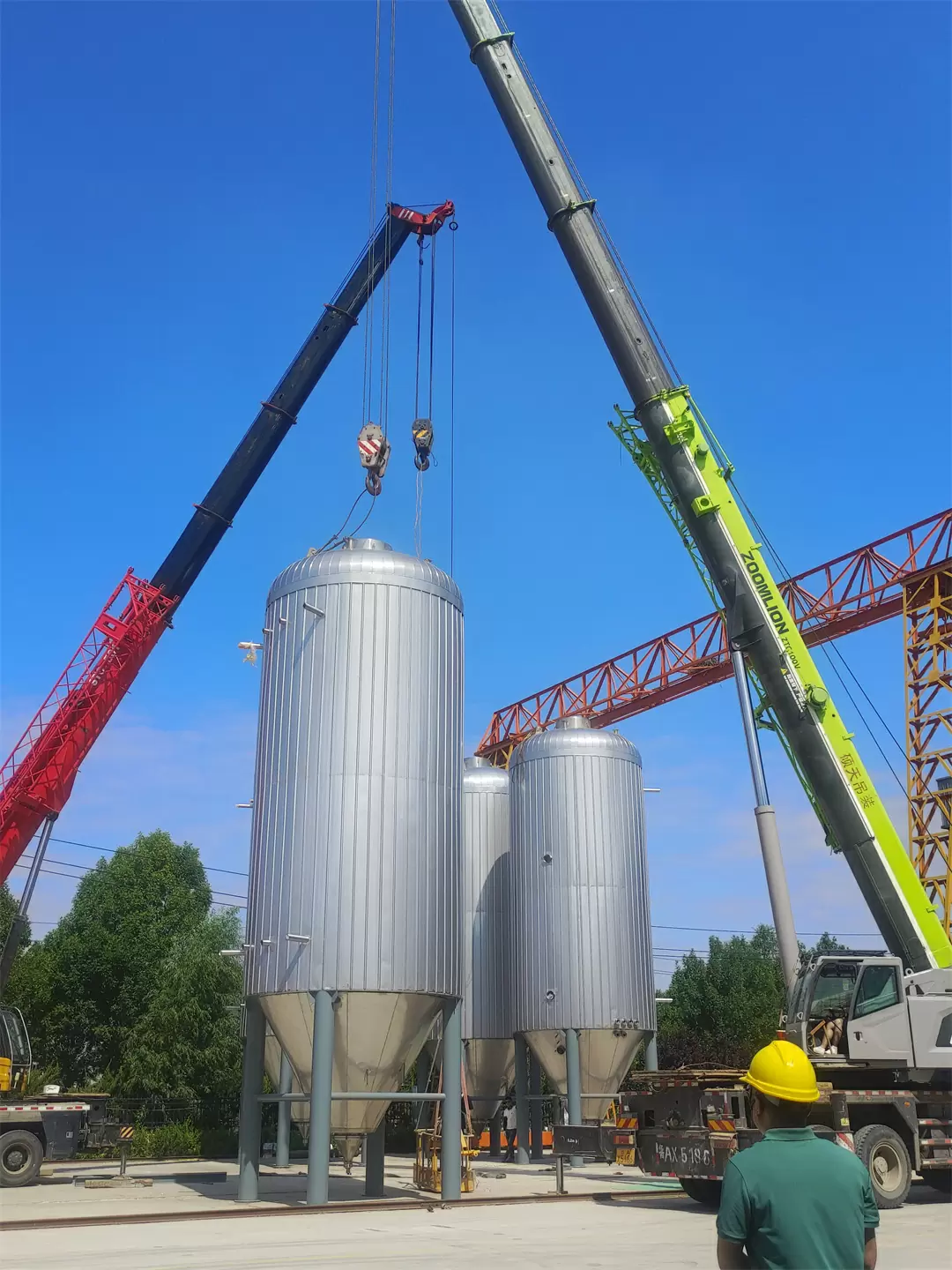

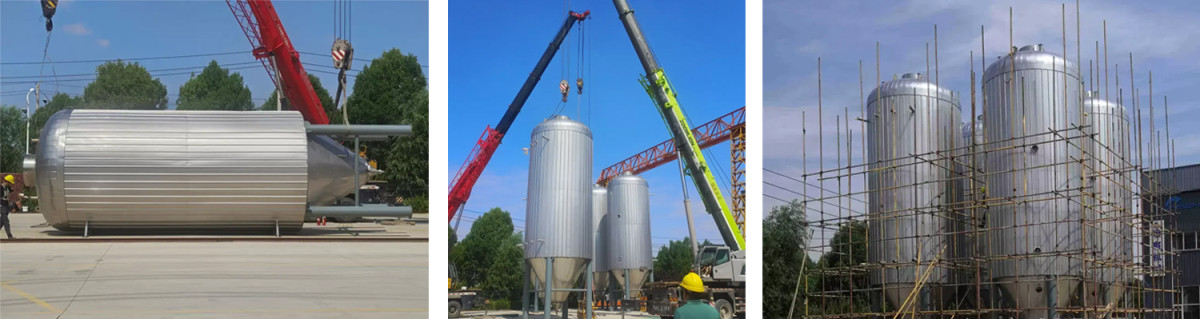

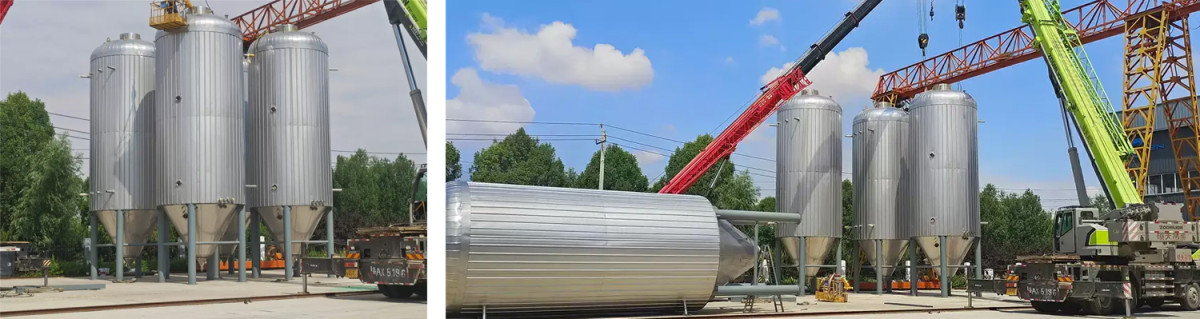

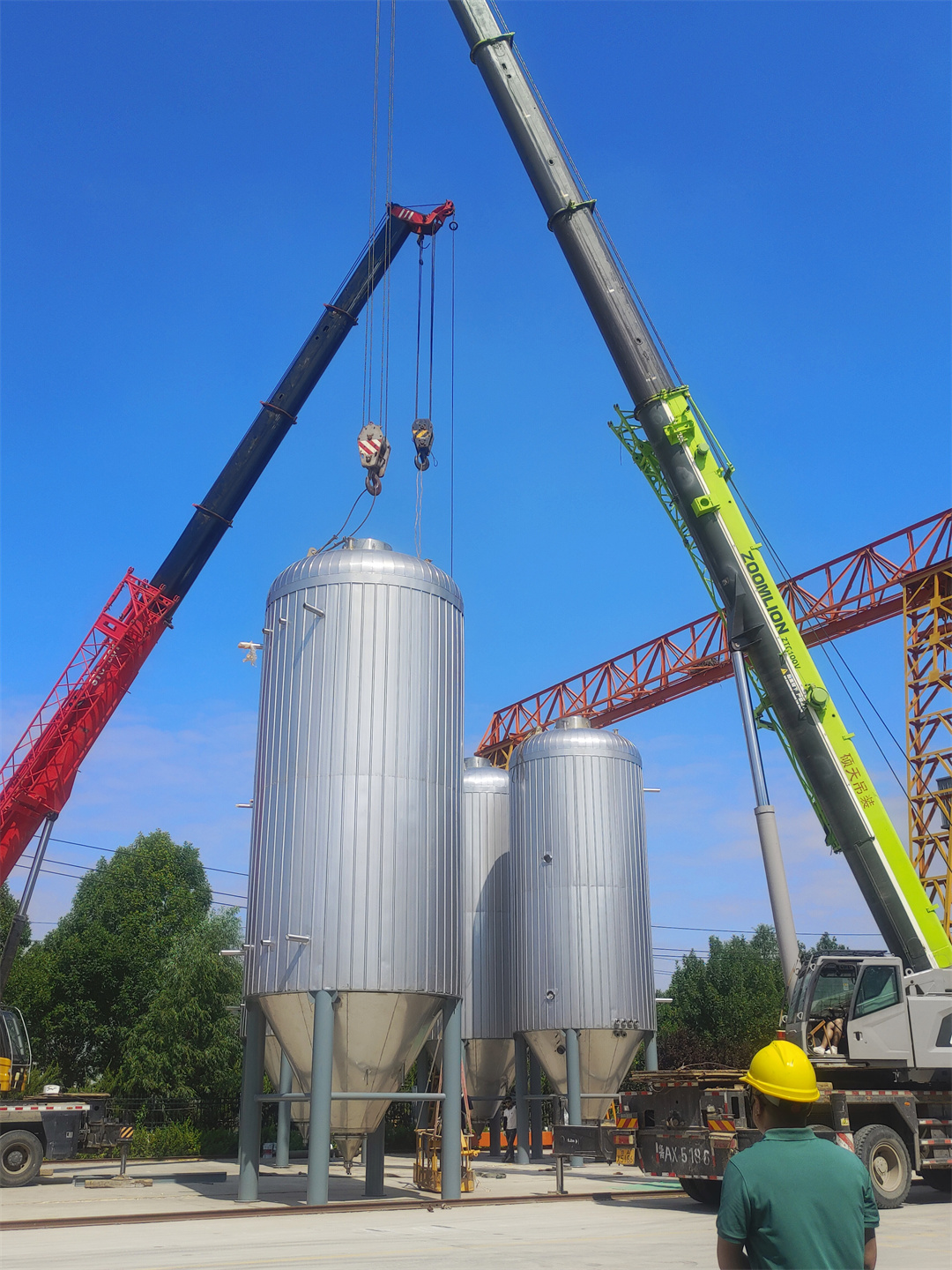

640HL fermentation tanks
64000L 640HL high quality SUS304 glycol jacket pressured conical cylindral fermenters with cooling jacket.
If you need any brewery equipment, Brewing house, fermenters, Beer kegs, beer filling machines, Millers, and other auxiliary beer equipment.
Why choose us?
(1). 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China.
(2). The cooling efficiency of Maitreya plate jacket is greatly improved.
(3). Two stage cooling mode.
(4). The insulation layer material is high-grade polyurethane with a thickness of 100mm.
(5). Polishing accuracy up to Ra0.4μ m .
(6). Strict tank pressure test.
(7). Energy conservation and pollution emissions.
Tel: +8618660395833
E-mail:info@tonsenbrew.com
Contact us

- Product Description -

64000L  640HL  high quality SUS304 glycol jacket pressured  conical cylindral fermenters with cooling jacket.

If you need any brewery equipment, Brewing house, fermenters, Beer kegs, beer filling machines, Millers, and other auxiliary beer equipment.

Design pressure 45 psi (3bar); working pressure 15psi (1bar)

4 stainless steel legs with leveling footpads

Interior shell: 304 stainless steel, thickness 3mm

Exterior shell: 304 stainless steel, thickness 2mm

Interior and exterior finish bright polish to 0.2~0.4 μm, hygiene surface

All Interior welds ground to a smooth0.2~0.4 μm sanitary finish

Flanged and dished head top and bottom

20% headspace unless a different volume is requested

Combined drain extensions and beer port are standard

Top manway or side manway door

Dual zone in sidewall and bottom dimple cooling jacket with glycol inlet and outlet

Polyurethane insulation thickness 80mm for cooling jacket on side and bottom

Non welding CIP arm and rotating 360 degree reach spray ball

Carbonation system with micron stone

Solenoid valve, pressure relief valve (safe valve) are standard.

Pressure gauge

Temperature sensor well

All clamps and gaskets to attach all accessories

Tank complete with piping, fittings, sanitary valves and all parts.


ModelTONSEN-640HL,TONSEN-64000L
PRODUCTFermentation System
Useful capacity64000L
ThicknessInner (SUS304)thickness: 3.0mm;
External-Jacket(SUS304) thickness: 2.0mm
MaterialStainless steel 304
Cooling wayDimple jacket plate
Cleaning wayCIP in situ cleaning, with rotary spray cleaning ball
InsulationPolyurethane-thickness: 100mm
AccessoriesSample valve, Pressure gauge, Breath valve, Temperature gauge,
Top manhole, Washing ball, Butterfly valves, CIP Arm, Hop port, Discharge arm and so on.



Applicable Industries
Hotels, Food & Beverage Factory, Farms, Restaurant, Food Shop, Food & Beverage Shops, Advertising Company


Showroom Location
Canada, United States, Italy, France, Germany, Peru, India, Mexico, Russia, Spain, Thailand, Argentina, South Korea, Chile, South Africa, Kazakhstan, Ukraine, Uzbekistan, Tajikistan, Australia


Place of Origin
Shandong, China


Weight
2000 KG


Warranty
3 years


Machinery Capacity
1000L, 1200L, 1500L, 1800L, 2000L, 3000L, 4000L, 5000L


Machinery Test Report
Not Available


Warranty of core components
3 years


Core Components
Pump, Pressure vessel, PLC


Key Selling Points
High Productivity


Marketing Type
Other


Video outgoing-inspection
Provided


Processing
Fermenting Equipment


Condition
New


Brand Name
Tonsen


Processing Types
Beer


Voltage
3P 380V/ 1P 220V (Other optional)


Power
15-70Kw Depends


Dimension(L*W*H)
Capacity Request


Name
64000L Turnkey Beer Brewing System Brewery Brewing Equipment


Material
SUS304/SUS316/Red copper


Heating method
Steam/Electric/Direct fire


Control system
Manual/Semi-automatic


Cooling way
Dimple Plate Cooling Jacket


Plate type
Mirror polishing/2B/wire Drawing


Insulation
Polyurethane/rockwool


After-sales Service Provided
Field installation, commissioning and training


Certification
CE, ISO

Why choose us?

(1). 304 stainless steel plate as a whole, and our stainless steel plate manufacturer is the best in China.
(2). The cooling efficiency of Maitreya plate jacket is greatly improved.
(3). Two stage cooling mode.
(4). The insulation layer material is high-grade polyurethane with a thickness of 100mm.
(5). Polishing accuracy up to Ra0.4μ m .
(6). Strict tank pressure test.
(7). Energy conservation and pollution emissions.
