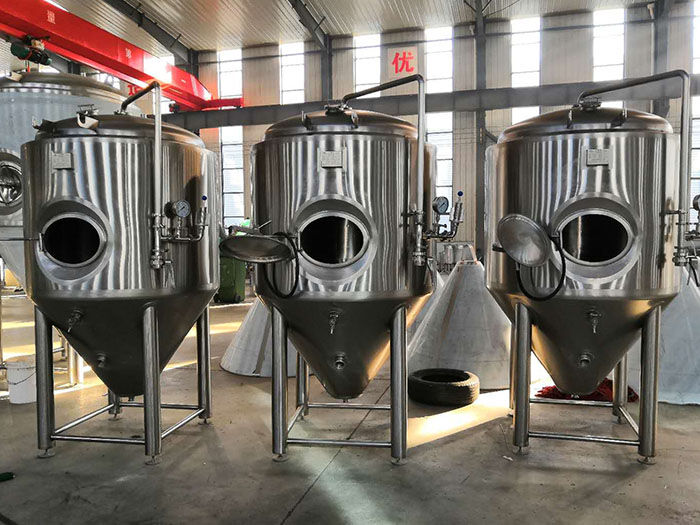

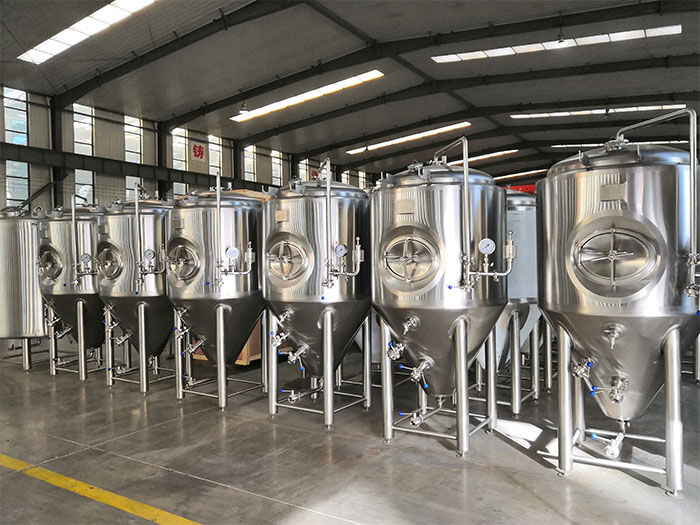

500L Fermentation Tank
Brand:Tonsen
Location: China
Payment : T/T,L/C ,Credit Cards & Alipay,Paypal
Production:Available in stock or customized
Shipping: Fastest delivery
Fermentation tanks are specialized vessels used to ferment liquids, crucial in brewing, winemaking, and biochemical industries. They control temperature, pressure, and sanitation, enhancing product consistency and quality. Commonly made of stainless steel, they come in various sizes and designs for specific applications .
Official Email: info@tonsenbrew.com
Tel: +8618660395833
WhatsApp:+86 15965317010
Message

- Product Description -


FEATURES

Our tanks are designed to promote optimal fermentation and/or carbonation.


  • Made of stainless food steel DIN 1.4301 (AISI 304)

  • Standardized dimensions and equipment, or according to individual customer requirements

  • Classic design, PUR insulation, double stainless steel jacket, water (or glycol) cooling duplicators

  • Accurate temperature control and reliable CIP are requirements to ensure a quality finished product

  • Fermenters offered with side rotating racking arms or standpipe design plus hop ports.

  • An extra tri-clamp fitting can be added for a carbonation stone if desired.

  • Cone angles can be changed to suit customer requirements.

  • Adjustable pressure valve for controlled fermentation – Overpressure setting mechanism with a glycerine manometer

  • PUR insulation – polyurethane insulation with thickness according to the size of the tank and the target environment

  • Guaranteed inner surface roughness : Ra < 0.8 μm or less (grinded surfaces) / Ra < 0.5 μm or less (polished surfaces), according to customer´s requirement

  • Service door (manhole) on the top cone or on cylinder part, according to customer requirements

  • Pure-beverage output armature with a butterfly valve for pure beverage (beer, wine, cider) output

  • Sample valve – cleanable and sanitizable sampling cock for collection product samples

  • Safety valve – double-acting overpressure and vaccum protection safety valve

  • Venting valve – Dedicated venting valve for safety draining of the tank and for accurate measuring of current pressure in the tank using manometer (it ensures properly function of the manometer when the shower ball shower is blocked with a foam)

  • Thermometer socket – welded socket for inserting of thermosensor or thermometer

  • Manometer – It is included in the set of the adjustable pressure valve. Made of stainless steel, with glycerine inside.

  • Filling level indicator – Sanitizable glass or plastic pipe for visualisation height level of the beverage product in the tank


PARAMETERS

ModelTS-500L
CapacityUseful capacity: 500L;Gross capacity: 670L
MaterialSUS304
ApplicationRestaurant, bar, hotel, brewery
Out sizeØ1060*2400mm
Cooling methodJacket section cooling
ThicknessInner: 3.0mm; External: 2.5mm
OutriggerØ102mm*4
Test pressure0.2Mpa
Working pressure0.09Mpa
Heat exchange area1.8m2
Weight300kg


MODELS & SPECS

ItemProduction capacityVolume in US GallonHeating areaTank diameterHeight
TS-500500L/day132 US Gallon1.8m21160mm2300mm
TS-5BBL5BBL/day155 US Gallon1.9m21200mm2350mm
TS-600600L/day158 US Gallon2.0m21220mm2350mm
TS-700700L/day185 US Gallon2.4m21260mm2380mm
TS-800800L/day212 US Gallon2.5m21260mm2400mm
TS-7BBL7BBL/day216 US Gallon2.5m21280mm2450mm
TS-10001000L/day264 US Gallon2.6m21360mm2500mm
TS-10BBL10BBL/day310 US Gallon2.8m21460mm2700mm
TS-15001500L/day396 US Gallon3.2m21520mm2900mm
TS-20002000L/day528 US Gallon3.6m21560mm2850mm
TS-25002500L/day660 US Gallon3.8m21650mm3200mm
TS-30003000L/day792 US Gallon4.5m21760mm3800mm
TS-40004000L/day1057 US Gallon4.9m21900mm4100mm
TS-50005000L/day1320 US Gallon7.2m21960mm4400mm
