• Filling System

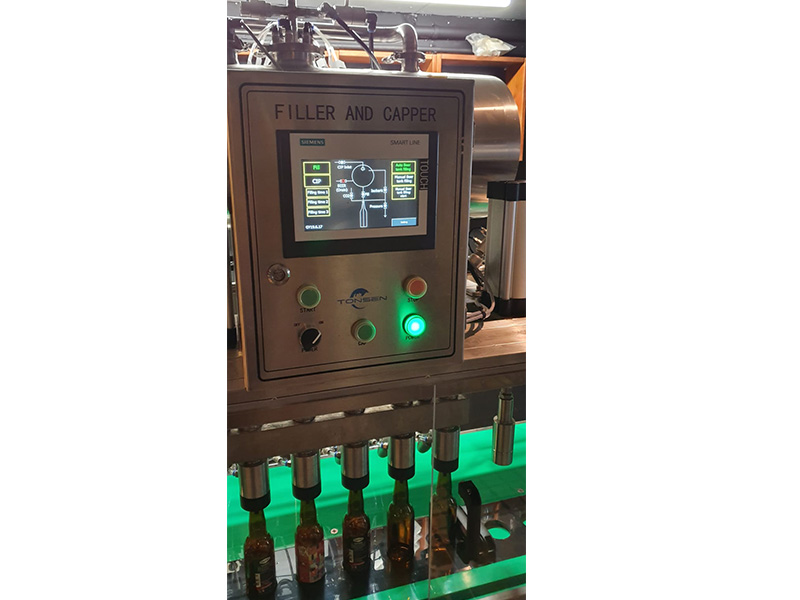

Bottle filling capping machine
1,Automatic control by PLC, all parameters can be adjusted.
2,Filling and capping process can be finished in this machine at one time.
3,With CO2 pressurization and could add vacuum.
4,Adopt isobar filling method and with unique pressure maintaining system,performance stable and reliable, beer loss minimum.
5,With pressure compensator, to guarantee a stable filling process.
Tel: +8618660395833
E-mail: candy@tonsenbrew.com
Contact us

- Product Description -

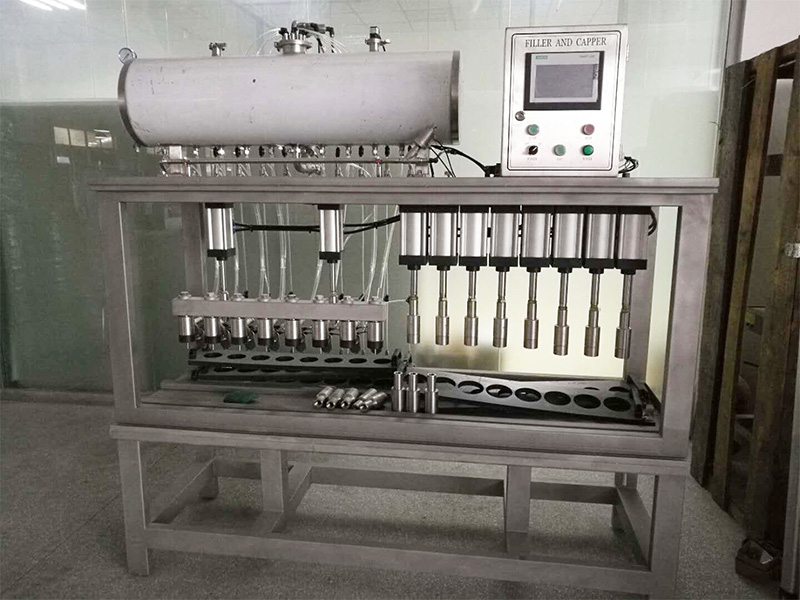

Small Beer Bottle Filling Capping Machine Main Technical Parameters


Dimensions1800*800*2200mm
Net Weight300KG
Capacity300-600 bottles/Hr
Applicable Bottles330ml-2L
Stations4-10
Power SupplyAC 220V  50HZ (customized)

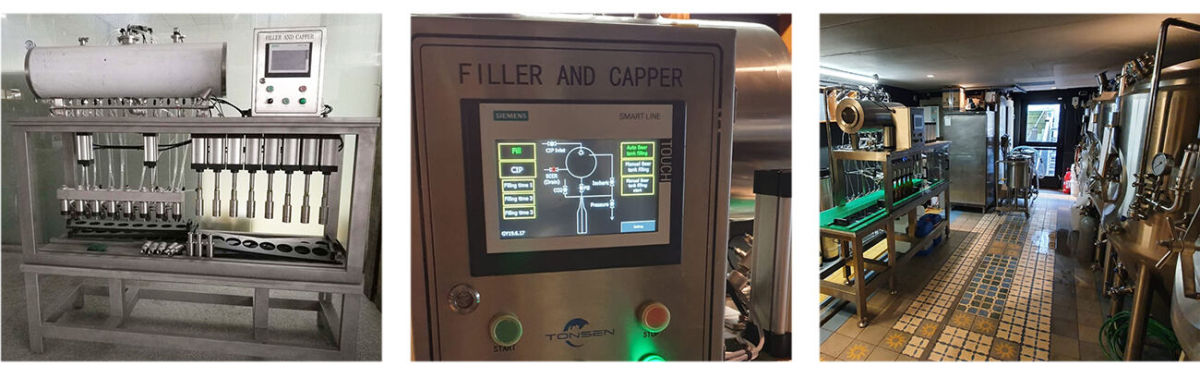

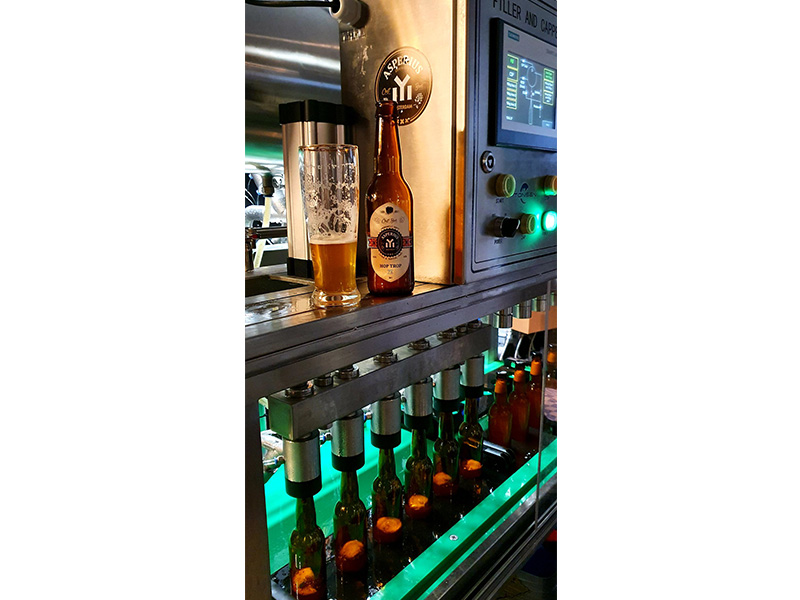

Bottle filling capping machine.jpg


Main function and feature

1,Automatic control by PLC, all parameters can be adjusted.

2,Filling and capping process can be finished in this machine at one time.

3,With CO2 pressurization and could add vacuum.

4,Adopt isobar filling method and with unique pressure maintaining system,performance stable and reliable, beer loss minimum.

5,With pressure compensator, to guarantee a stable filling process.


Working process:

Fix the bottles-CO2 purge- isobaric-filling- pressure stabilization-pressure relief-stop-move the bottles to the capping stations--capping--take the bottle
Vacuum:Fix the bottles-purging-vacuumizing-isobaric-filling-pressure stabilization--pressure relief--stop--move the bottles to the capping stations--capping--take the bottle

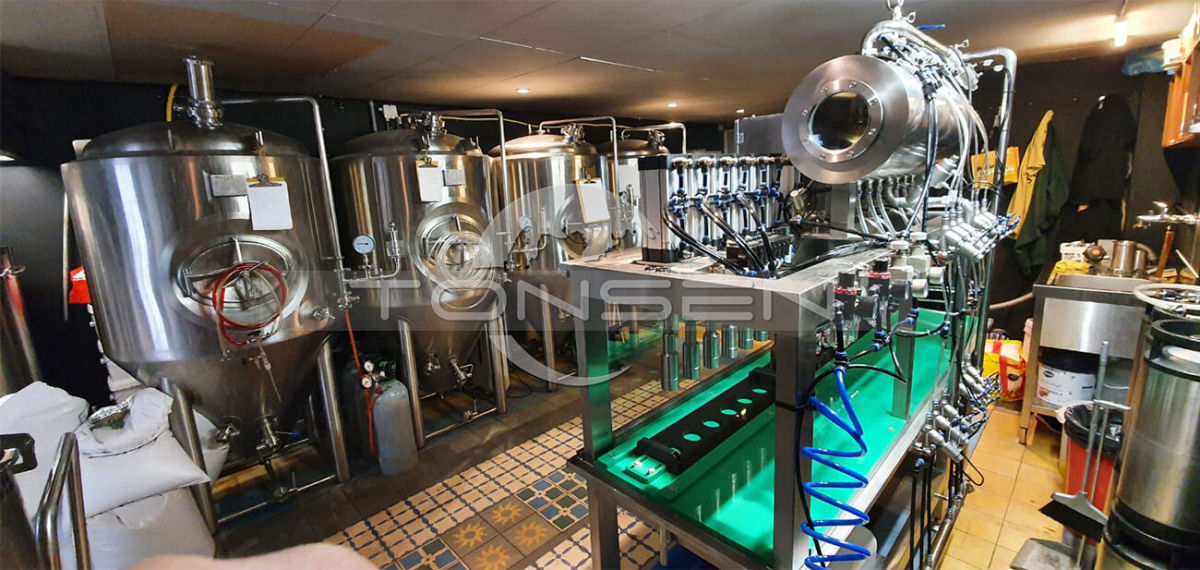

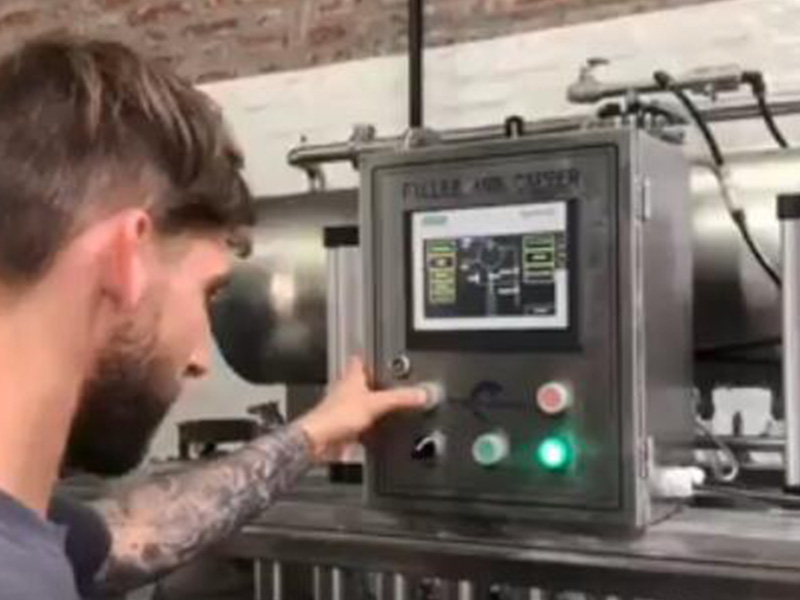

Bottle filling capping machine


*Tonsen Brewhouse System

Brewhouse is various in combinations of vessels, of course to achieve the same four steps mashing, lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity, sparging water, brews in certain time, brewing method etc. Tonsen accepts special design for these variations.


Heating Methods: Electric, Steam, Gas fired

Vessels: 2/3/4/5 Vessels;

Regular: MLT+BKW+HLT


Plate Heat Exchanger

Motor: CE/UL Listed

Pumps: CE/UL Listed


Oxygenator

Working Platform

Brewhouse Pipelines and Valves


Optional:

Grist Case

Wort Buffer Tank

Hop Back

Platform with Sink

Flowmeter


*Tonsen Fermenting system:

according to our standard configuration, the complete beer brewing equipment with 6pcs two batches beer fermentation tanks or with 12 pcs one batch fermentation (based on 12 days fermenting period).

The inside and external of tanks are adopt international standards 304 stainless steel material, mirror polished up to ≤0.8um≤0.6um≤0.2um polishing quality standards, fully meet the PLC automatic cleaning and disinfection of the controlled system requirements. Cone 60° resist compression design, with sample valve, CIP arm, racking arm, pressure gauge, solenoid valve, safety valves and so on.

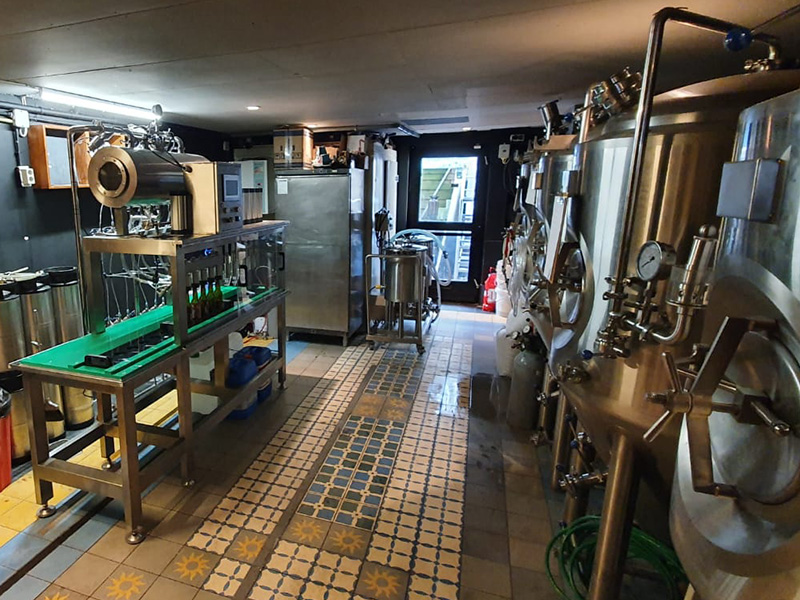

Bottle filling capping machine


*Tonsen Bright beer tank/Serving Tank:

Effective volume: 100L-10000L/1BBL~30BBL/1HL~100HL

Type: veritical type, easy cleaning; horizontal type, space saving

Design pressure: 0.3Mpa

Working pressure: 0.2Mpa

Materials: 304 Stainless Steel/316 Stainless Steel Option

Control System, CIP arm and 360° spary ball

5000L 50HL Side Manhole Jacketed SS Double Wall Brite Beer Tank for Sale


Brewery Equipment RequestComponents
Milling systemMalt Miller
Brewhouse SystemMash/Lauter/Boiler/Whirlpool Tank/Hot water tank
Wort pump
Heat exchanger
Steam boiler (optional)
Platform and Other accessories are matched
Fermenting systemFermenter tank and BBT (Bright beer tank) Grinded SS304 with 2 layers
Cooling systemChiller and Glycol water tank (Ice water tank, cold water tank)
CIP SystemSterilization tank & Alkali liquor tank & CIP pump
Control systemPID or PLC (SIEMENS program) as option
Packing systemBottling/canning/kegging machine
Trade TermEXW, FOB, CRF, CIF
Payment TermT/T in advance

Output/Brew5HL8HL10HL15HL20HL25HL30HL35HL50HL
Brew/Week2~6
Output/Week10~30HL16~48HL20~60HL30~90HL40~120HL150~300HL180~360HL210~420HL240~360HL
Area Request<45㎡<60㎡<70㎡<90㎡<120㎡<140㎡<150㎡<180㎡<150㎡
Brew master111-21-22-32-33-53-53-5
MaterialInterior Shell: SUS304; TH=3mm; Exterior Shell:SUS304; TH=2mm / red copper
HeatingElectric/Steam/Direct fire for optional
Voltage3 phase/380(220, 415,440...)v/50 (60)Hz
