• Micro Brewery For Beer Bar & Restaurant

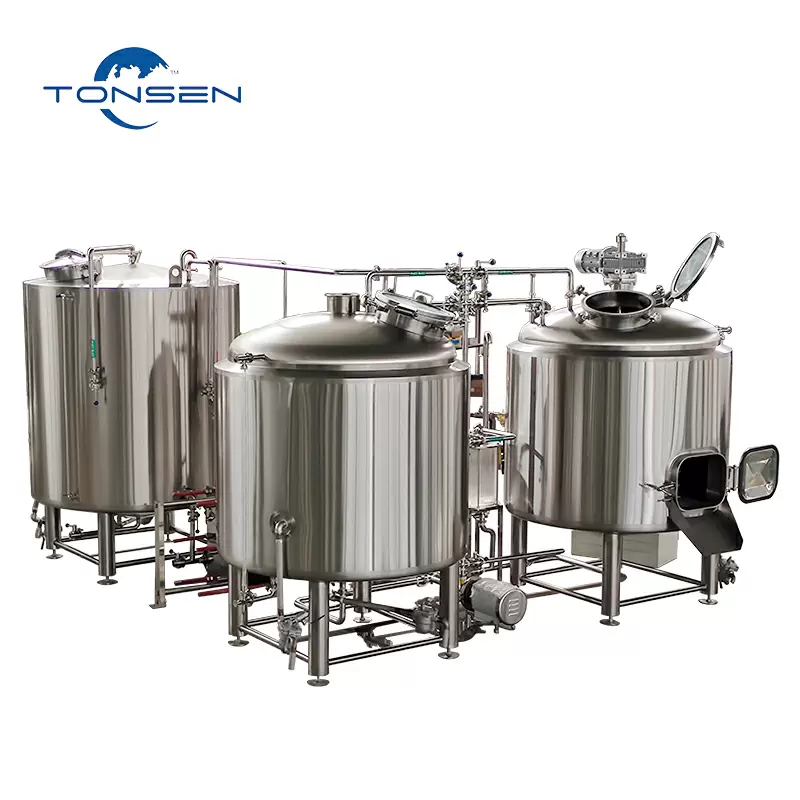

1000L Brewing System
(Take 1000L Automatic 3 Vessel Steam Heated System for Reference)
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination
Hot water tank and cold water tank for optional in special combinations
Infusion or decoction brewing methods are designed exactly.
Tel: +8618660395833
E-mail:info@tonsenbrew.com
Contact us

- Product Description -

Detailed specification List

NOEquipmentSpecificationQuantity
Brewhouse systemMalt miller Matching1
Mash tun & Boil kettle100L-1000L1
Lauter tun &whirlpool tank100L-1000L1
Plate heat exchanger1-15m2/h1
Pump1-5m3/h1
Fermentation systemFermentation tank300L -1000Loptional
Yeast adding tank1-100L1
Wort oxygenator3m3/h1
Cooling systemRefrigerator3HP-10HP1
Glycol water tank500L-2000L1
Pump for cool water tank1-5m3/h1
CIP Cleaning systemAlkali tank50L-100L1
Sterilization tank50L-100L1
Pump1-3m3/h1
Control systemDigital display controlling system/PLC control1


1.Milling System

1000L Brewing System.jpg

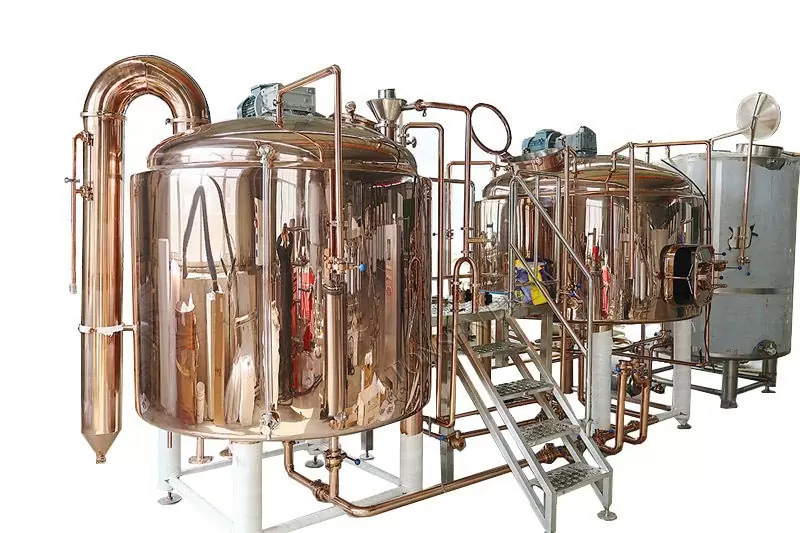

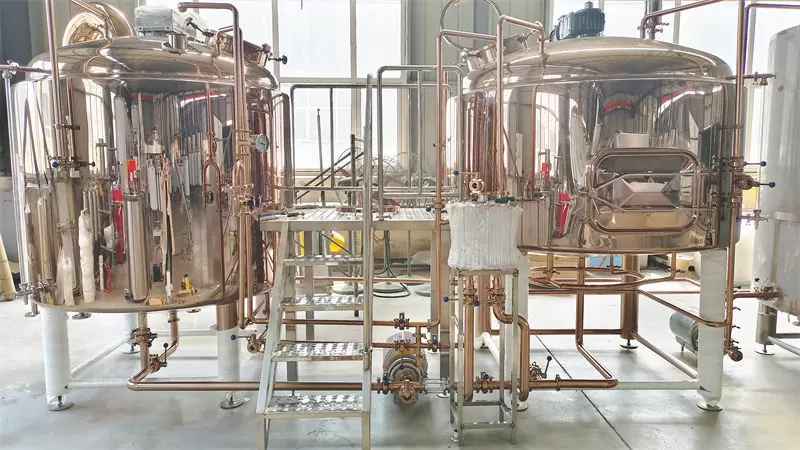

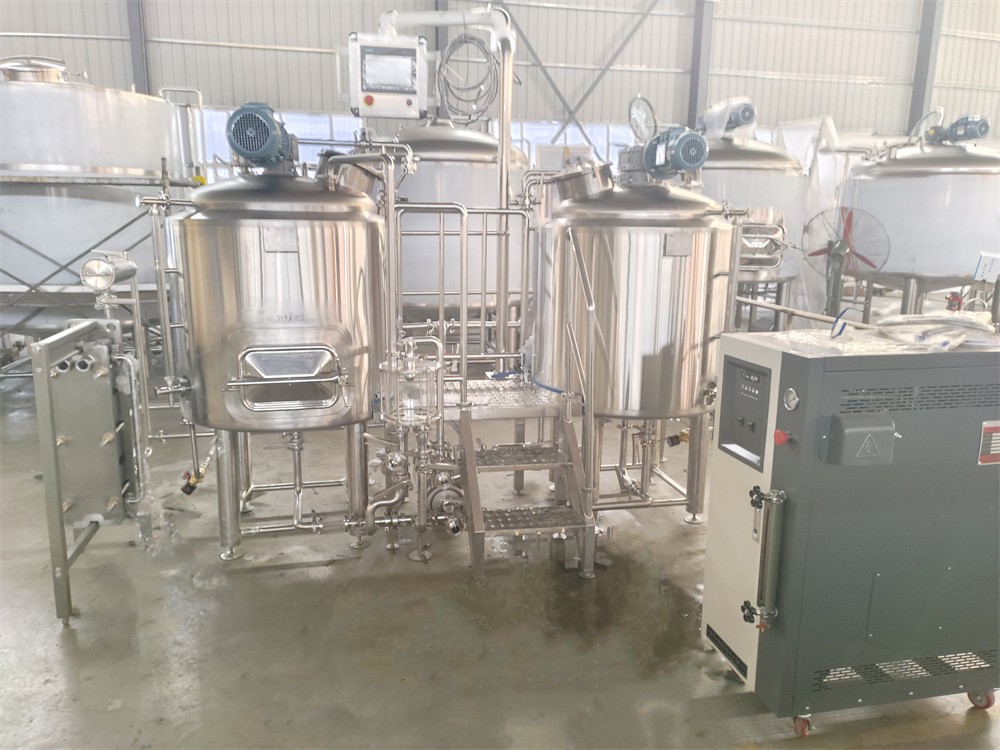

2.Micro Brewhouse System

(Take 1000L Automatic 3 Vessel Steam Heated System for Reference)
Mash tun, Lauter tun, Boiling Kettle, Whirlpool tun in various combination

Hot water tank and cold water tank for optional in special combinations

Infusion or decoction brewing methods are designed exactly.


3.Fermenting system

Standard stainless steel conical cylindrical fermentation tanks

•  Volume: 1HL to 100HL

•  Material: SUS304 or SUS316L, as per customer's requirement

•  Thickness: 3.00-4.00mm for inner tank, 1.5mm for dimple jacket, 2.00mm for outer shell, as per customer's requirement.

•  Construction: dish top, cylinder body and 60 degree cone bottom; single-layer or jacketed.

• If jacketed, it has dimple jacket and PU insulation, insulation thickness 50.00-100.00mm as per customer's requirement.

•  Polishing treatment: inner tank mirror polished, outer shell can be either mirror polished or matt polished.

•  Accessories: manway on side, yeast inlet, CIP spraying ball, CIP pipe, themowell, sample valve, spunding valve, pressure gauge, lifting ear, jacket inlet /outlet, outlet, brace for legs, adjustable feet.


4.Beer Bright Tank

Standard stainless steel tank for beer maturation and serving.

Single layer type, Horizontal type, stacked type are available.
Our Brite Tank available from 1HL to 100HL with an average 10% Head Space. All tank have a Dish top & bottom, Cylinder body. Certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. Dimple Plate jacket for Glycol cooling & high efficient Polyurethane foam insulated.  All tanks use Tri-clamp connections, are designed for up to 14.7 PSI and tested at 30 PSI.

We can custom fabricate any tank to meet your brewery’s space and height restrictions.


Standard Features:

•   Dish Cover at top & bottom, with an average of 10% head space

•   Dimple plate jacket for glycol cooling

•   Interior shell: 304 stainless steel, thickness 3mm /11 gauge

•   Cooling jacket: 304 stainless steel, thickness 2mm /14 gauge

•   Exterior shell: 304 stainless steel, thickness 2mm /14 gauge

•   2” Polyurethane insulation

•   Interior surface to finish pickled and passivated

•   Exterior surface to brushed, #4 finish Or Interior surface to polished to RA≤0.22μm Exterior surface adapts satin polish.

•  Side manway, shadowless

•  Accessories:Sample Valve x1;Pressure relief/vacuum valve x1; Temp. sensor / thermometer x1;Carbonation Stone x1; Bottom outlet with butterfly valve x1;Spraying Ball with down tube x1;Stainless pipe legs with adjustable foot pads x4.



5. Glycol Water Cooling system

Insulated glycol water tank with or without copper coil for glycol liquid holding and mixing.

Efficiency chillers or refrigerators with fryonto supply cooling energy.



6.Controlling system

Electrical controlling cabinet with temperature, on-off controlling for brewhouse.

Temperature controller, thermocouple, solenoid valves etc are included.

1000L Brewing System.jpg
