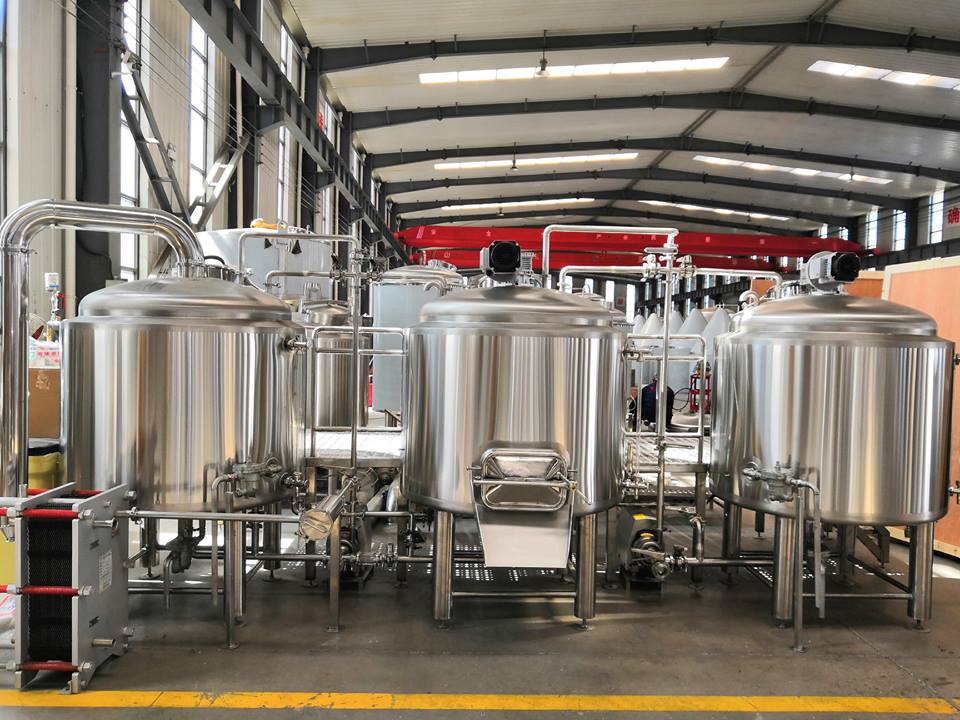

500L Brewing System
Brand:Tonsen
Location: China
Model:500L
Payment : T/T,L/C ,Credit Cards & Alipay,Paypal
Production:20-40 days depending on model and quantity
Shipping: Fastest delivery
* Official Email: info@tonsenbrew.com
Tel: +8618660395833
WhatsApp:+86-15650020960
Message

- Product Description -



FEATURES

  • We plan and design complete breweries, all systems can be designed with the client’s input for a defined process;

  • A variety of different vessel combinations and a number of vessels: multifunctional tanks (mash mixer – lauter, kettle – whirlpool), individual process tanks (mash mixer, lauter, boil kettle, whirlpool, hot/cold water tanks);

  • Fully piped and wired, including valves and sensors;

  • Integrated pump system;

  • CIP system: separated CIP for individual tanks to prevent cross product interference;

  • Master brew interface control system (touch screen control panel),

  • Staircases and platform combine the vessels in a compact unit, perforated and sectional construction of the walk-on surface ensures protection against slipping;

  • Automated lautering, automated water mixing

  • High quality insulation effect: Rock wool thickness: 80mm

  • Beautiful weld and polish: all argon gas protection welding. Polishing precision up to Ra0.6µm

  • World's top brands' electronic components: siemens PLC and touch screen, Schneider button of circuit breaker, Airtac electromagnetic valves and other pneumatic parts, etc.

  • Good abrasion resistance material: inner-Jacket(SUS304)thickness: 3.0mm; external-Jacket thickness: 2.0mm; seal head thickness: 3.0mm

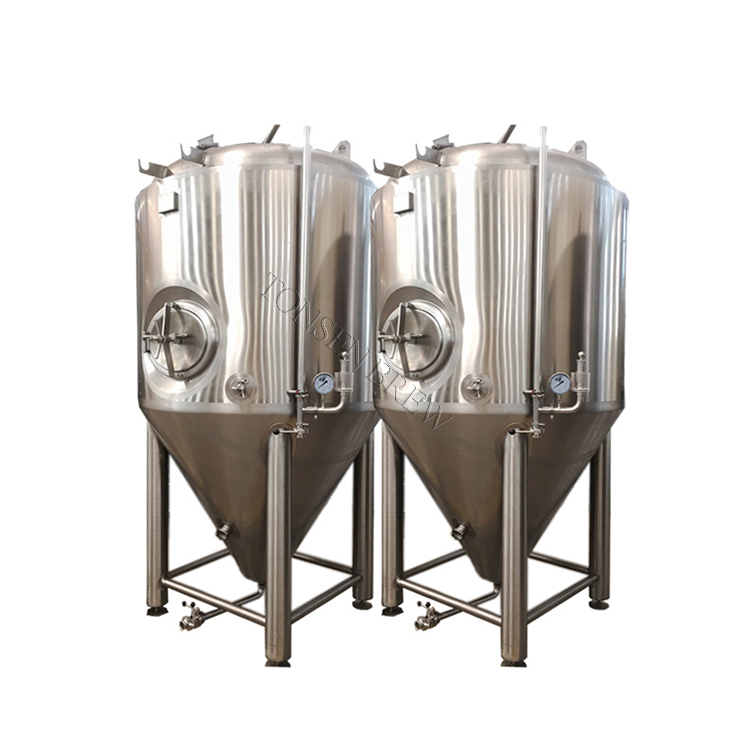

  • Fermentation Unit: standard stainless steel conical cylindrical fermentation tanks; tanks quantity is exactly calculated by fermentation cycle for various beers; all manhole, valves, pressure gauges, fittings etc are included

  • Bright Tank Unit: standard stainless steel bright tanks for beer maturation, conditioning, service, carbonation; tanks quantity is exactly calculated for various beers and the function; all manhole, valves, stone, gauges, fittings etc are included

  • Cooling Unit: insulated glycol water tank with or without copper coil for glycol liquid holding and mixing; efficiency chillers or refrigerators with fryonto supply cooling energy; sanitary centrifugal pump for glycol water recycle among tanks and heat exchanger; all pipes, fitting, insulation materials are included

  • Controlling Unit: electrical controlling cabinet with temperature, on-off controlling for brewhouse; electrical controlling cabinet with temperature, on-off controlling for cooling parts; temperature controller, thermocouple, solenoid valves etc are included; PLC with touch screen panel for special request


PARAMETERS

ModelTS-500
Capacity500L/Batch
MaterialSUS304
Combination methodMash/lauter tun, kettle/whirlpool tank
ApplicationRestaurants, bars, hotels, brewery
Heating waySteam heating/Electric heating/Direct fire heating
VoltageAC380/220V, 50/60HZ
Power18Kw
Water consumption3.5m3/T
Diameter1160mm
Height2500mm
Floor area5m2
Degree of automationSemi-automatic/Fully automatic


MODELS & SPECS

ItemProduction capacityVolume in US GallonHeating areaTank diameter Height
TS-500500L/day132 US Gallon0.5m21160mm2400mm
TS-600600L/day158 US Gallon0.6m21160mm2500mm
TS-700700L/day185 US Gallon0.7m21260mm2500mm
TS-800800L/day212 US Gallon0.8m21260mm2500mm
TS-10001000L/day264 US Gallon1.0m21360mm2800mm
TS-15001500L/day396 US Gallon1.5m21560mm2900mm
TS-20002000L/day528 US Gallon2.0m21960mm3150mm
TS-25002500L/day660 US Gallon2.5m21960mm3200mm
TS-30003000L/day792 US Gallon3.0m22060mm3800mm
TS-50005000L/day1320 US Gallon5.0m22260mm4400mm


Tonsen’s Services

  • Comprehensive Value and Quality:

Tonsen not only ensures that customers get value for their money, but also that the equipment they provide meets high quality standards.

  • Proper Equipment Sizing and Type:

We have a professional customization service that provides free, professional guidance on choosing the right size and type of equipment to meet your specific brewing needs.

  • Reliable Customer Service:

Tonsen has excellent customer service, including prompt responses to inquiries and ongoing support, which is unanimously recognized by customers.

  • One-Stop Service:

Tonsen offers a comprehensive service, including everything from initial consultation to installation and maintenance.

  • Installation Services:

We have years of experience professionally installing brewing equipment to ensure proper setup and operation.

  • Maintenance and After-Sales Support:

We will provide ongoing maintenance services and reliable after-sales support to ensure that there are no problems affecting customer use.


- Details -

Beer equipment system details.jpg

- Certificate -

Beer equipment certificate.jpg


- Customer Reviews -

Customer testimonials.jpg
